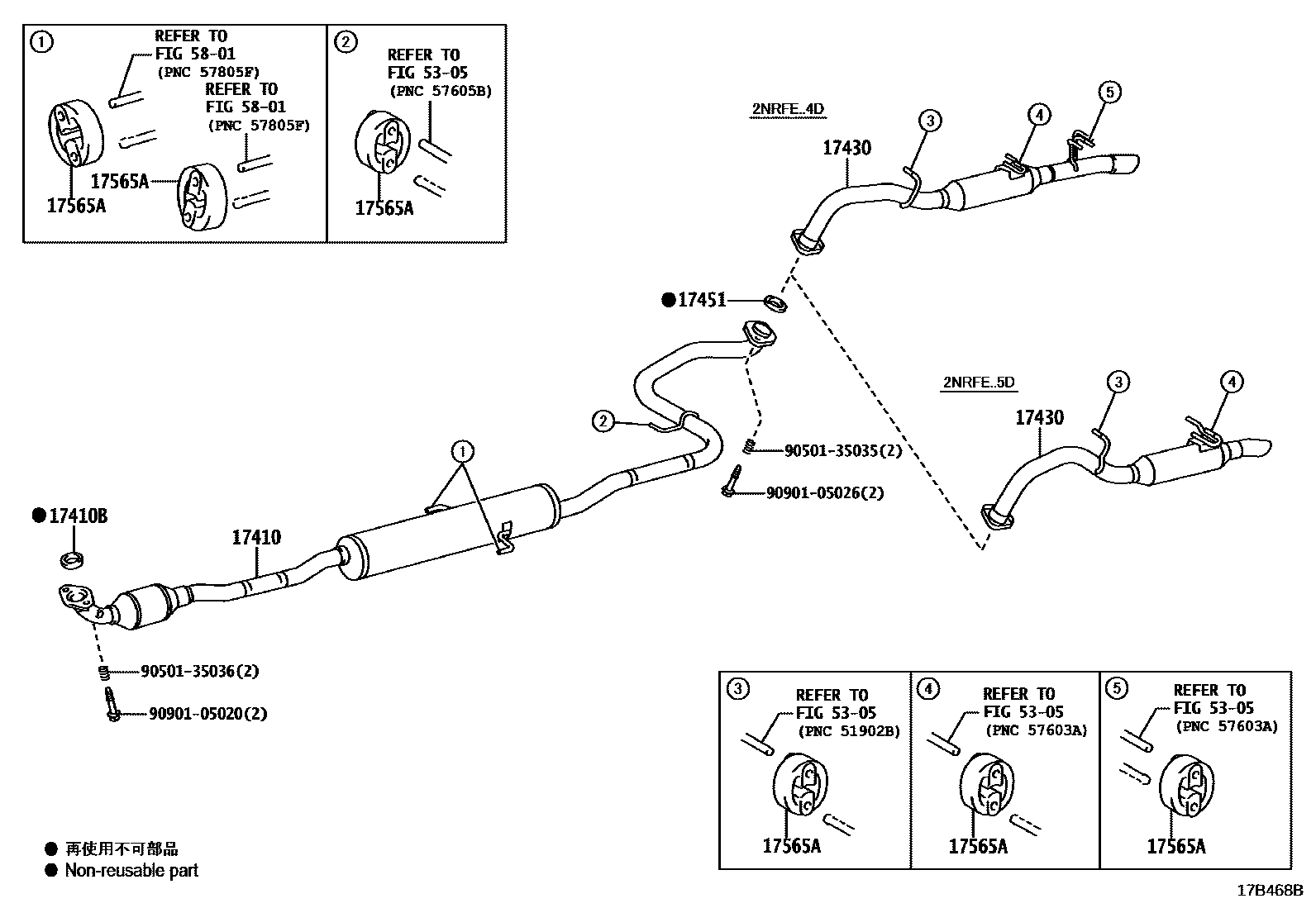

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Y501i2NRFE..NSP151..4D..(R,V)202101-202407

17410BGASKET, EXHAUST PIPE

main17451-0M020i2NRFE..NSP151..4D..(R,V)202101-202407

(L)

main17451-21070i2NRFE..NSP151..4D..(R,V)¥1,360202101-202407

(J)

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y230i2NRFE..NSP151..5D202101-202306

main17430-0Y291i2NRFE..NSP151..D202101-202407

17451GASKET, EXHAUST PIPE

main17451-23042i2NRFE..NSP151..5D¥790202101-202311

sub17451-23043¥720

main17451-23043i2NRFE..NSP151..D¥720202311-202407

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010i2NRFE..NSP151..5D¥320202101-202407

5305

5801

9050135035

main90501-35035¥200

9050135036

main90501-35036¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

11 parts on this diagram · 1 diagram in section
