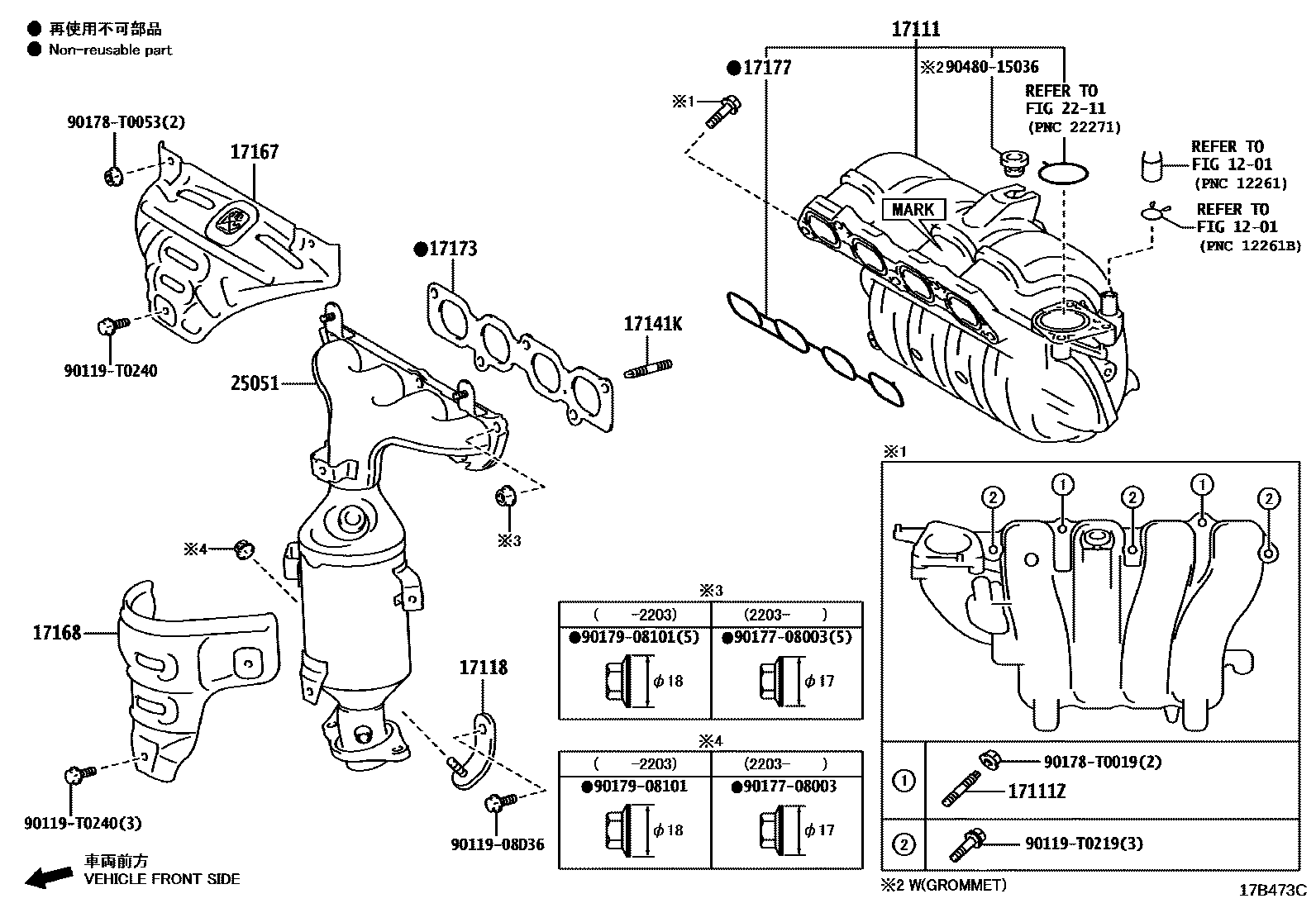

MANIFOLD
1201
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
9011908D36
90119T0219
main90119-T0219
90119T0240
main90119-T0240
9017708003
90178T0019
main90178-T0019
90178T0053
main90178-T0053
9017908101
9048015036
19 parts on this diagram · 1 diagram in section
