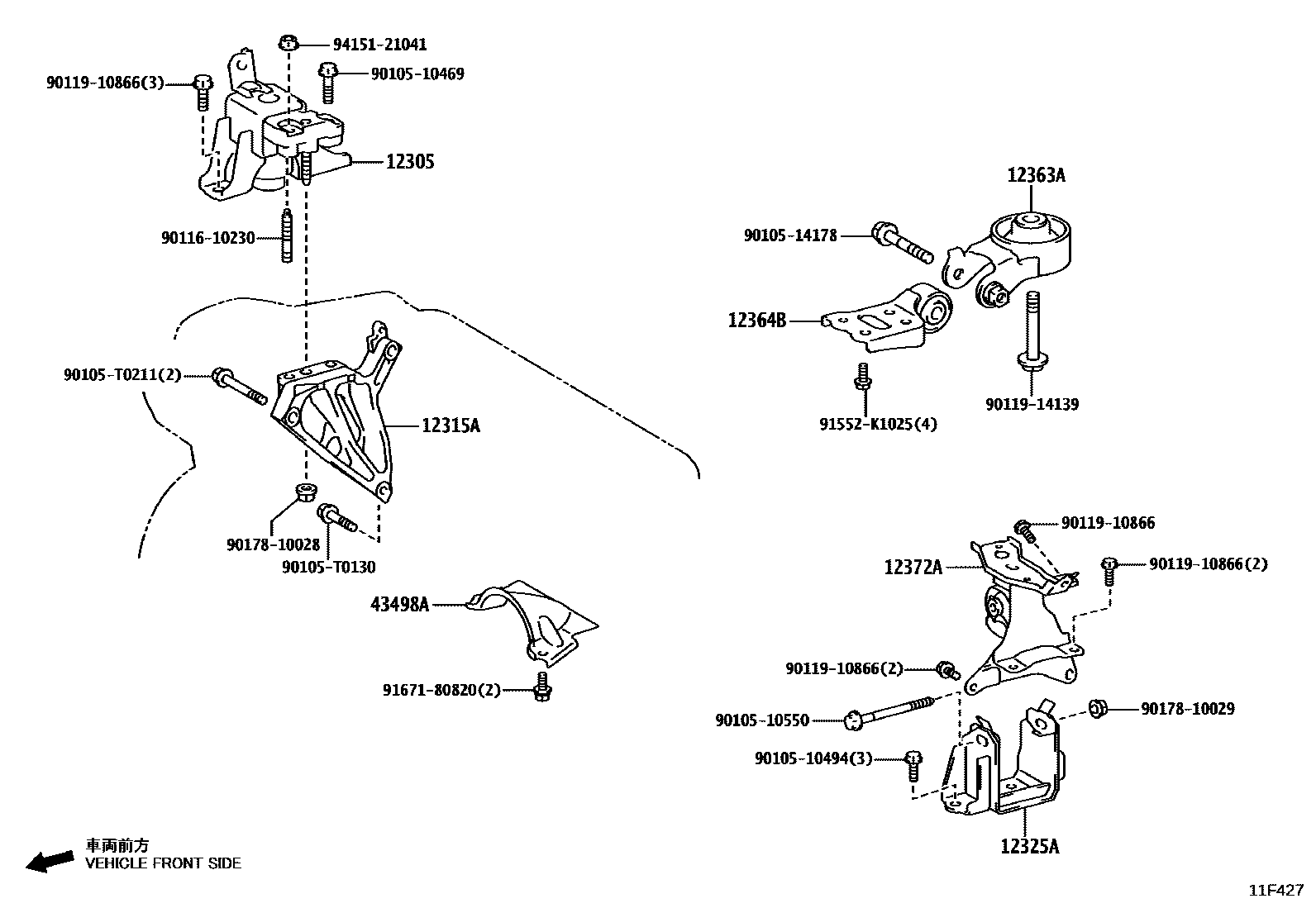

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y060i2NRFE..NSP151..5D202101-202306

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0Y010i2NRFE..NSP151..5D202101-202306

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0Y430i2NRFE..NSP151..5D202101-202306

12363AROD, ENGINE MOVING CONTROL

main12363-0Y120i2NRFE..NSP151..5D202101-202306

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0Y130i2NRFE..NSP151..5D202101-202306

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Y360i2NRFE..NSP151..5D202101-202306

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-52130iNSP151..5D202101-202306

9010510469

main90105-10469

9010510494

main90105-10494

9010510550

main90105-10550

9010514178

main90105-14178

90105T0130

main90105-T0130

90105T0211

main90105-T0211

9011610230

main90116-10230

9011910866

main90119-10866

9011914139

main90119-14139

9017810028

main90178-10028

9017810029

main90178-10029

91552K1025

main91552-K1025

9167180820

main91671-80820

9415121041

main94151-21041

21 parts on this diagram · 1 diagram in section
