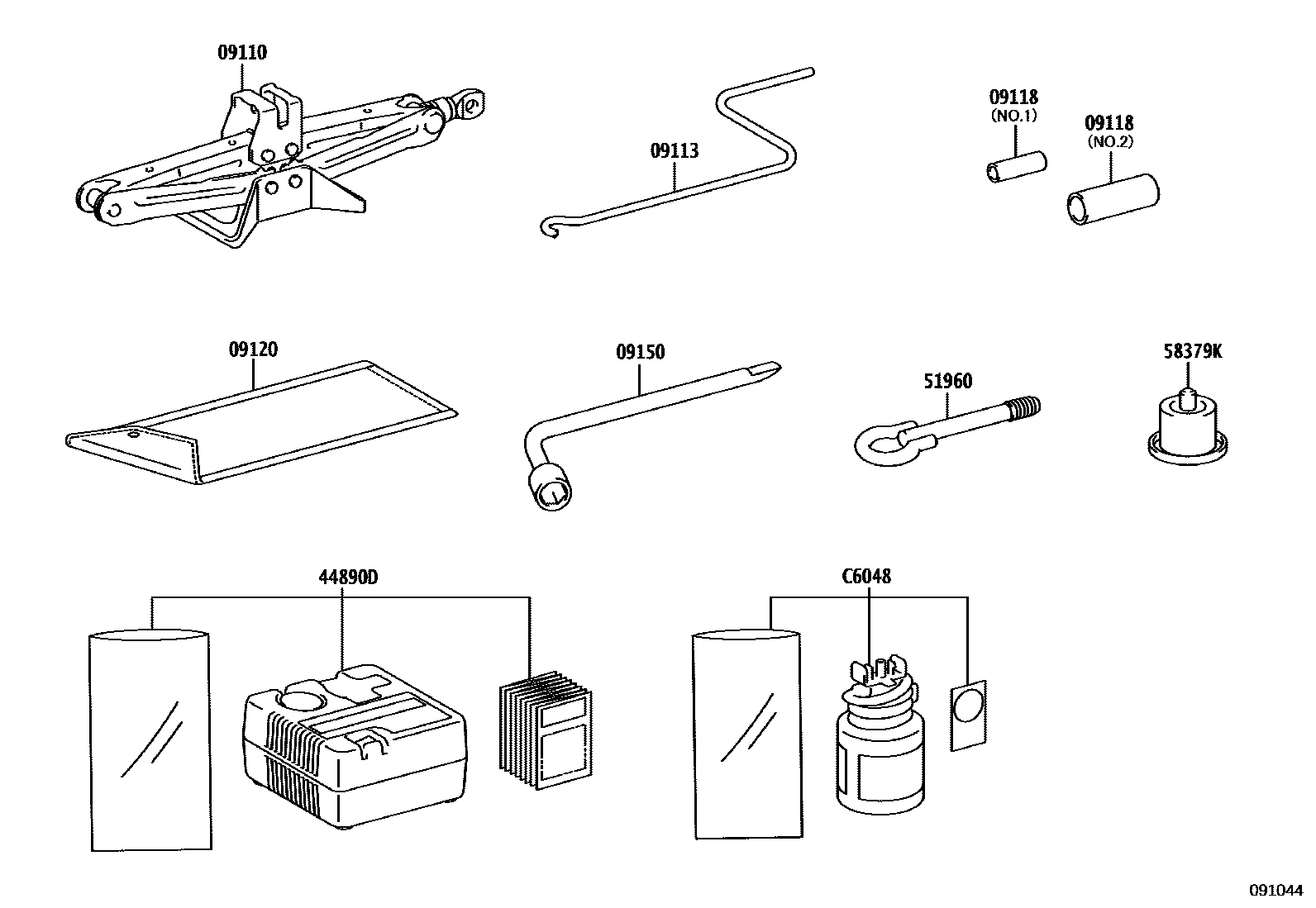

STANDARD TOOL

09110JACK ASSY

main09111-52070

09113HANDLE, JACK

main09113-20050

09118COVER, JACK

main09118-0D070

main09118-0D080

09120BAG, TOOL

main09120-0D150

09150WRENCH, HUB NUT BOX

main09150-16010

44890DCOMPRESSOR ASSY, AIR

main44890-0D020iNSP151202101-202112

main44890-0D030iNSP151..5D202201-202407

51960HOOK ASSY, FRONT

main51960-0D200iNSP151..5D202101-202407

58379KPROTECTOR, BODY LOWER BACK

main58379-0D070iNSP151..5D202101-202407

C6048REPAIR SET, TIRE

mainC60480D020iNSP151202101-202112

mainC60480D030iNSP151..5D202201-202407

9 parts on this diagram · 1 diagram in section
