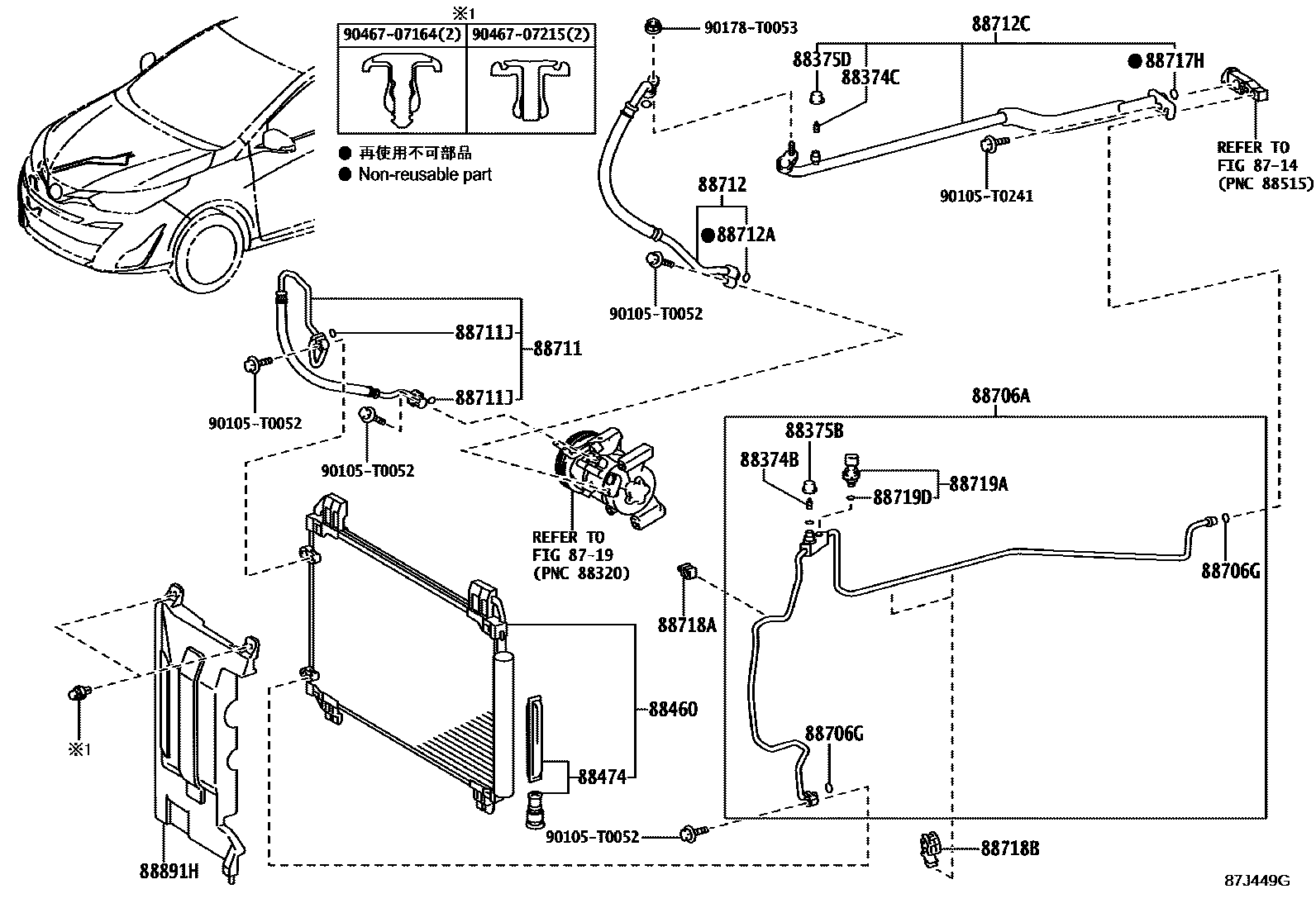

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-33070iNSP151202012

88374CVALVE, SERVICE, NO.2

main88374-30010iNSP151202012

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNSP151202012

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNSP151202012

88460CONDENSER ASSY, COOLER

main88460-0D640iNSP151202012

88474DRYER, COOLER

main88474-12010iNSP151202012

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0DC10iNSP151202012

88706GRING, O(FOR LIQUID TUBE)

main90099-14119iNSP151202012

ID=6.7,OD=10.3

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D880iNSP151202012

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iNSP151202012

ID=10.8,OD=15.6

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D800iNSP151202012

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iNSP151202012

88712CHOSE, SUCTION

main88707-0D430iNSP151202012

88717HRING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

main90099-14121iNSP151202012

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-0D290iNSP151202012

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-0D810iNSP151202012

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNSP151202012

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iNSP151202012

ID=10.6,OD=14.16

88891HCOVER, COOLER, NO.1

main88891-0D360iNSP151202012

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90178T0053

main90178-T0053

9046707164

main90467-07164

9046707215

main90467-07215

26 parts on this diagram · 1 diagram in section
