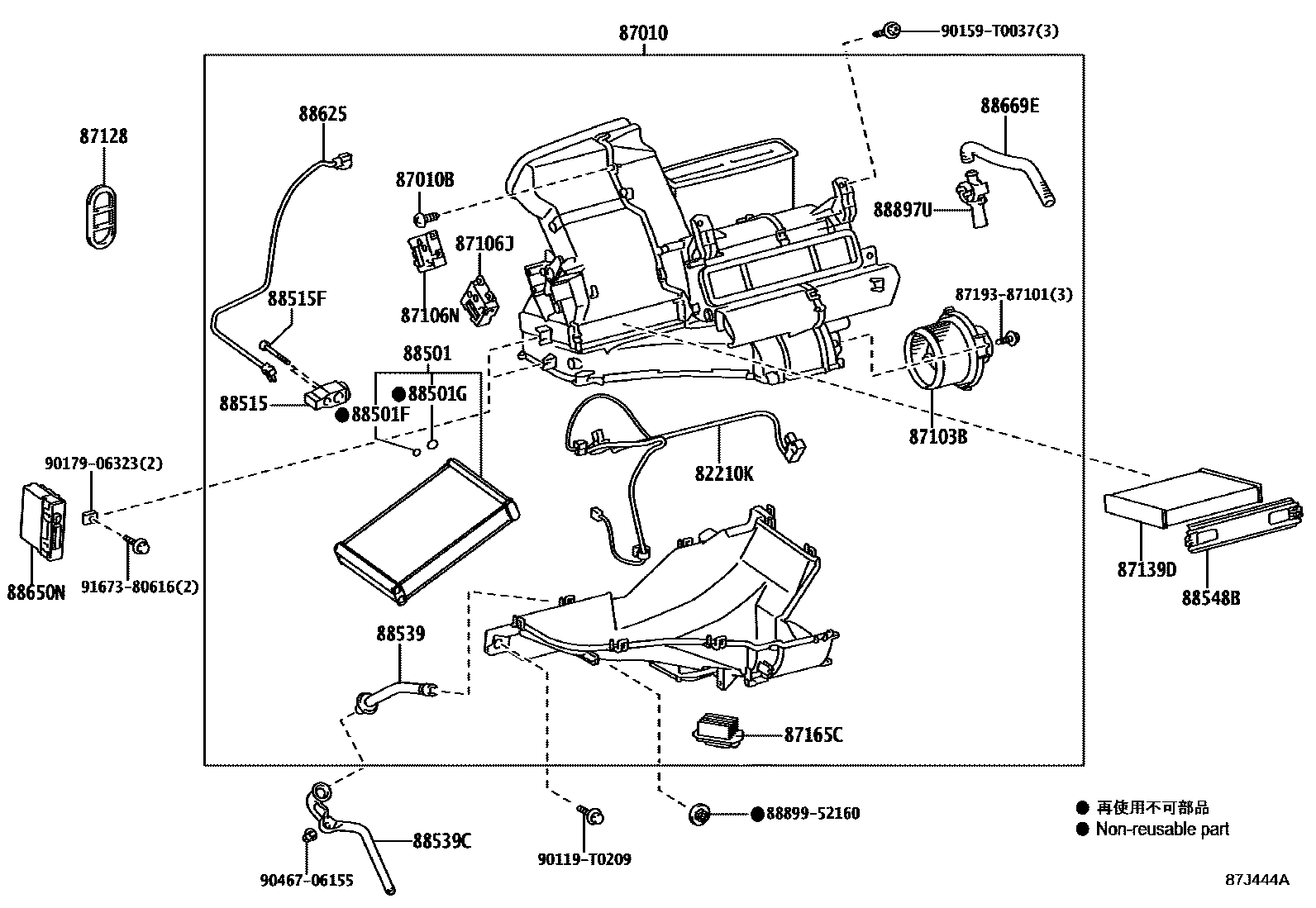

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO COOLER 0002 1MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0D010iNSP151..G;NSP151..SED..(D,R)202012

87010UNIT ASSY, AIR CONDITIONER

main87010-0DK50iNSP151..G;NSP151..SED..(D,R)202012

main87010-0DQ60iNSP151..HB..(D,R)202012

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90099-00968iNSP151..HB..(D,R)202012

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D310iNSP151202012

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-0D530iNSP151..G;NSP151..SED..(D,R)202012

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D540iNSP151..G;NSP151..SED..(D,R)202012

main87106-0D550iNSP151..HB..(D,R)202012

87128GROMMET, HEATER

main87128-0D110iNSP151202012

87139DELEMENT, AIR REFINER

main87139-0D050iNSP151202012

DUST FILTER

main87139-50100iNSP151202012

*DPF

87165CCONTROL, BLOWER MOTOR

main87165-0D180iNSP151..G;NSP151..SED..(D,R)202012

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D530iNSP151202012

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iNSP151202012

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iNSP151202012

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D610iNSP151202012

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04630iNSP151202012

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D310iNSP151202012

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D360iNSP151202012

88548BCASE, AIR FILTER

main88548-0D180iNSP151202012

88625THERMISTOR, COOLER, NO.1

main88620-0D070iNSP151..HB..(D,R)202012

main88620-0D140iNSP151..G;NSP151..SED..(D,R)202012

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D770iNSP151..HB..(D,R)202012

main88650-0D820iNSP151..G;NSP151..SED..(D,R)202012

88669EHOSE, AIR

main87233-0D200iNSP151..G;NSP151..SED..(D,R)202012

88897UPIPE, ASPIRATOR

main88897-0D110iNSP151..G;NSP151..SED..(D,R)202012

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

90119T0209

main90119-T0209

90159T0037

main90159-T0037

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

28 parts on this diagram · 2 diagrams in section
