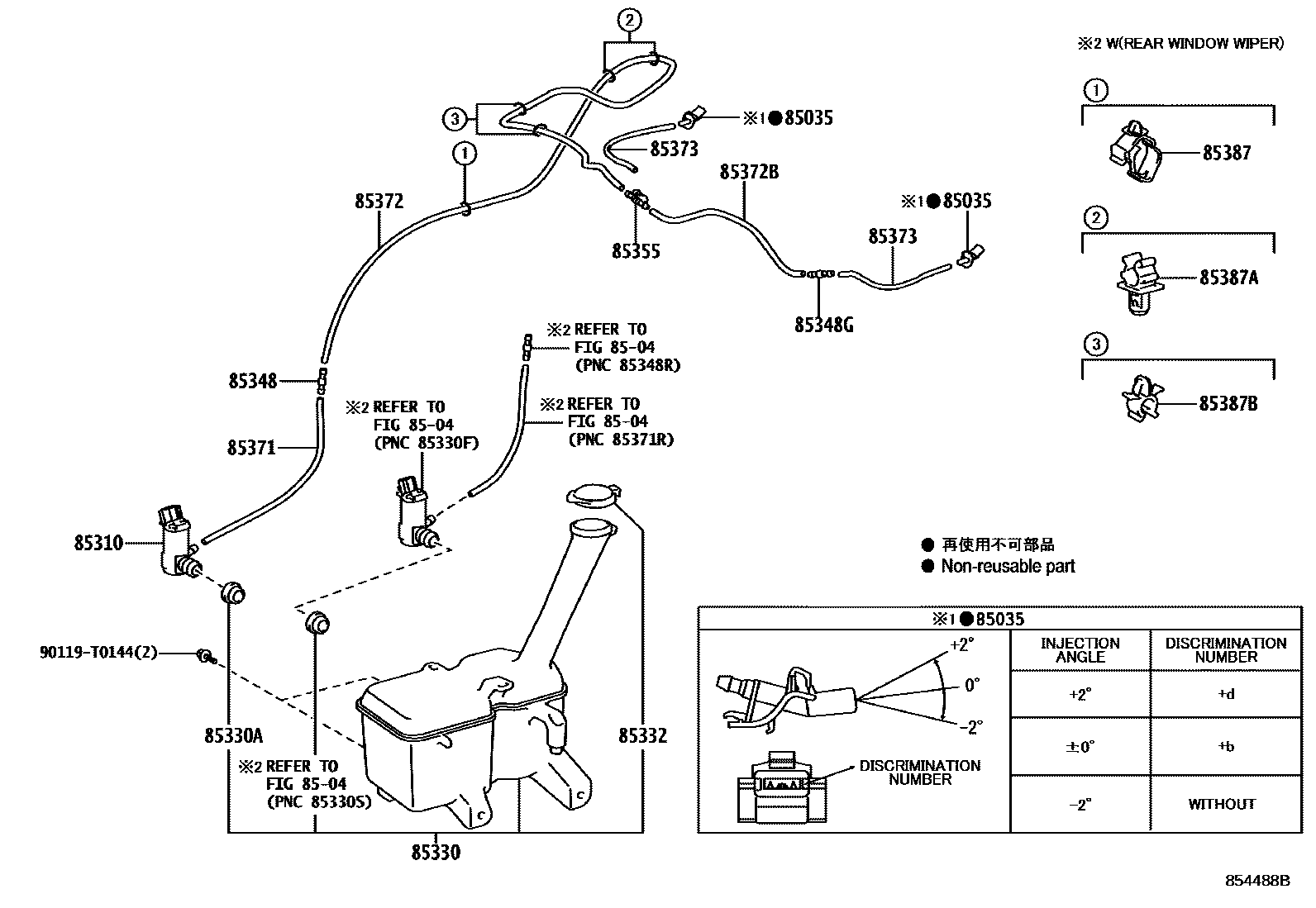

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iNSP151202012

ANGLE 0

sub85381-0K070

main85381-30230iNSP151202012

ANGLE -2

sub85381-0K080

main85381-30240iNSP151202012

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D131iNSP151202012

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D230iNSP151..HB202012-202301

sub85315-0D231

main85315-0D231iNSP151..HB202308

main85315-0D250iNSP151..SED202012

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNSP151..HB202012-202301

85332CAP, WINDSHIELD WASHER JAR

main85316-02630iNSP151..HB202012-202301

sub85316-02631

main85316-02631iNSP151..HB202308

main85316-16070iNSP151..SED202012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNSP151202012

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNSP151202012

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNSP151202012

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33207iNSP151..HB202012-202301

L=230

main90099-33299iNSP151..SED202012

L=1450(*H,L=230)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-59371iNSP151202012

L=1620

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNSP151202012

L=1800(*H,L=300)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNSP151202012

L=1000(*H,L=180)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100iNSP151202012

85387ACLAMP, WASHER, NO.2

main85371-52110iNSP151202012

85387BCLAMP, WASHER, NO.3

main90469-T0005iNSP151202012

90119T0144

main90119-T0144

17 parts on this diagram · 1 diagram in section
