CLEARANCE & BACK SONAR
5201
5202
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
RED M.M.,2QL ,3R3
ORANGE ME.,4R8
CITRUS M.M.,2QM ,6W2
DK.BLUE M.M.,8W7
NEBULA BLUE ME.,8X2
CYAN METALLIC,2UH ,8W9
GR SPORT&MLM PACKAGE,BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
RED M.M.,2QL ,3R3
ORANGE ME.,4R8
CITRUS M.M.,2QM ,6W2
DK.BLUE M.M.,8W7
NEBULA BLUE ME.,8X2
CYAN METALLIC,2UH ,8W9
89342ASENSOR, ULTRASONIC, REAR CENTER
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
RED M.M.,2QL ,3R3
ORANGE ME.,4R8
CITRUS M.M.,2QM ,6W2
DK.BLUE M.M.,8W7
NEBULA BLUE ME.,8X2
CYAN METALLIC,2UH ,8W9
89343CBUZZER, CLEARANCE WARNING, NO.1
89348JCLIP, ULTRASONIC SENSOR
9167380616
main91673-80616

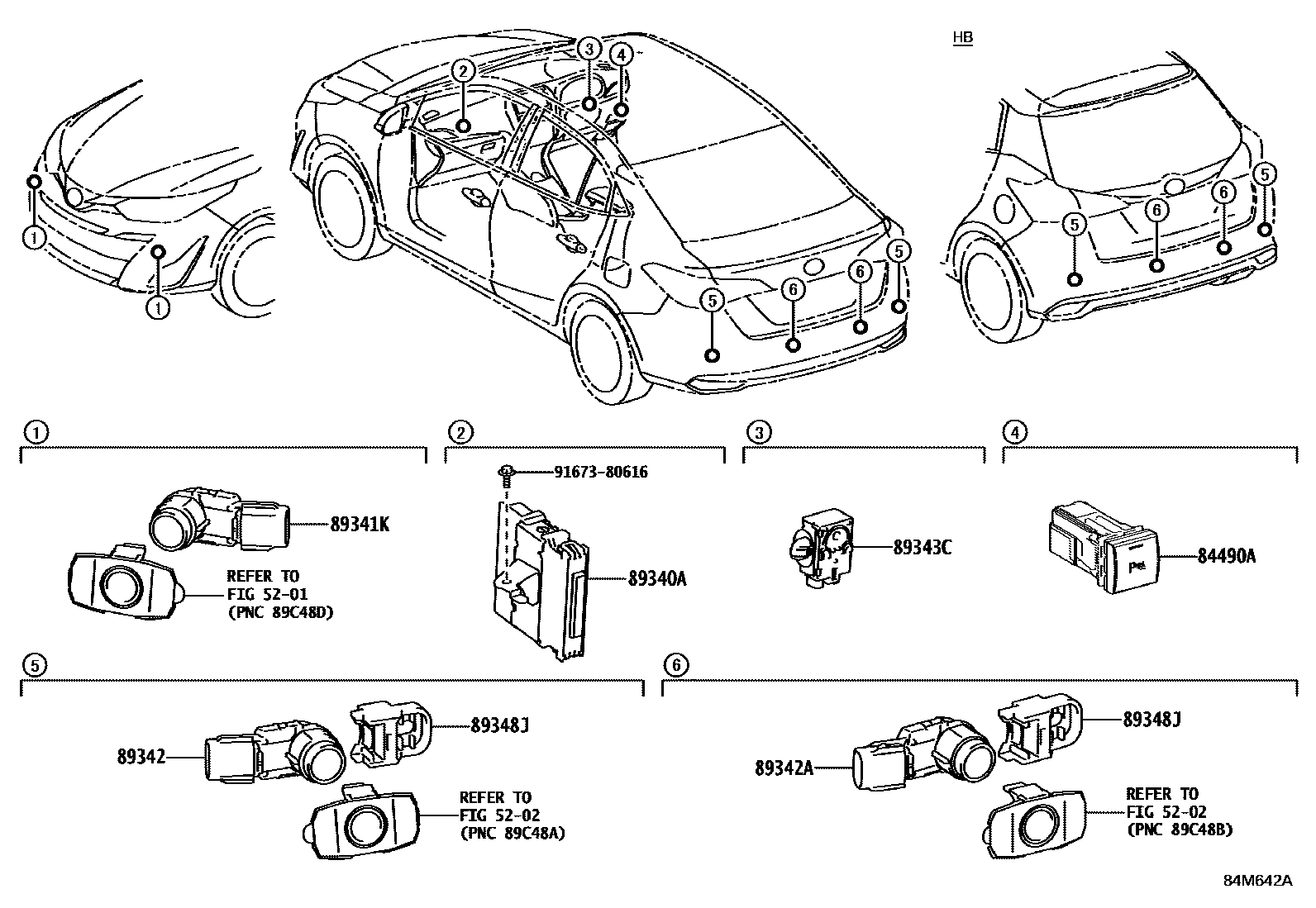

10 parts on this diagram · 1 diagram in section
