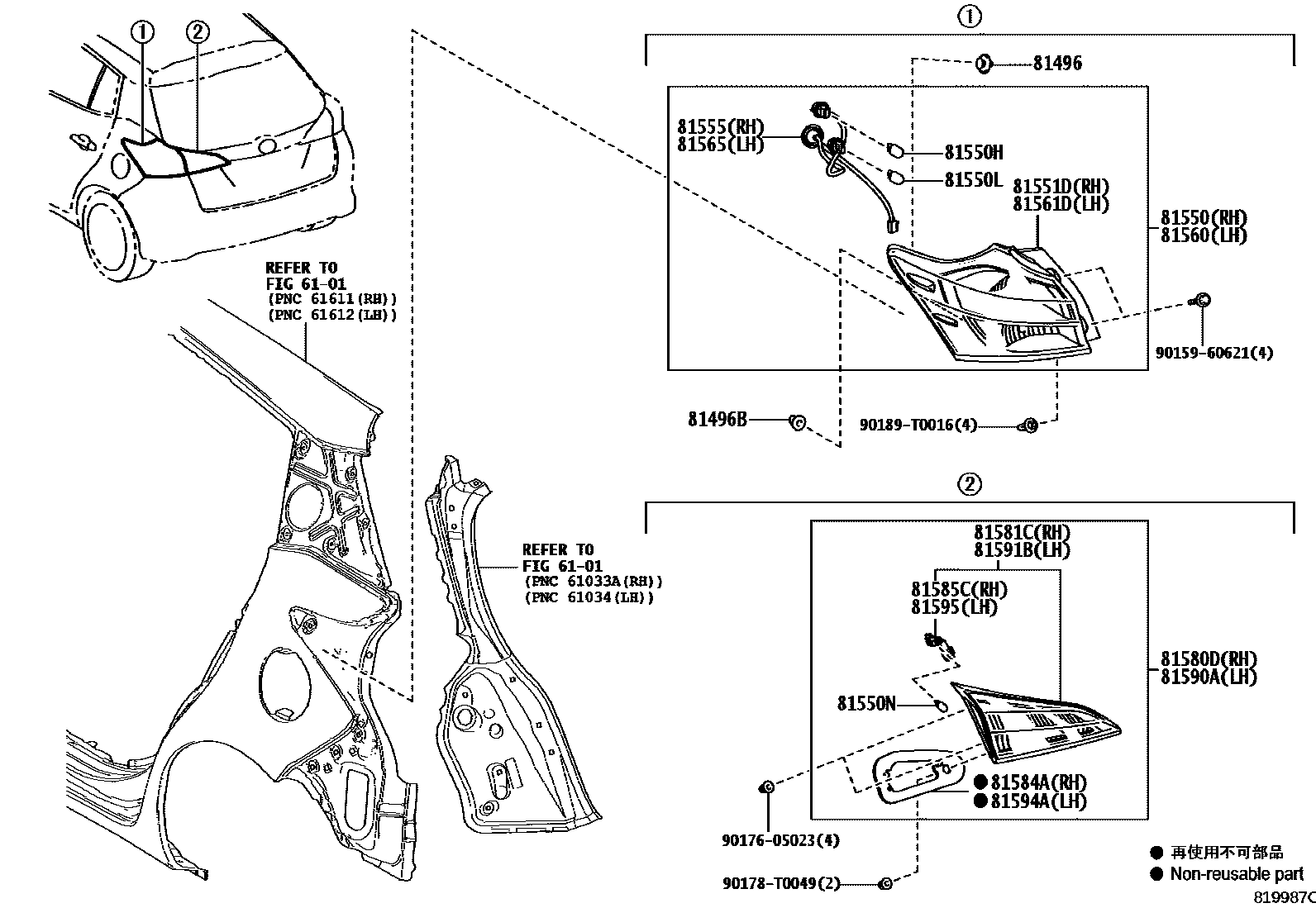

REAR COMBINATION LAMP

0001 1TAIL & STOP LAMP = BULB 0002 1TAIL & STOP LAMP = LED 0003 1TAIL & STOP LAMP = BULB 0004 1TAIL & STOP LAMP = LED

6101

81496GUIDE, REAR COMBINATION LAMP

main81497-0D070iNSP151202012

81496BGUIDE, REAR LAMP

main81496-0D040iNSP151..HB202012

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0DD01iNSP151..HB..(G,R)202012

main81550-0DE31iNSP151..HB..D202012

main81550-0DE51iNSP151..SED..(G,R)202012

main81550-0DE61iNSP151..SED..D202012

81550HBULB, TAIL & STOP LAMP

main90981-13044iNSP151..D202012

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNSP151202012

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNSP151202012

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0DD01iNSP151..HB..(G,R)202012

main81551-0DE31iNSP151..HB..D202012

main81551-0DE50iNSP151..SED..(G,R)202012

main81551-0DE60iNSP151..SED..D202012

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D860iNSP151..HB..D202012

main81555-0DE50iNSP151..SED..(G,R)202012

main81555-0DE60iNSP151..SED..D202012

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0DD01iNSP151..HB..(G,R)202012

main81560-0DE31iNSP151..HB..D202012

main81560-0DE51iNSP151..SED..(G,R)202012

main81560-0DE61iNSP151..SED..D202012

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0DD01iNSP151..HB..(G,R)202012

main81561-0DE31iNSP151..HB..D202012

main81561-0DE50iNSP151..SED..(G,R)202012

main81561-0DE60iNSP151..SED..D202012

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D860iNSP151..HB..D202012

main81555-0DE50iNSP151..SED..(G,R)202012

main81555-0DE60iNSP151..SED..D202012

81580DLAMP ASSY, REAR, RH

main81580-0D650iNSP151..SED..(G,R)202012

main81580-0D660iNSP151..SED..D202012

main81580-0DA31iNSP151..HB..(G,R)202012

main81580-0DB41iNSP151..HB..D202012

81581CLENS AND BODY, REAR LAMP, RH

main81581-0D650iNSP151..SED..(G,R)202012

main81581-0D660iNSP151..SED..D202012

main81581-0DA31iNSP151..HB..(G,R)202012

main81581-0DB41iNSP151..HB..D202012

81584AGASKET, REAR LAMP RH

main81582-0D650iNSP151..SED202012

main81584-0D410iNSP151..HB..(G,R)202012

main81584-0DB40iNSP151..HB..D202012

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-0D650iNSP151..SED..(G,R)202012

main81585-0D660iNSP151..SED..D202012

main81585-0DB40iNSP151..HB..D202012

81590ALAMP ASSY, REAR, LH

main81590-0D650iNSP151..SED..(G,R)202012

main81590-0D660iNSP151..SED..D202012

main81590-0DA31iNSP151..HB..(G,R)202012

main81590-0DB41iNSP151..HB..D202012

81591BLENS AND BODY, REAR LAMP, LH

main81591-0D650iNSP151..SED..(G,R)202012

main81591-0D660iNSP151..SED..D202012

main81591-0DA31iNSP151..HB..(G,R)202012

main81591-0DB41iNSP151..HB..D202012

81594AGASKET, REAR LAMP LH

main81592-0D650iNSP151..SED202012

main81594-0D410iNSP151..HB..(G,R)202012

main81594-0DB40iNSP151..HB..D202012

81595SOCKET & WIRE, REAR LAMP, LH

main81585-0D650iNSP151..SED..(G,R)202012

main81585-0D660iNSP151..SED..D202012

main81585-0DB40iNSP151..HB..D202012

9015960621

main90159-60621

9017605023

main90176-05023

90178T0049

main90178-T0049

90189T0016

main90189-T0016

24 parts on this diagram · 4 diagrams in section
