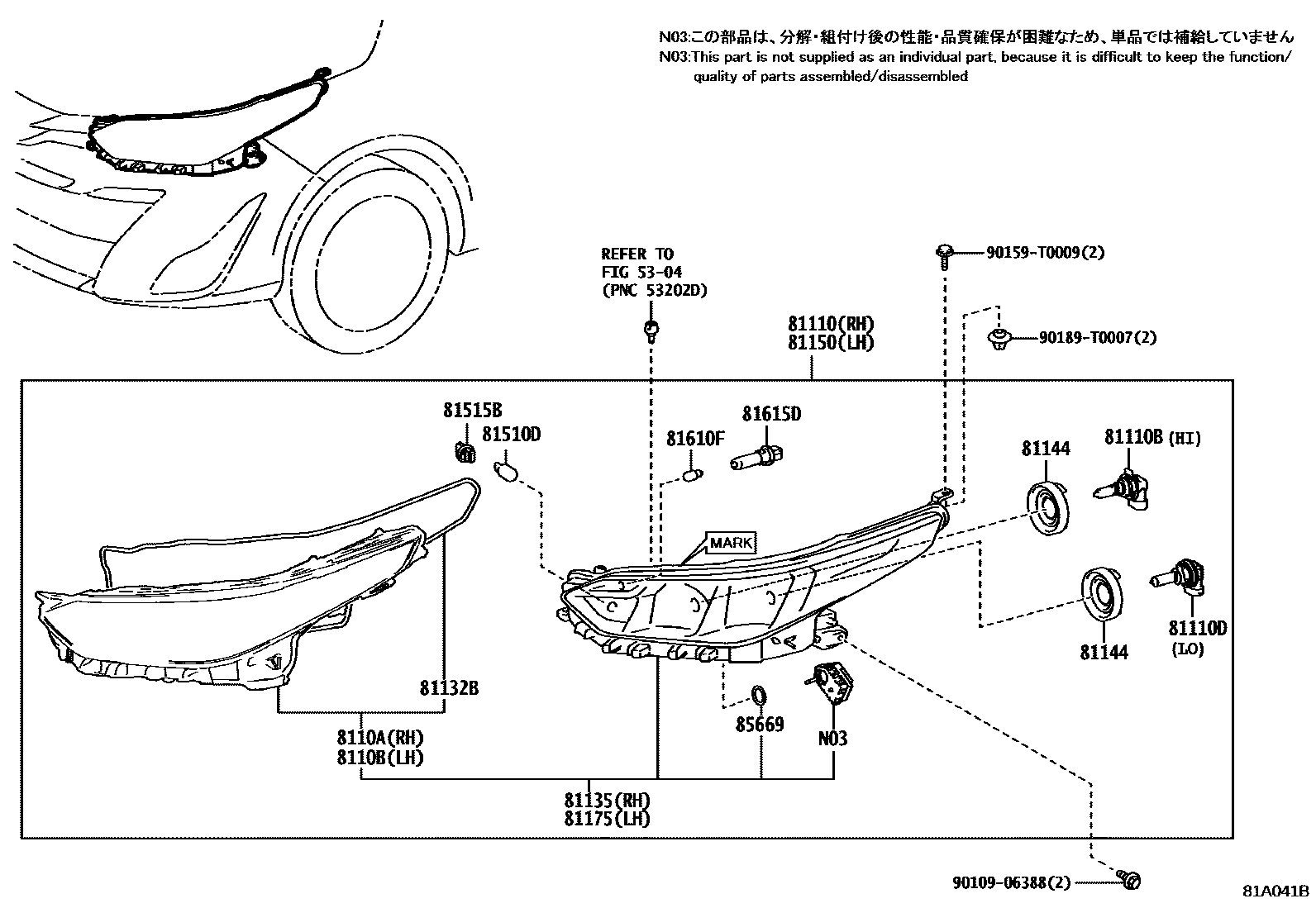

HEADLAMP

0001 1HALOGEN(MULTI REFLECTOR TYPE)0002 1HALOGEN(PROJECTOR TYPE) 0003 1LED

5304

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-0DF01iNSP151..D;NSP151..SED..R202012

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-0DF01iNSP151..D;NSP151..SED..R202012

81110HEADLAMP ASSY, RH

main81110-0DN40iNSP151..SED..G;NSP151..HB..(G,R)202012

main81110-0DP90iNSP151..D;NSP151..SED..R202012

KOITO

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iNSP151202012

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iNSP151202012

12V 55W,HALOGEN

81132BGASKET, HEADLAMP LENS

main81132-48C30iNSP151..D;NSP151..SED..R202012

81135UNIT ASSY, HEADLAMP, RH

main81130-0DF01iNSP151..D;NSP151..SED..R202012

THAI KOITO

main81130-0DN40iNSP151..SED..G;NSP151..HB..(G,R)202012

main81130-0DP90iNSP151..D;NSP151..SED..R202012

KOITO

81144COVER, HEADLAMP, NO.1

main90075-65006iNSP151202012

81150HEADLAMP ASSY, LH

main81150-0DN40iNSP151..SED..G;NSP151..HB..(G,R)202012

main81150-0DP90iNSP151..D;NSP151..SED..R202012

KOITO

81175UNIT ASSY, HEADLAMP, LH

main81170-0DF01iNSP151..D;NSP151..SED..R202012

THAI KOITO

main81170-0DN40iNSP151..SED..G;NSP151..HB..(G,R)202012

main81170-0DP90iNSP151..D;NSP151..SED..R202012

KOITO

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iNSP151..D;NSP151..SED..R202012

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iNSP151202012

MLM PACKAGE

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iNSP151..D;NSP151..SED..R202012

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089iNSP151..D;NSP151..SED..R202012

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iNSP151202012

9010906388

main90109-06388

90159T0009

main90159-T0009

90189T0007

main90189-T0007

19 parts on this diagram · 3 diagrams in section
