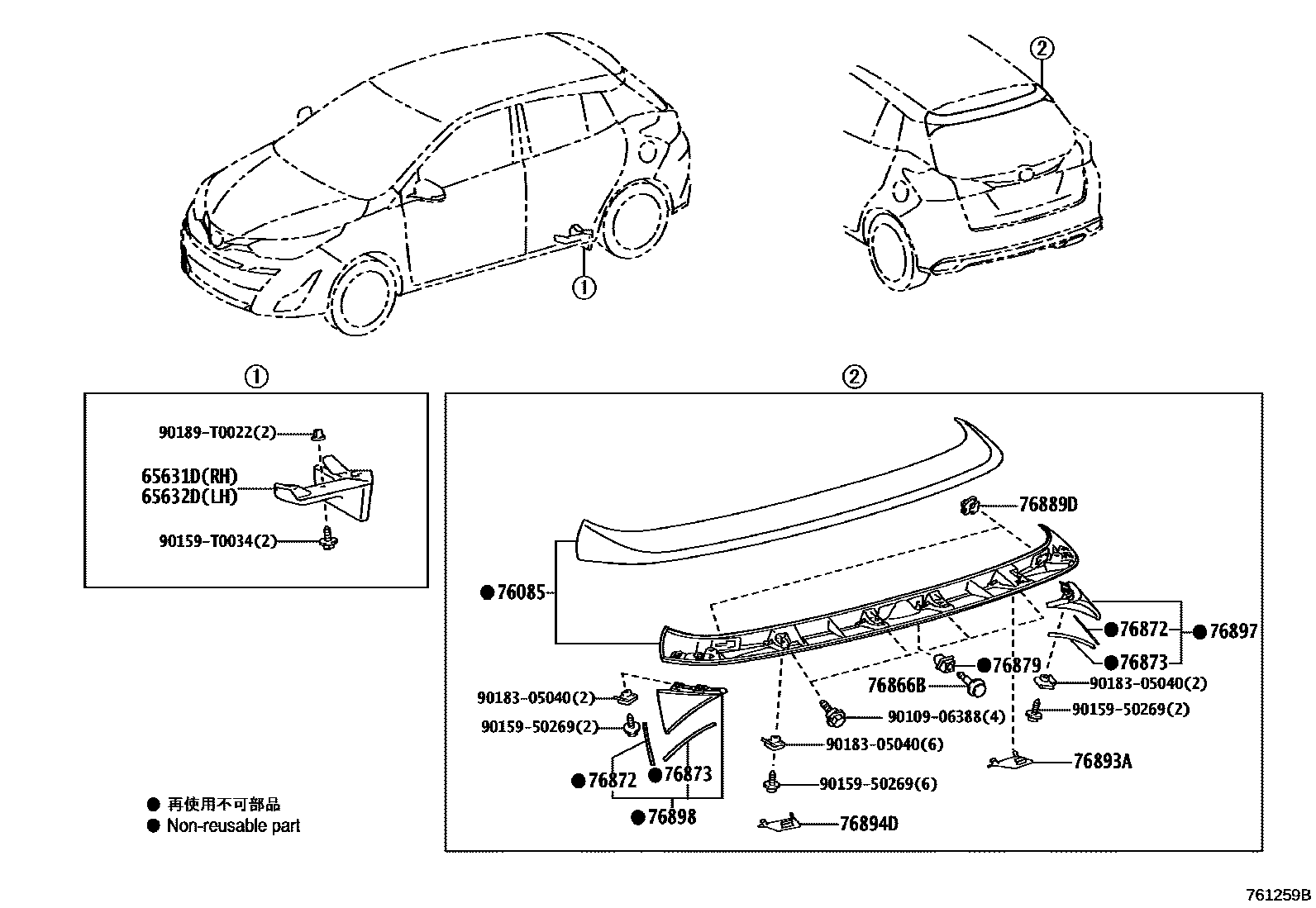

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0D200iNSP151202012

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0D200iNSP151202012

76085SPOILER SUB-ASSY, REAR

main76085-0D908iNSP151..HB..(G,R)202012-202104

PAINT REQ.

sub76085-0D912

main76085-0D912iNSP151..HB..(G,R)202104

PAINT REQ.

76866BRETAINER, REAR SPOILER, NO.2

main76866-48010iNSP151..HB..(G,R)202012

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0D050iNSP151..HB..(G,R)202012

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0D110iNSP151..HB..(G,R)202012

76879CLIP, REAR SPOILER, NO.1

main76879-0D070iNSP151..HB..(G,R)202012

76889DCLIP, REAR SPOILER, NO.2

main76889-0D030iNSP151..HB..(G,R)202012

76893ACOVER, REAR SPOILER, RH

main76893-0D913iNSP151..HB..(G,R)202012

76894DCOVER, REAR SPOILER, LH

main76894-0D913iNSP151..HB..(G,R)202012

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-0D090iNSP151..HB..(G,R)202012-202103

sub76897-0D091

main76897-0D091iNSP151..HB..(G,R)202104

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-0D090iNSP151..HB..(G,R)202012-202103

sub76898-0D091

main76898-0D091iNSP151..HB..(G,R)202104

9010906388

main90109-06388

9015950269

main90159-50269

90159T0034

main90159-T0034

9018305040

main90183-05040

90189T0022

main90189-T0022

17 parts on this diagram · 2 diagrams in section
