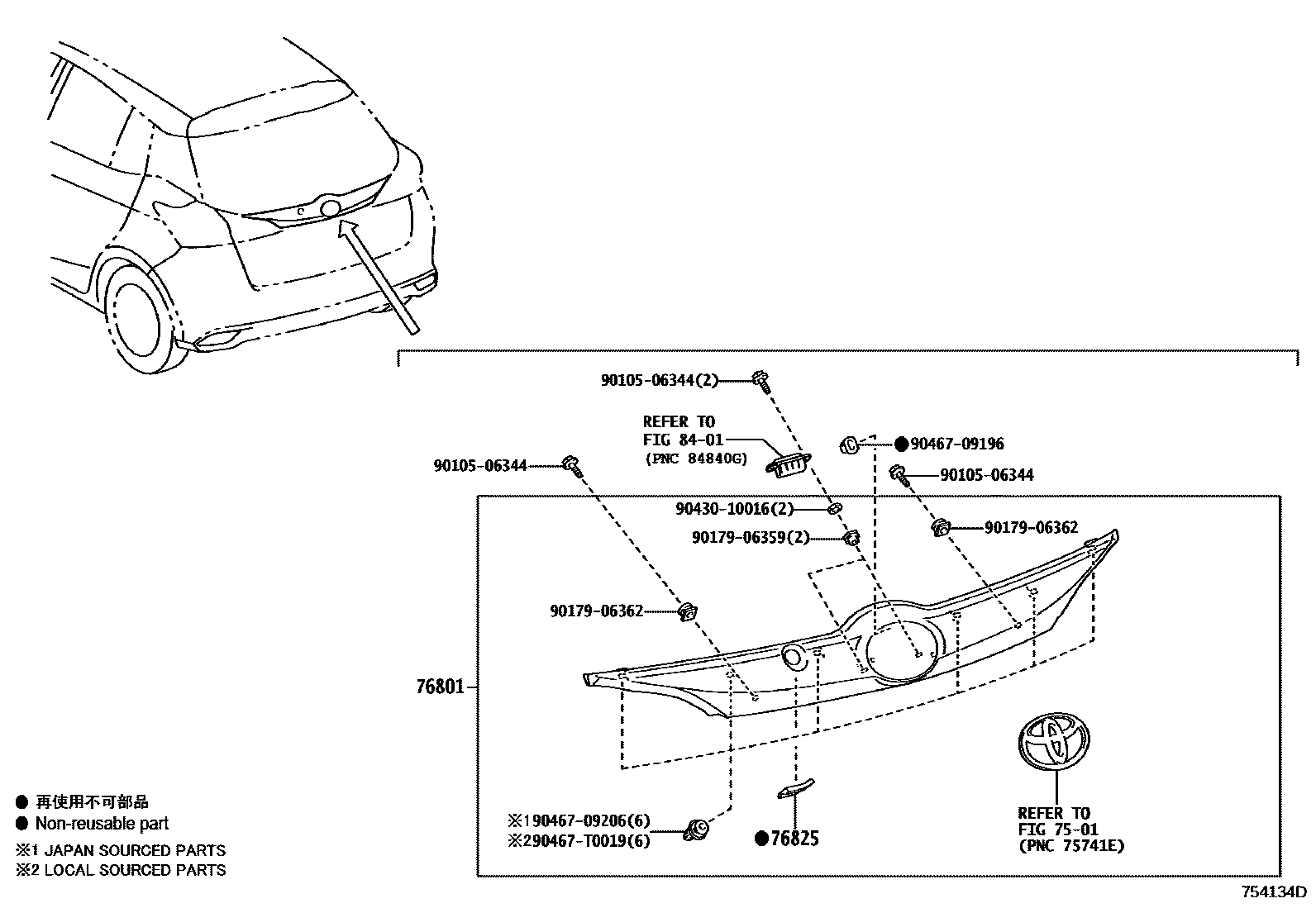

REAR MOULDING

0001 1 0002 1

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0DA40iNSP151..HB202012-202101

NO PAINT REQ.

sub76801-0DA41

main76801-0DA41iNSP151..HB202101

NO PAINT REQ.

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0D130iNSP151..HB202012

8401

9010506344

main90105-06344

9017906359

main90179-06359

9017906362

main90179-06362

9043010016

main90430-10016

9046709196

main90467-09196

9046709206

main90467-09206

90467T0019

main90467-T0019

11 parts on this diagram · 2 diagrams in section
