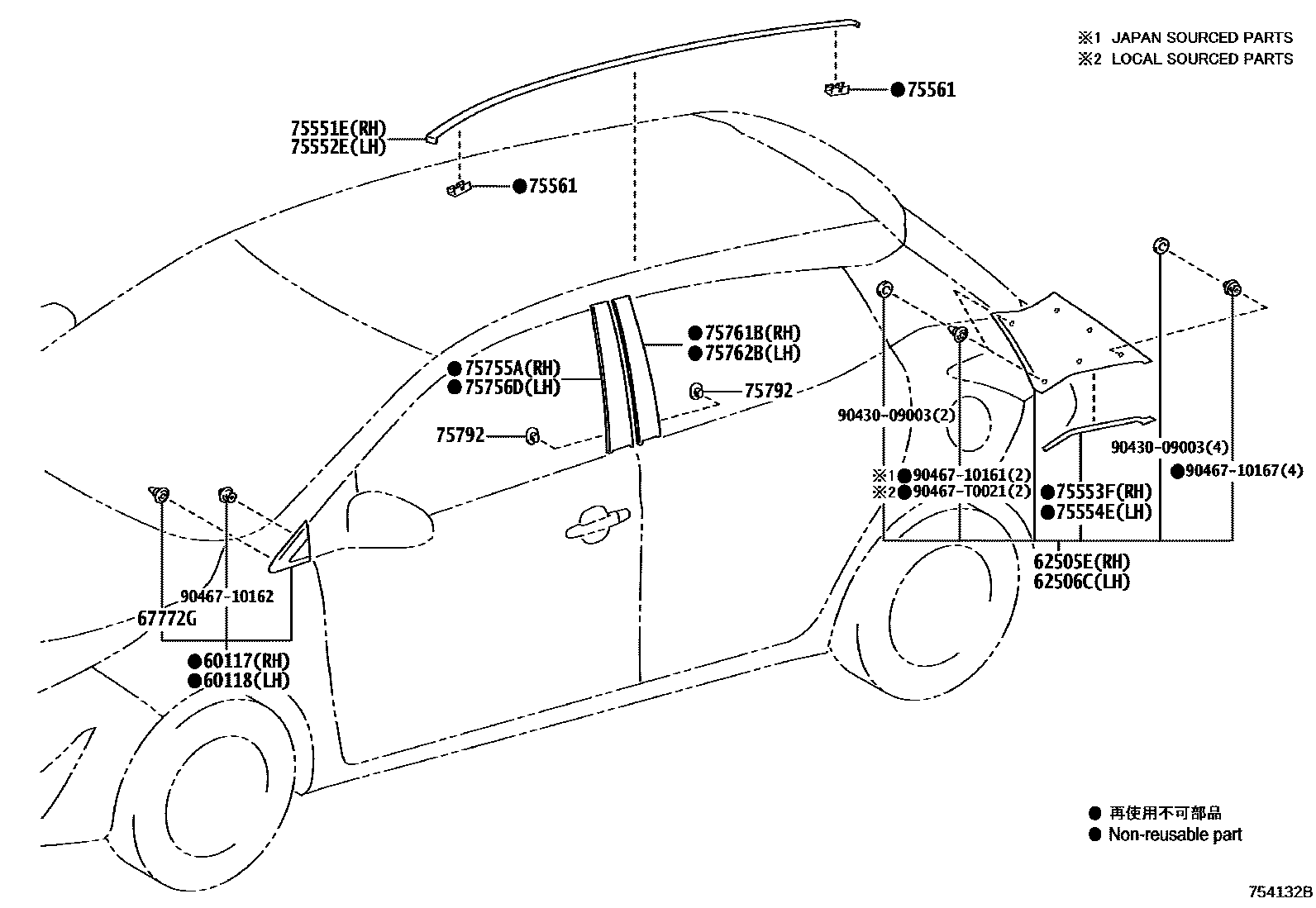

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0D250i202012

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0D250i202012

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-0D160i202012-202103

sub62505-0D161

main62505-0D161i202104

NO PAINT REQ.

main62505-0D200i202012

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-0D160i202012-202103

sub62506-0D161

main62506-0D161i202104

NO PAINT REQ.

main62506-0D200i202012

67772GCAP, FRONT PILLAR COVER

main67772-95J03i202012

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0D170i202012-202101

sub75551-0D171

main75551-0D171i202101

main75551-0D200i202012

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0D120i202012-202101

sub75552-0D121

main75552-0D121i202101

main75552-0D150i202012

75553FMOULDING, QUARTER GARNISH, RH

main75553-0D060i202012

75554EMOULDING, QUARTER GARNISH, LH

main75554-0D060i202012

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030i202012

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-0D130i202012

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-0D130i202012

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-0D110i202012

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-0D110i202012

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D020i202012

FRONT,REAR

9043009003

main90430-09003

9046710161

main90467-10161

9046710162

main90467-10162

9046710167

main90467-10167

90467T0021

main90467-T0021

20 parts on this diagram · 2 diagrams in section
