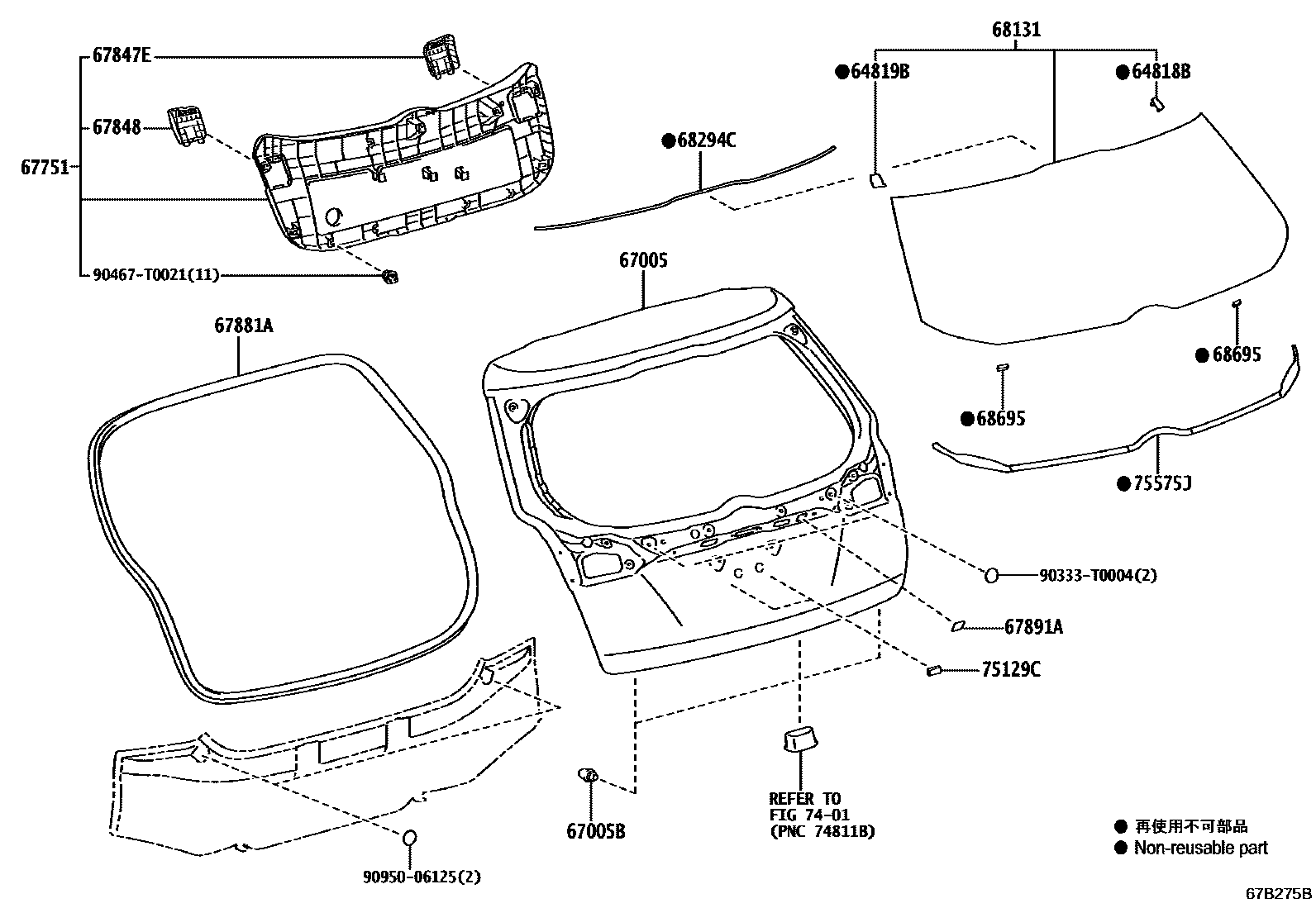

BACK DOOR PANEL & GLASS

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0D130iNSP151..HB202012

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0D120iNSP151..HB202012

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D770iNSP151..HB..(G,R)202012

main67005-0D780iNSP151..HB..D202012

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09133iNSP151..HB¥100202012

67751BOARD, BACK DOOR TRIM

main67750-0D240iNSP151..HB202012

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-0D010iNSP151..HB202012

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-0D010iNSP151..HB202012

67881AWEATHERSTRIP, BACK DOOR

main67881-0D250iNSP151..HB202012

67891ASEAL, BACK DOOR

main67891-0D030iNSP151..HB202012

68131GLASS, BACK DOOR

main68105-0D907iNSP151..HB202012

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main64813-0D380iNSP151..HB202012

68695PAD, BACK DOOR WINDOW FRAME

main75955-0D070iNSP151..HB202012

7401

75129CCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP151..HB202012

75575JMOULDING, BACK WINDOW, OUTSIDE LOWER RH

main75575-0D060iNSP151..HB202012

90333T0004

main90333-T0004¥90

90467T0021

main90467-T0021

9095006125

main90950-06125¥130

18 parts on this diagram · 1 diagram in section
