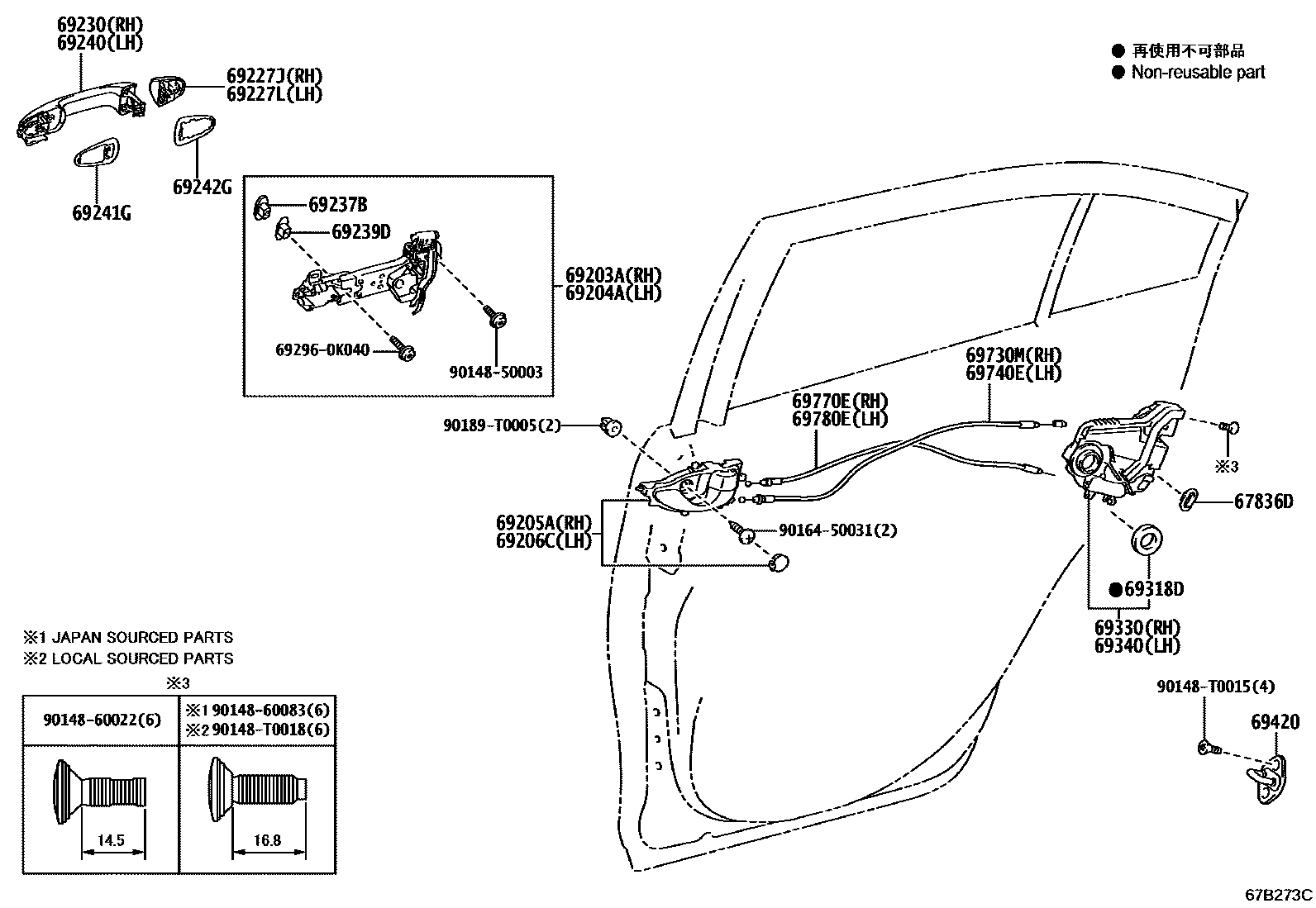

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
PLATED
LESS COLOR
LESS COLOR,GR SPORT
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
PLATED
LESS COLOR
LESS COLOR,GR SPORT
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
GR SPORT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
GR SPORT
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
692960K040SCREW, DOOR INSIDE HANDLE
main69296-0K040
9014850003
main90148-50003
9014860022
main90148-60022
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
9016450031
main90164-50031
90189T0005
main90189-T0005
29 parts on this diagram · 1 diagram in section
