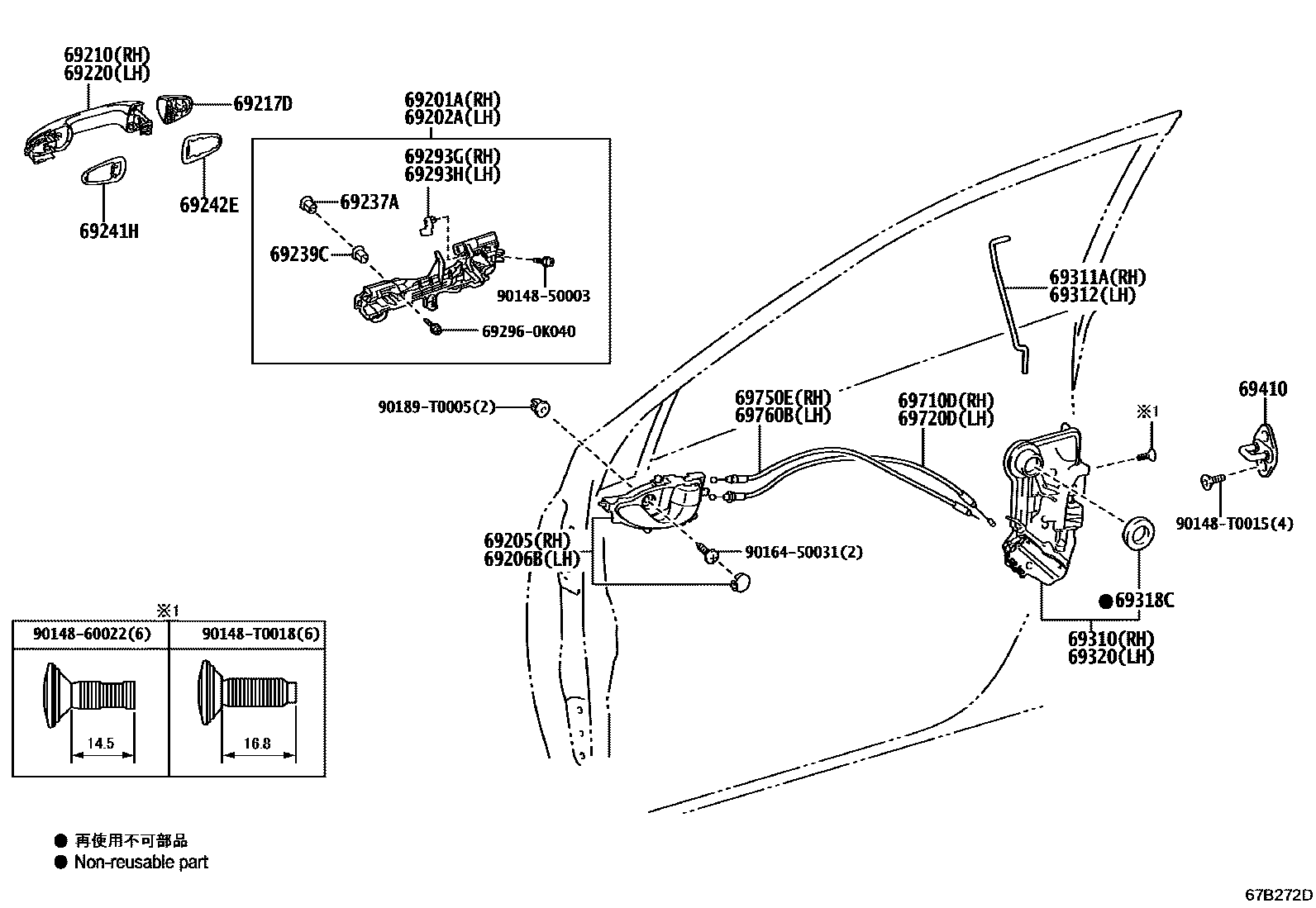

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1D4 ,2US
SILVER ME.,1D4
GR SPORT,ATTITUDE BLACK MC.,089 ,218 ,3R3
ATTITUDE BLACK MC.,218
RED M.M.,2QL ,3R3
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,2QM ,6W2
DK.BLUE M.M.,8W7
NEBULA BLUE ME.,8X2
CYAN METALLIC,2UH ,8W9
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
LESS COLOR,GR SPORT,DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,GR SPORT,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
GR SPORT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
GR SPORT
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
692960K040SCREW, DOOR INSIDE HANDLE
main69296-0K040
9014850003
main90148-50003
9014860022
main90148-60022
90148T0015
main90148-T0015
90148T0018
main90148-T0018
9016450031
main90164-50031
90189T0005
main90189-T0005
30 parts on this diagram · 1 diagram in section
