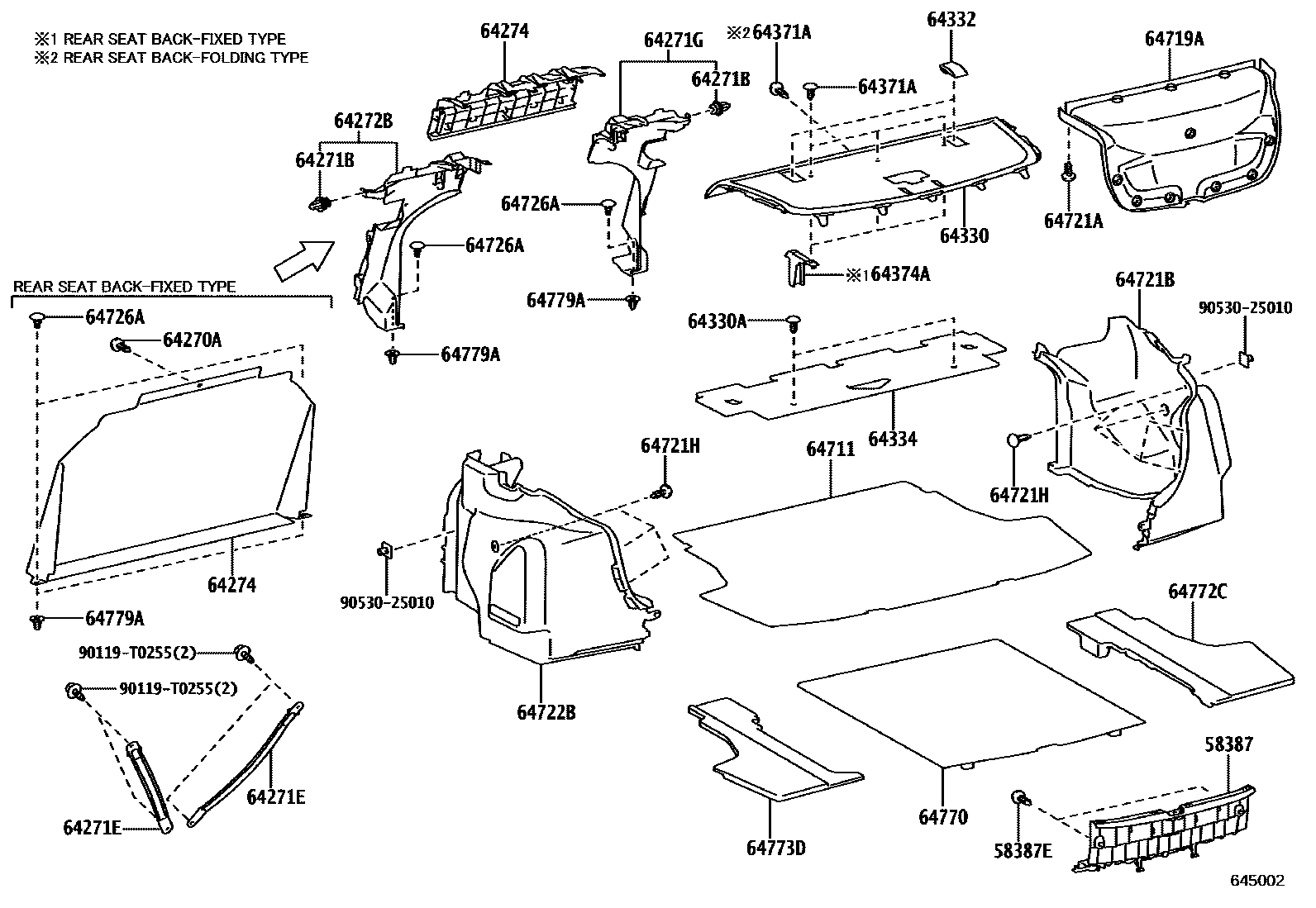

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D270iNSP151..SED202012

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3iNSP151..SED202012-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP151..SED202104

BLACK,TRIM2#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C3iNSP151..SED..D202012-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP151..SED..D202104

BLACK,TRIM2#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-T0021iNSP151..SED..(G,R)202012

64271EPANEL, ROOM PARTITION

main64241-0D060iNSP151..SED..D202012

64271GBOARD, ROOM PARTITION, RH

main64271-0D060iNSP151..SED..(G,R)202012

64272BBOARD, ROOM PARTITION, LH

main64272-0D050iNSP151..SED..(G,R)202012

64274PAD, ROOM PARTITION TRIM, NO.1

main64275-0D070iNSP151..SED..(G,R)202012

main64275-0D210-C1iNSP151..SED..D202012

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D590-C0iNSP151..SED202012

BLACK,TRIM2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-C0iNSP151..SED202012-202104

BLACK,TRIM2#

sub90467-06020¥190

main90467-T0046-C0iNSP151..SED202104

BLACK,TRIM2#

64332COVER, PACKAGE TRAY TRIM

main64332-0D011-C0iNSP151..SED202012

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-0D300iNSP151..SED..D202012

main64334-0D310iNSP151..SED..(G,R)202012

64371ACLIP(FOR PACKAGE TRAY TRIM)

main90467-06020-C0iNSP151..SED..D202012-202104

BLACK,TRIM2#

sub90467-06020¥190

main90467-T0046-C0iNSP151..SED..D202104

BLACK,TRIM2#

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-0D030iNSP151..SED..D202012

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D370-C1iNSP151..SED..D202012

BLACK,TRIM2#

main64711-0D380-C1iNSP151..SED..(G,R)202012

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D190-C1iNSP151..SED202012

BLACK,TRIM2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C3iNSP151..SED202012-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP151..SED202104

BLACK,TRIM2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-0D290-C1iNSP151..SED..D202012

BLACK,TRIM2#

main64721-0D300-C1iNSP151..SED..(G,R)202012

BLACK,TRIM2#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3iNSP151..SED202012-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP151..SED202104

BLACK,TRIM2#

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-0D290-C1iNSP151..SED..D202012

BLACK,TRIM2#

main64722-0D300-C1iNSP151..SED..(G,R)202012

BLACK,TRIM2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D020iNSP151..SED¥170202012

64770COVER ASSY, SPARE WHEEL

main64770-0D310iNSP151..SED..D202012

GR SPORT&MLM PACKAGE

main64770-0D320iNSP151..SED..(G,R)202012

64772CPAD, SPARE WHEEL COVER

main64772-0D230iNSP151..SED202012

64773DCOVER, SPARE WHEEL, NO.2

main64773-0D170iNSP151..SED202012

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D050iNSP151..SED202012

90119T0255

main90119-T0255

9053025010

main90530-25010¥100

27 parts on this diagram · 1 diagram in section
