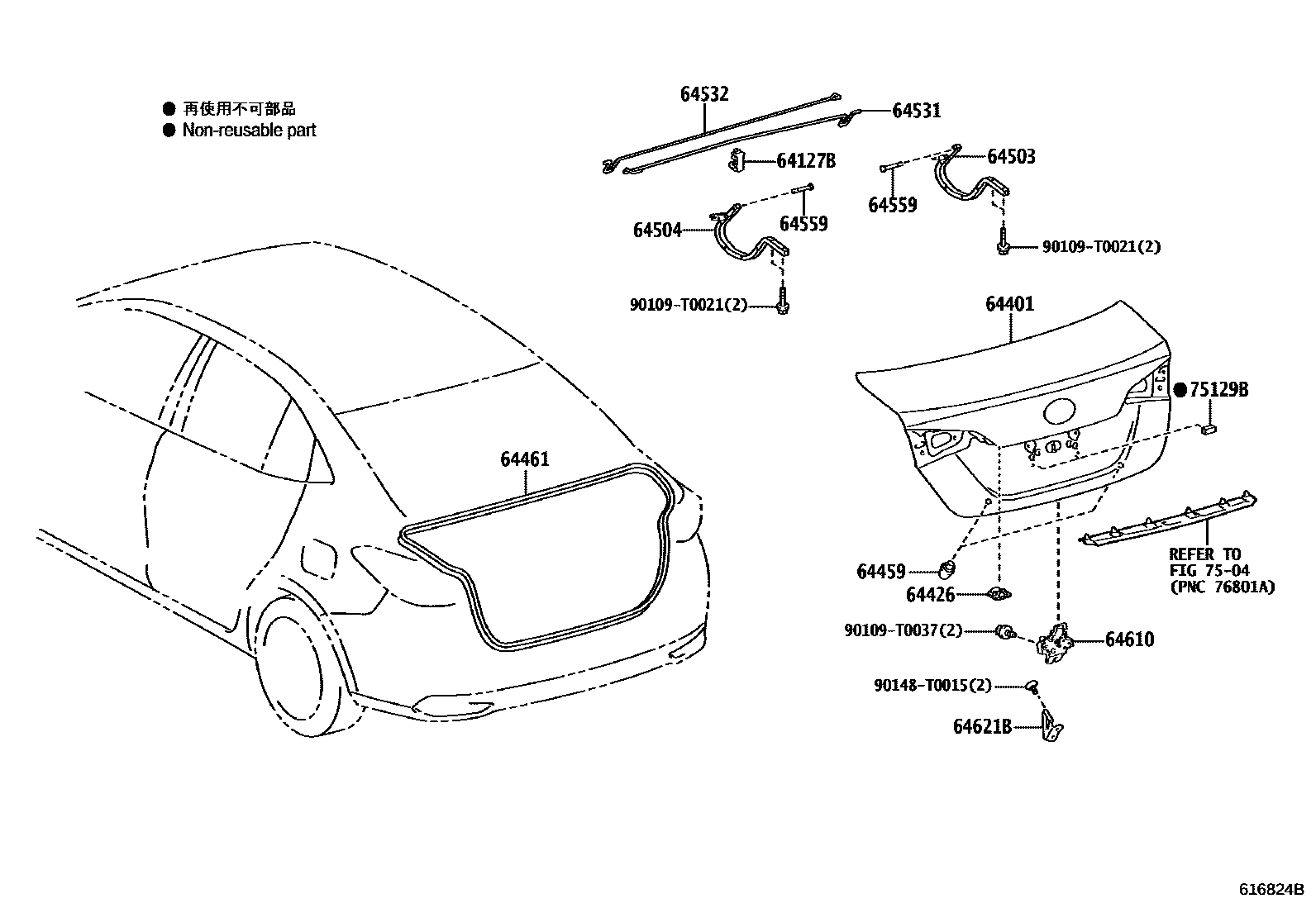

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK CONTROL CAB

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP151..SED202012

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D370iNSP151..SED202012

sub64401-0D490

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64426-0D010iNSP151..SED202012

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP151..SED¥170202012

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D190iNSP151..SED202012

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D090iNSP151..SED202012

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D090iNSP151..SED202012

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D300iNSP151..SED202012

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D290iNSP151..SED202012

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP151..SED¥100202012

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D040iNSP151..SED202012

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151..SED202012

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP151..SED202012

90109T0021

main90109-T0021¥100

90109T0037

main90109-T0037

90148T0015

main90148-T0015

17 parts on this diagram · 2 diagrams in section
