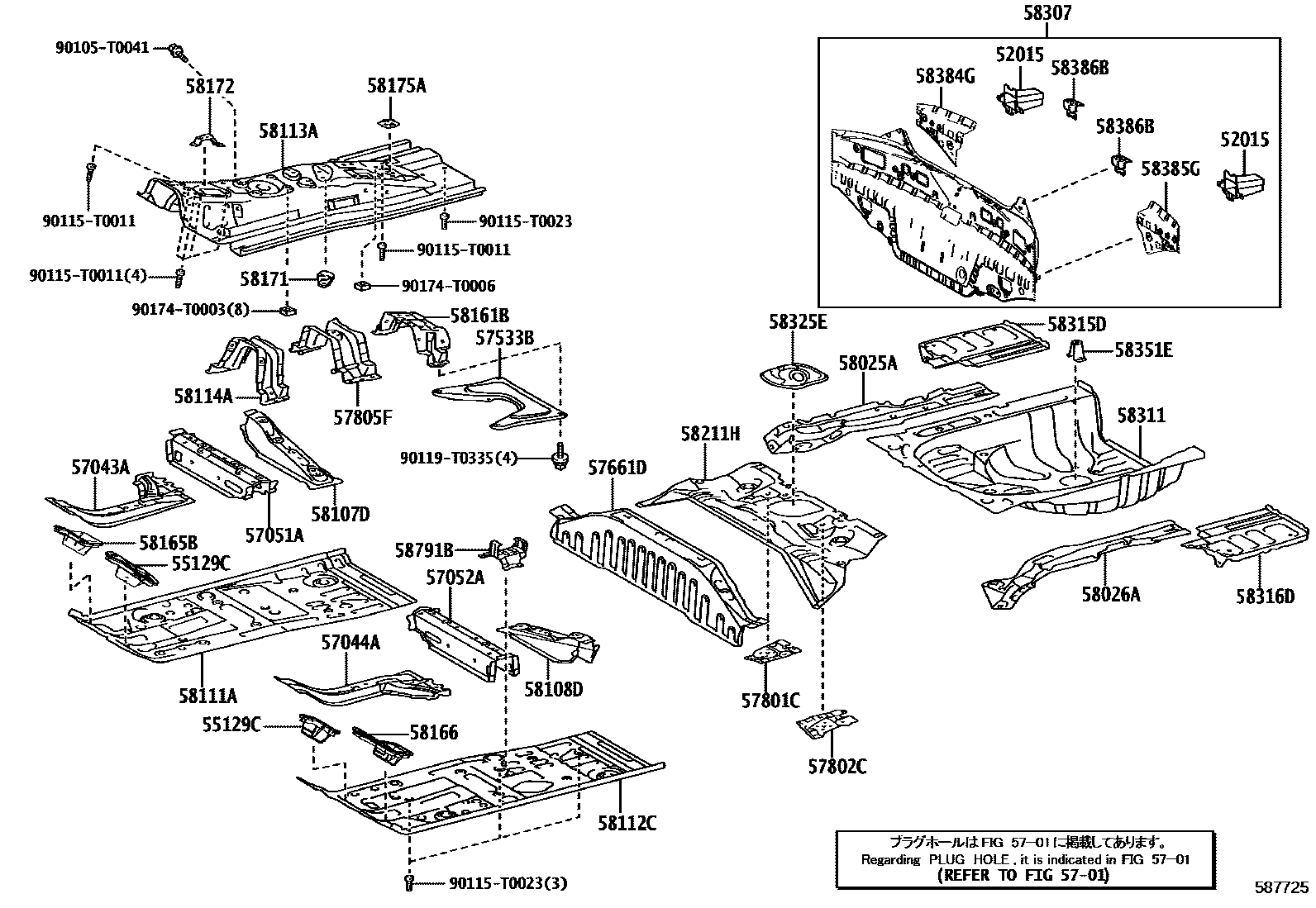

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52015ARM SUB-ASSY, REAR BUMPER

main52015-0D130iNSP151..SED202012

main52015-0D140iNSP151..HB202012

55129CCOVER, DASH PANEL HOLE

main55129-0D110iNSP151202012

RH

main55139-0D030iNSP151202012

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D020iNSP151202012

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D050iNSP151202012

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D130iNSP151202012

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D120iNSP151202012

57533BBRACE, FRONT FLOOR, CENTER

main57533-0D180iNSP151202012

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-0D200iNSP151202012

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D220iNSP151202012

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D220iNSP151202012

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0D100iNSP151202012

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D150iNSP151202012

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D150iNSP151202012

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D210iNSP151202012

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D180iNSP151202012

58111APAN, FRONT FLOOR, RH

main58111-0D060iNSP151202012

58112CPAN, FRONT FLOOR, LH

main58112-0D914iNSP151202012

58113APANEL, FRONT FLOOR, CENTER

main58113-52936iNSP151202012

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D190iNSP151202012

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D200iNSP151202012

58165BCOVER, FRONT FLOOR, RH

main58165-0D010iNSP151202012

58166COVER, FRONT FLOOR, LH

main58166-0D010iNSP151202012

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iNSP151202012

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iNSP151202012

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNSP151202012

58211HPAN, CENTER FLOOR

main58211-0D150iNSP151202012

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D400iNSP151..HB202012

main58307-0D500iNSP151..SED202012

58311PAN, REAR FLOOR

main58311-0D100iNSP151..HB202012

main58311-0D200iNSP151..SED202012

sub58311-0D111

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D060iNSP151..SED202012

main58315-0D090iNSP151..HB202012

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D060iNSP151..SED202012

main58316-0D090iNSP151..HB202012

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D090iNSP151202012

58351EBRACKET, SPARE WHEEL CLAMP

main58351-0D080iNSP151202012

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D110iNSP151..HB202012

main58384-0D320iNSP151..SED202012

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D110iNSP151..HB202012

main58385-0D250iNSP151..SED202012

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D170iNSP151..HB202012

main58386-0D200iNSP151..SED202012

58791BCARRIER, JACK

main58791-0D070iNSP151202012-202209

main58791-0D071iNSP151202210

90105T0041

main90105-T0041

90115T0011

main90115-T0011

90115T0023

main90115-T0023

90119T0335

main90119-T0335

90174T0003

main90174-T0003

90174T0006

main90174-T0006

43 parts on this diagram · 2 diagrams in section
