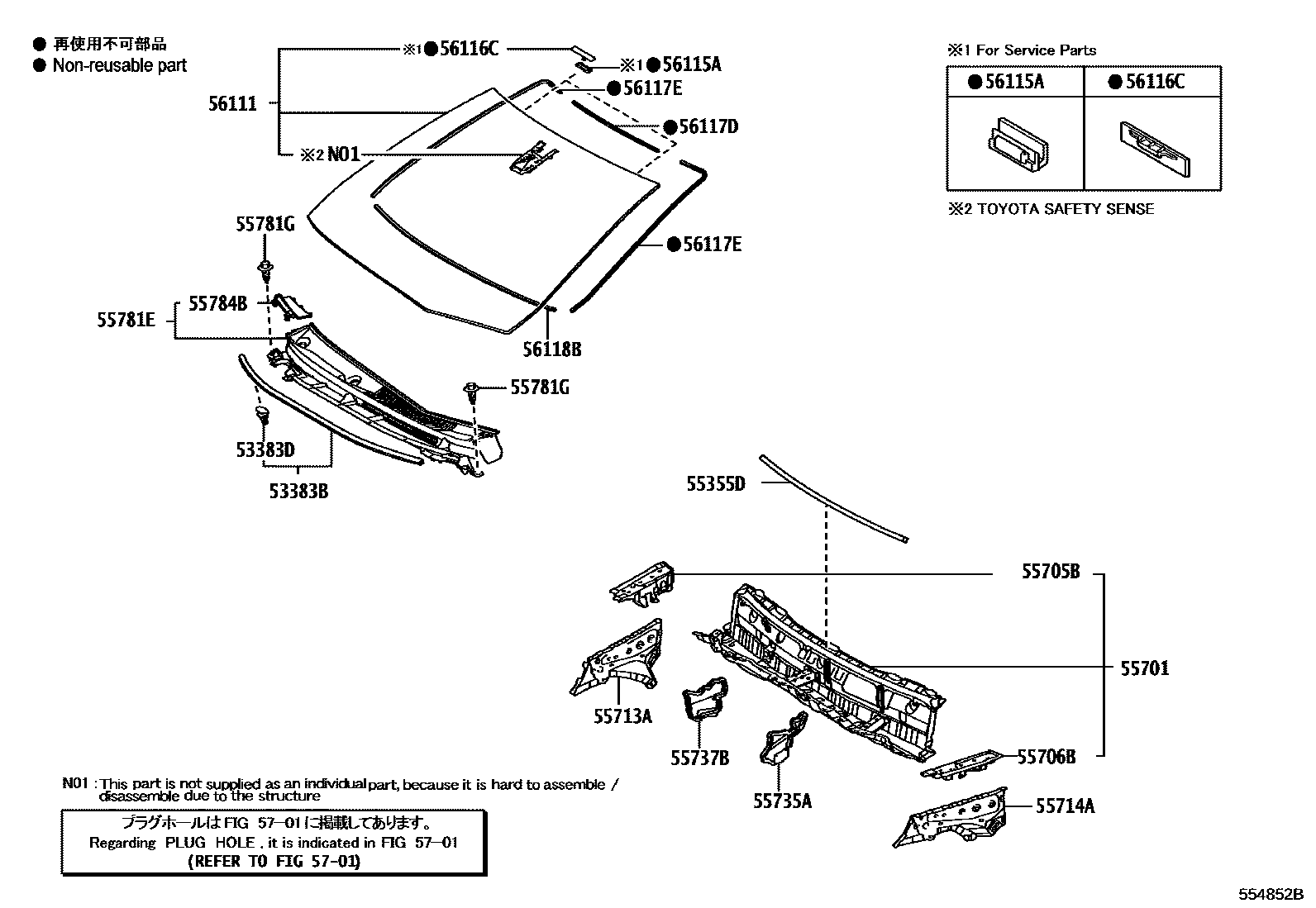

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D180iNSP151202012

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070iNSP151202012

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D480iNSP151202012

55701PANEL SUB-ASSY, COWL

main55700-0D450iNSP151202012

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D120iNSP151202012

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D120iNSP151202012

55713APANEL, COWL TOP SIDE, RH

main55713-0D250iNSP151202012

55714APANEL, COWL TOP SIDE, LH

main55714-0D250iNSP151202012

55735APLATE, WATER GUARD, LH

main55734-0D060iNSP151202012

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D200iNSP151202012

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D322iNSP151202012

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNSP151¥120202012

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D110iNSP151202012

56111GLASS, WINDSHIELD

main56101-0D420iNSP151..D202012

main56101-0D430iNSP151..R202012

main56101-0D710iNSP151..G202012

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP151¥130202012

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP151¥120202012

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D160iNSP151202012

L=549

main56117-0D160iNSP151202012

L=549,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D170iNSP151202012

L=915

main56117-0D170iNSP151202012

L=915,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D180iNSP151202012

L=1182

main56117-0D180iNSP151202012

L=1182,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

5701

20 parts on this diagram · 2 diagrams in section
