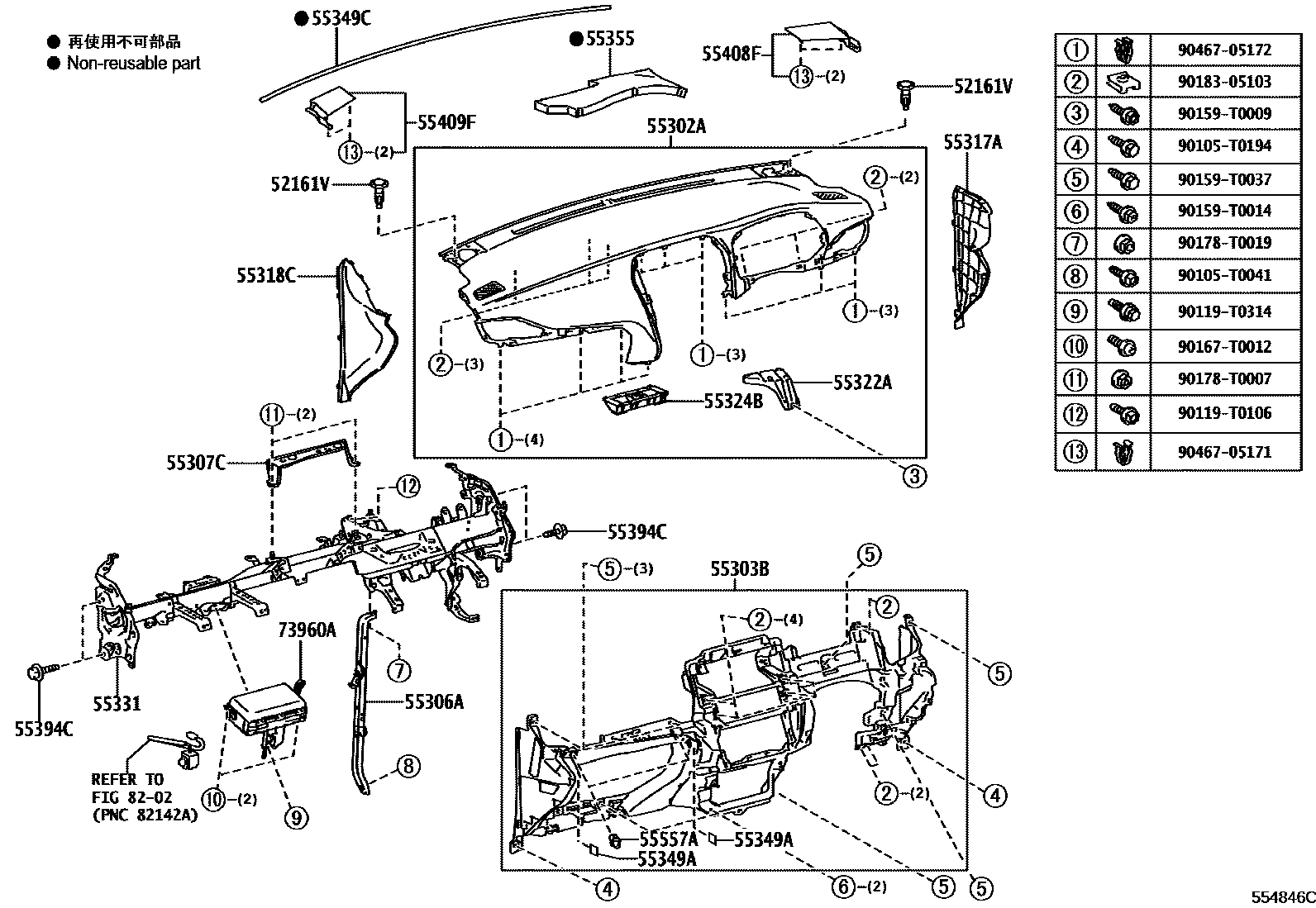

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iNSP151¥120202012

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D260-C0iNSP151202012

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D220-C0iNSP151202012

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D390iNSP151202012

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55308-0D070iNSP151202012

55317APANEL, INSTRUMENT SIDE, RH

main55317-0D280-C0iNSP151202012

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0D240-C0iNSP151202012

BLACK,TRIM2#

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-0D240iNSP151202012

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-0D240iNSP151202012

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D771iNSP151202012

55349ACUSHION, INSTRUMENT PANEL

main55349-0D370iNSP151202012

55349CCUSHION, INSTRUMENT PANEL

main55349-0D240iNSP151202012

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D400iNSP151202012

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP151¥100202012

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-0D020-C0iNSP151202012

BLACK,TRIM2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-0D040-C0iNSP151202012

BLACK,TRIM2#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030iNSP151¥200202012

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D160iNSP151202012

8202

90105T0041

main90105-T0041

90105T0194

main90105-T0194¥90

90119T0106

main90119-T0106¥80

90119T0314

main90119-T0314

90159T0009

main90159-T0009

90159T0014

main90159-T0014

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0007

main90178-T0007¥80

90178T0019

main90178-T0019

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

32 parts on this diagram · 4 diagrams in section
