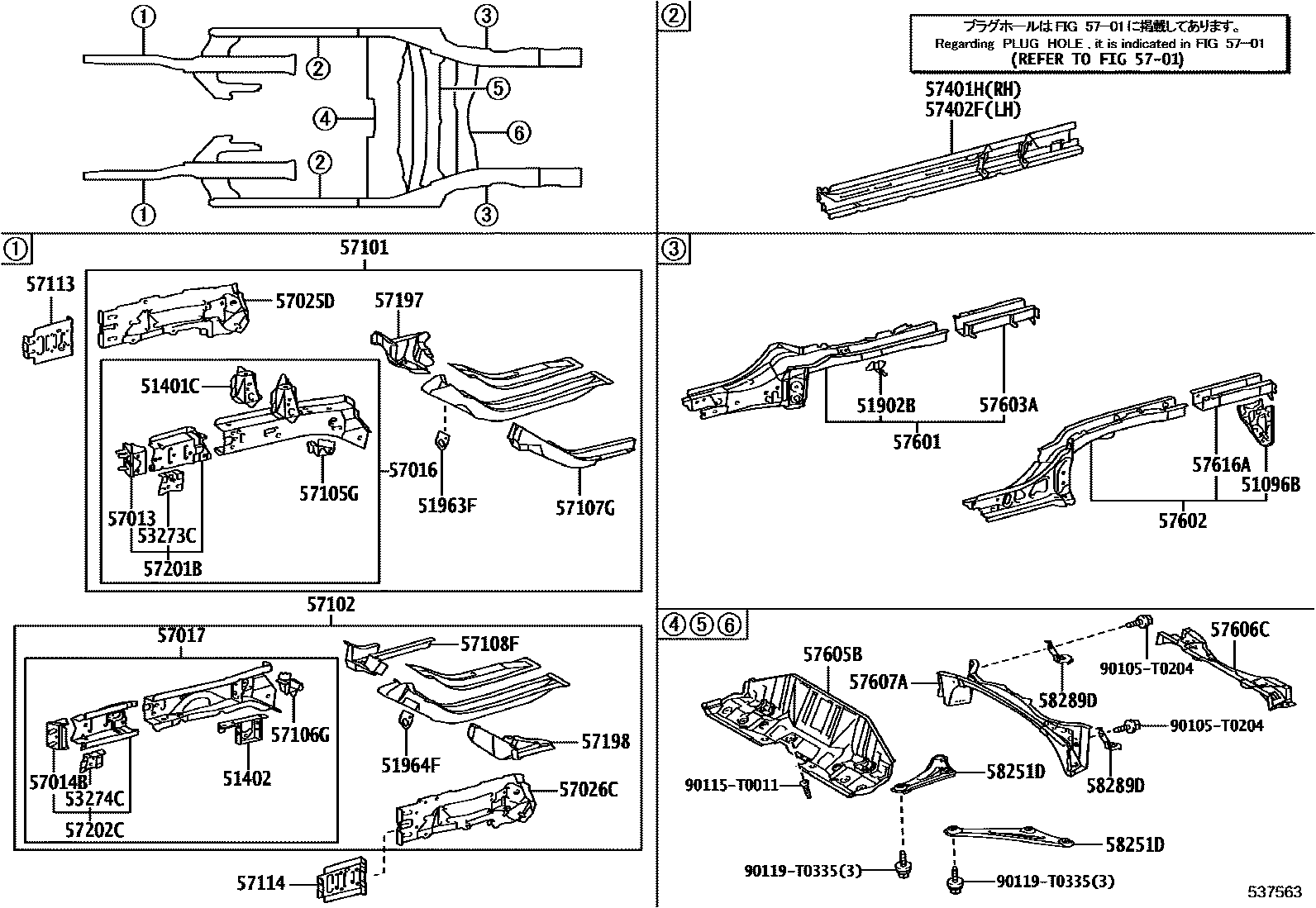

FLOOR SIDE MEMBER

0001 1 0002 1

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D040iNSP151202012

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020iNSP151202012

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020iNSP151202012

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020iNSP151202012

51963FHOOK, TRANSPORT

main51963-0D030iNSP151202012

51964FHOOK, TRANSPORT, LH

main51963-0D030iNSP151202012

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D070iNSP151202012

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D040iNSP151202012

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D061iNSP151202012

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D051iNSP151202012

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D110iNSP151202012

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D180iNSP151202012

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D100iNSP151202012

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D100iNSP151202012

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D140iNSP151202012

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D200iNSP151202012

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040iNSP151202012

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D020iNSP151202012

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-0D060iNSP151202012

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060iNSP151202012

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D030iNSP151202012

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D030iNSP151202012

57197BOX, TORQUE, FRONT RH

main57197-0D040iNSP151202012

57198BOX, TORQUE, FRONT LH

main57198-0D040iNSP151202012

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D021iNSP151202012

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D031iNSP151202012

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D290iNSP151202012

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D260iNSP151202012

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D240iNSP151..HB202012

main57601-0D250iNSP151..SED202012

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D190iNSP151..HB202012

main57602-0D200iNSP151..SED202012

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D090iNSP151..HB202012

main57603-0D100iNSP151..SED202012

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D270iNSP151202012

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D160iNSP151202012

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D110iNSP151202012

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D070iNSP151..HB202012

main57616-0D080iNSP151..SED202012

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D110iNSP151202012

RH

main58252-0D090iNSP151202012

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D120iNSP151202012

RH

main58299-0D120iNSP151202012

LH

90105T0204

main90105-T0204

90115T0011

main90115-T0011

90119T0335

main90119-T0335

41 parts on this diagram · 2 diagrams in section
