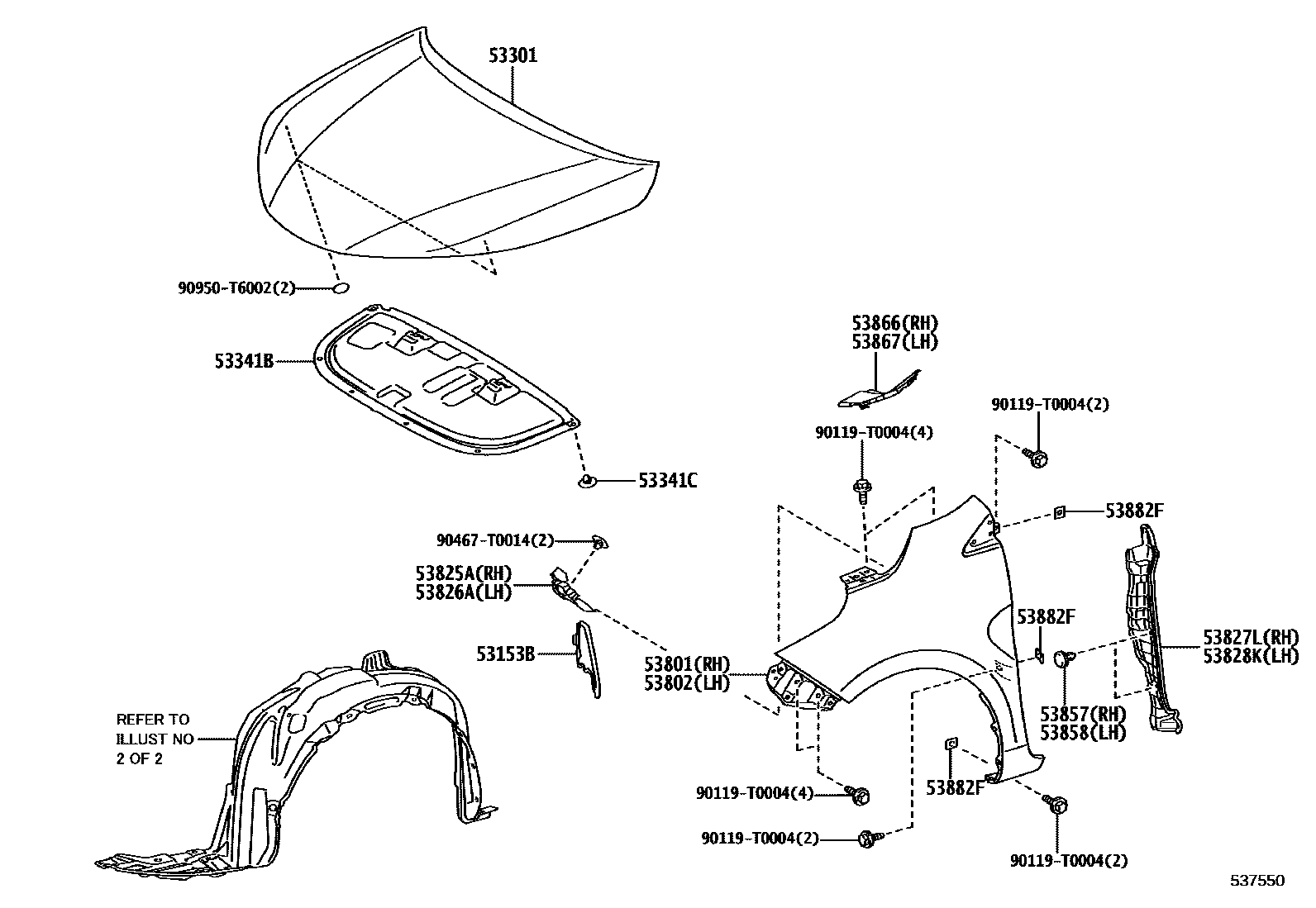

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-0D040iNSP151202012

53301HOOD SUB-ASSY

main53301-0D300iNSP151202012

53341BINSULATOR, HOOD

main53341-0D330iNSP151202012

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iNSP151202012

53801FENDER SUB-ASSY, FRONT RH

main53801-0D150iNSP151..SED..D202012

sub53801-0D090

main53801-0D160iNSP151..HB;NSP151..SED..(G,R)202012

53802FENDER SUB-ASSY, FRONT LH

main53802-0D150iNSP151..SED..D202012

sub53802-0D090

main53802-0D160iNSP151..HB;NSP151..SED..(G,R)202012

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D060iNSP151202012

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D060iNSP151202012

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D231iNSP151202012

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D231iNSP151202012

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iNSP151202012

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iNSP151202012

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D220iNSP151202012

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D220iNSP151202012

53882FSEAL, FRONT FENDER

main53882-0K020iNSP151202012

90119T0004

main90119-T0004

90467T0014

main90467-T0014

90950T6002

main90950-T6002

18 parts on this diagram · 2 diagrams in section
