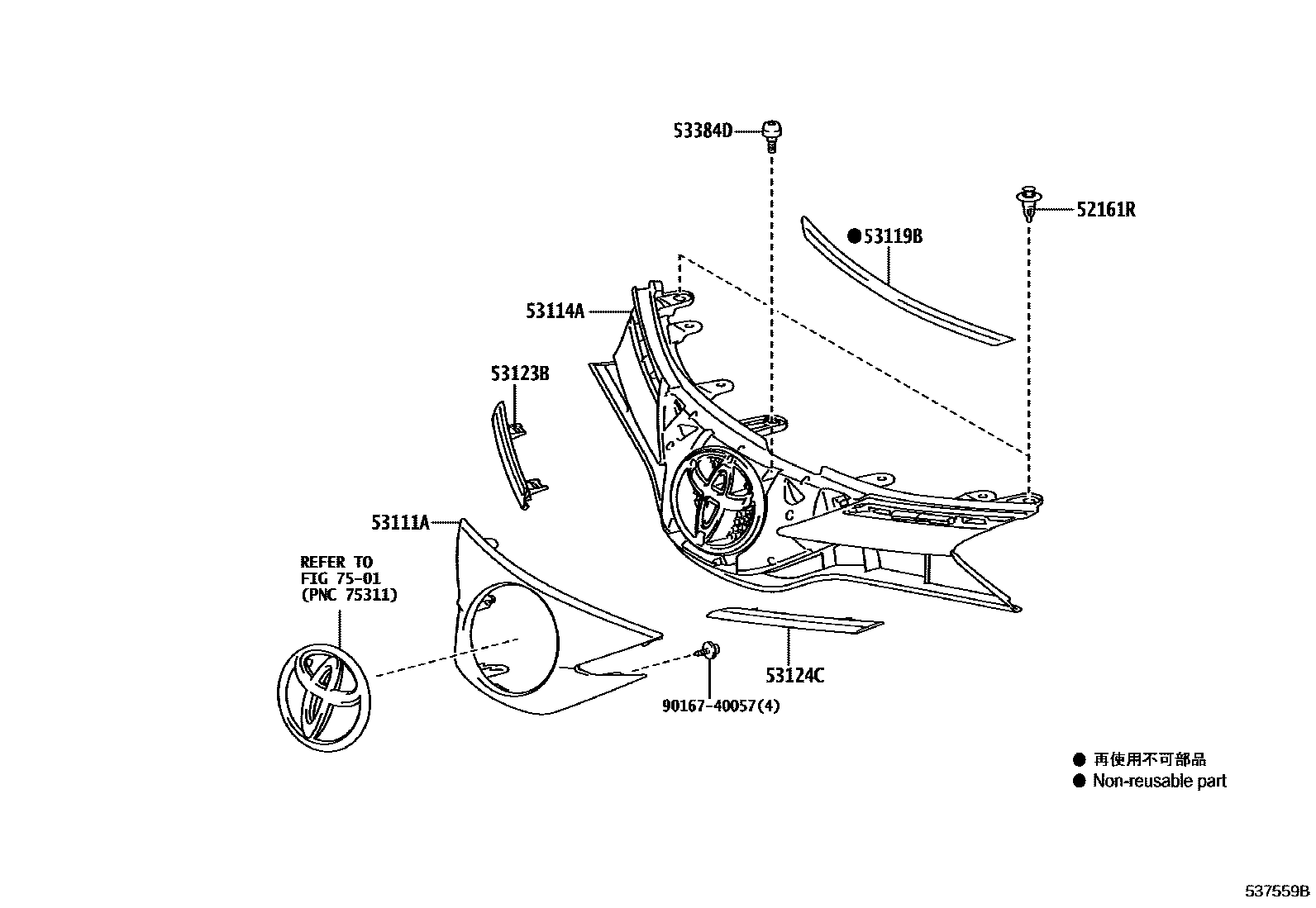

RADIATOR GRILLE

0001 1W(HALOGEN HEADLAMP) 0002 1W(LED HEADLAMP)

52161RPIECE, FRONT BUMPER

main52161-0K040iNSP151202012

53111GRILLE, RADIATOR

main53111-0D880

main53111-YP906

main53111-0D913

53111AGRILLE, RADIATOR, OUTSIDE

main53111-0D880iNSP151..HB..D202012

main53111-0D913iNSP151..G,R;NSP151..SED..D202012

53114AGRILLE, RADIATOR, INNER

main53114-0D020iNSP151..HB..D202012

main53114-0D030iNSP151..G,R;NSP151..SED..D202012

53119BPROTECTOR, RADIATOR GRILLE

main53119-0D010iNSP151..HB..D202012

main53119-0D020iNSP151..G,R;NSP151..SED..D202012

MLM PACKAGE

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-0D140iNSP151..G202012

main53123-0D260iNSP151..HB..D202012

main53123-0D310iNSP151..R;NSP151..SED..D202012

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-0D130iNSP151..G202012

main53124-0D380iNSP151..HB..D202012

main53124-0D430iNSP151..R;NSP151..SED..D202012

53384DCUSHION, HOOD, CENTER

main53119-12150iNSP151202012

7501

9016740057

main90167-40057

10 parts on this diagram · 2 diagrams in section
