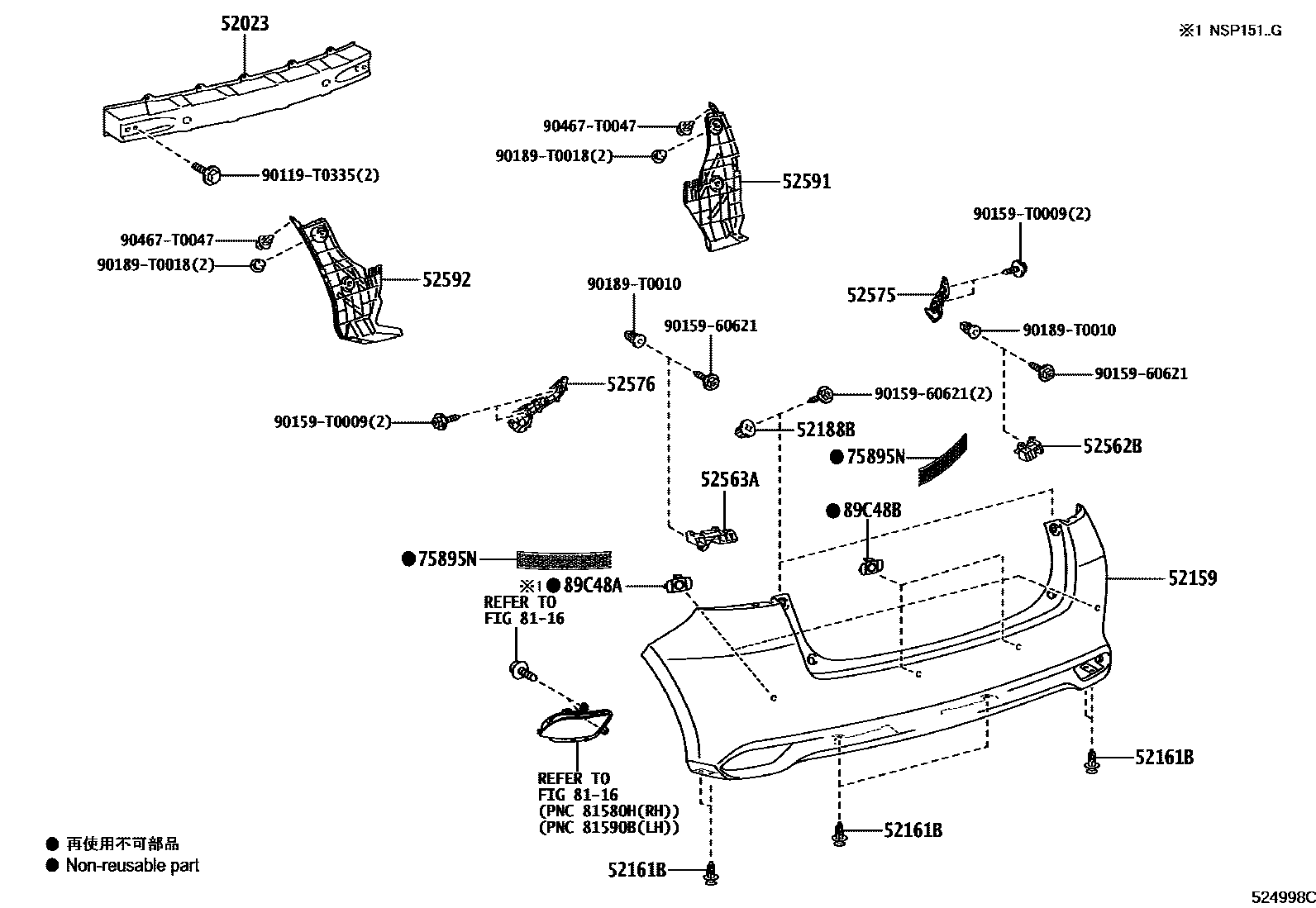

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D190iNSP151202012

52159COVER, REAR BUMPER

main52159-0U964iNSP151..SED..(D,R)202012

PAINT REQ.

main52159-0U965iNSP151..SED..G202012

PAINT REQ.

main52159-0U969iNSP151..HB..(D,R)202012

PAINT REQ.

main52159-0U972iNSP151..HB..G202012

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNSP151..SED202012

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP151202012

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0D170iNSP151..HB202012

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0D070iNSP151..HB202012

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D340iNSP151..SED202012

main52575-0D400iNSP151..HB202012

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D330iNSP151..SED202012

main52576-0D390iNSP151..HB202012

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D400iNSP151..SED202012

main52591-0D460iNSP151..HB202012

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D400iNSP151..SED202012

main52592-0D460iNSP151..HB202012

75895NTAPE, MOULDING, NO.1

main75895-53010iNSP151202012

8116

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0D030iNSP151..G202012

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0D030iNSP151202012

90119T0335

main90119-T0335

9015960621

main90159-60621

90159T0009

main90159-T0009

90189T0010

main90189-T0010

90189T0018

main90189-T0018

90467T0047

main90467-T0047

20 parts on this diagram · 2 diagrams in section
