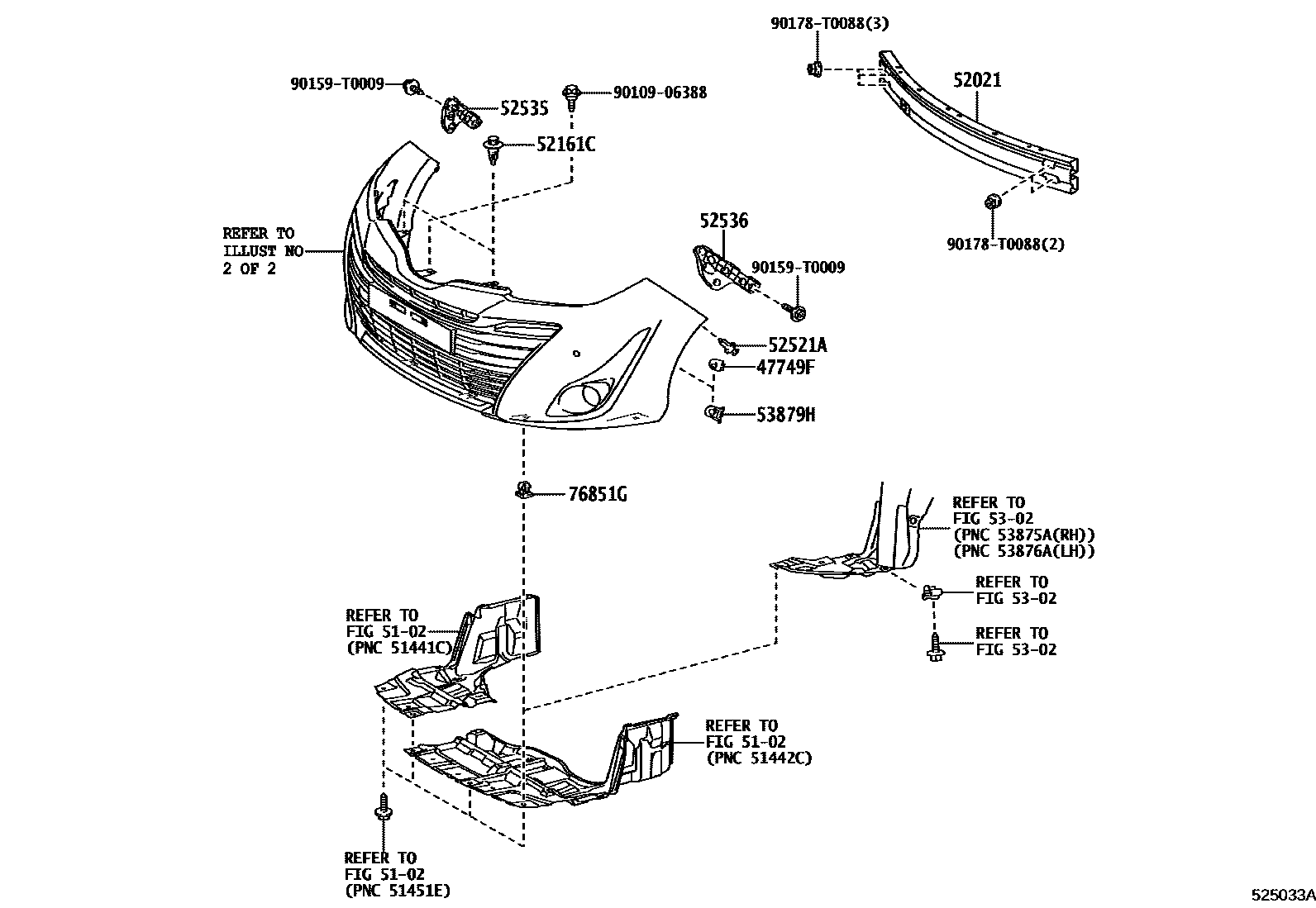

FRONT BUMPER & BUMPER STAY

0001 1 0002 1GR SPORT&MLM PACKAGE OR MLM P0003 1 0004 1GR SPORT&MLM PACKAGE OR MLM P

47749FCLIP, PIN HOLD

main47749-33030iNSP151202012

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D140iNSP151202012

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP151202012

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP151202012-202104

main90467-T0047iNSP151202104

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D230iNSP151202012

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D230iNSP151202012

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iNSP151202012

76851GGROMMET, SCREW, NO.1

main90189-06237iNSP151202012-202104

main90189-T0024iNSP151202104

9010906388

main90109-06388

90159T0009

main90159-T0009

90178T0088

main90178-T0088

13 parts on this diagram · 4 diagrams in section
