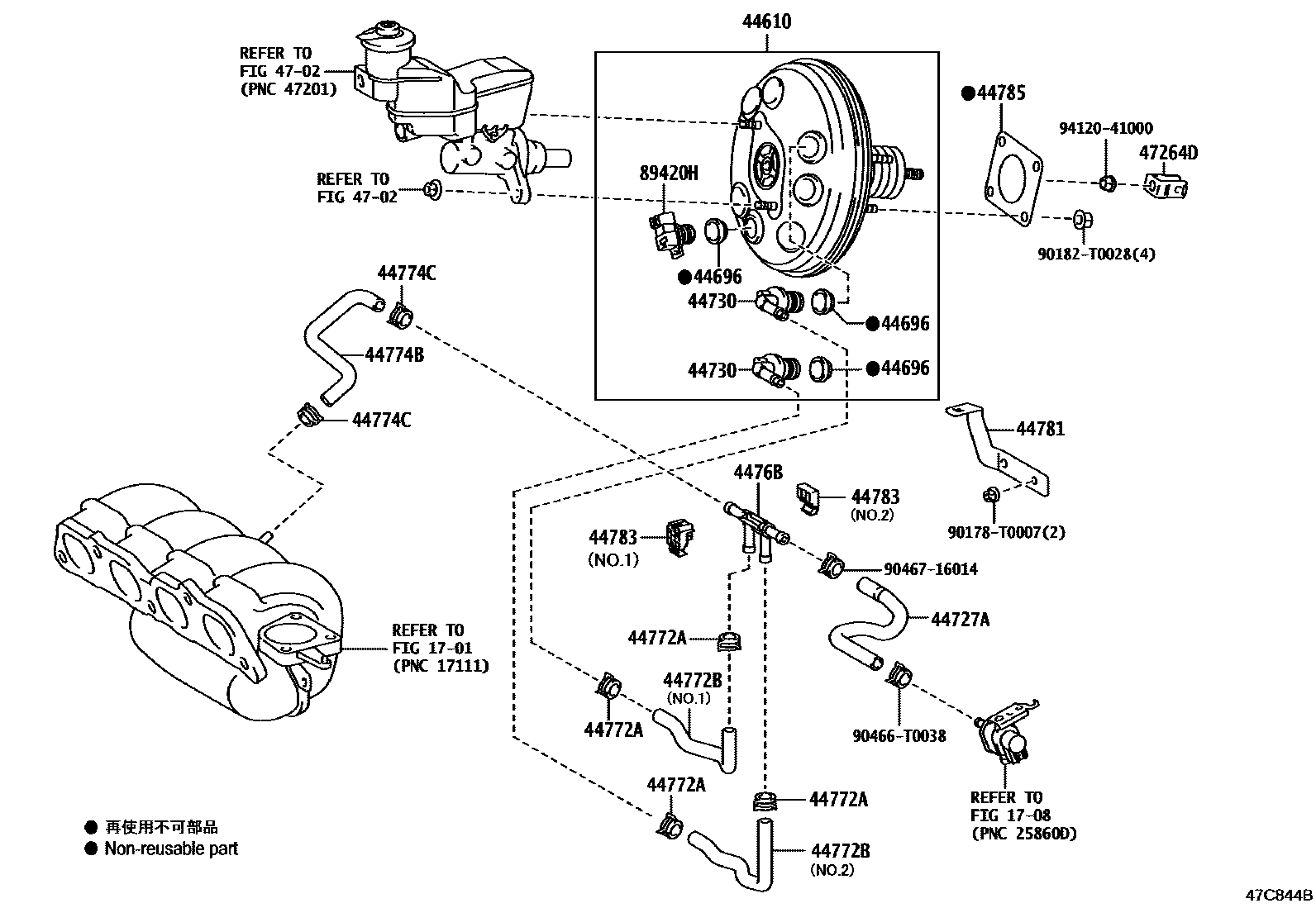

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

1708

44610BOOSTER ASSY, BRAKE

main44610-0D680iNSP151..CVT..(D,R)202012

main44610-0D710iNSP151..G202012

main44610-0DB50iNSP151..5F202012

44696GROMMET, CHECK VALVE

main90016-AT003iNSP151..5F¥120202012

44727AHOSE, AIR, NO.2

main17342-0Y070iNSP151..CVT202012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iNSP151..CVT¥1,300202012

main44730-60070iNSP151..5F¥1,300202012

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iNSP151..CVT¥1,250202012

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D410iNSP151..5F202012

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNSP151..5F¥230202012

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-0D430iNSP151..CVT202012

NO.1:REFER ILLUST.

main44772-0D440iNSP151..CVT202012

NO.2:REFER ILLUST.

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-0D190iNSP151..CVT202012

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNSP151..CVT¥230202012

44781BRACKET, HOSE

main44781-0D120iNSP151..CVT202012

44783CLAMP, VACUUM HOSE

main44783-0D020iNSP151..CVT202012

NO.1:REFER ILLUST.

main44783-0D030iNSP151..CVT202012

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-0D030iNSP151202012

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D040iNSP151202012

89420HSENSOR ASSY, VACUUM

main89421-52020iNSP151¥5,900202012

90178T0007

main90178-T0007¥80

90182T0028

main90182-T0028

90466T0038

main90466-T0038

9046716014

main90467-16014¥230

9412041000

main94120-41000¥80

23 parts on this diagram · 2 diagrams in section
