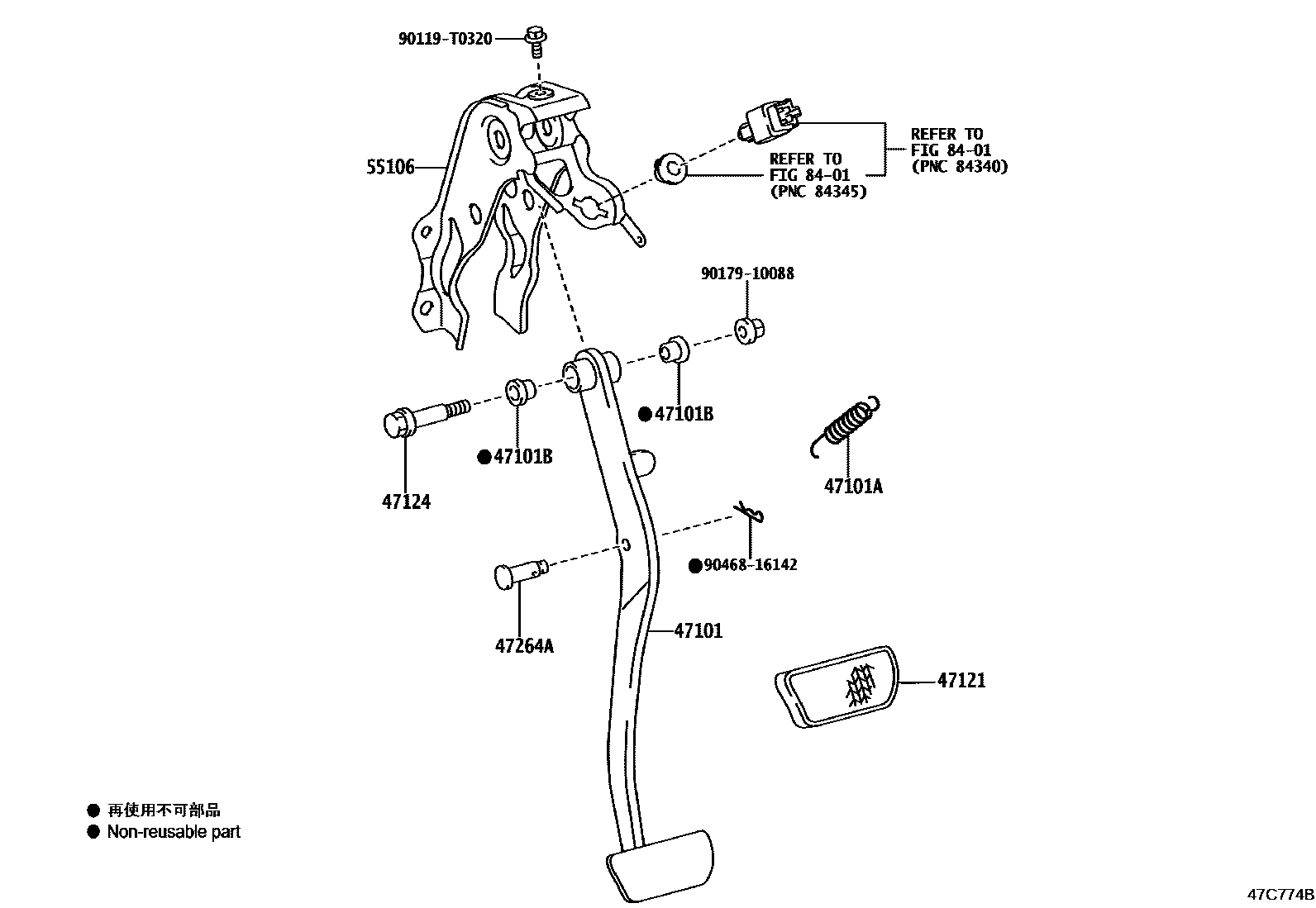

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D350iNSP151..5F202012

main47101-0D360iNSP151..CVT202012

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-T0015iNSP151202012

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP151202012

47121PAD, BRAKE PEDAL

main31321-0D070iNSP151..5F202012

(L)

main31321-52010iNSP151..5F202012

(J)

main47121-0D070iNSP151..CVT202012

(L)

main47121-52010iNSP151..CVT202012

(J)

47124SHAFT, BRAKE PEDAL

main90109-T0044iNSP151202012

47264APIN(FOR PUSH ROD)

main90249-08051iNSP151202012

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D180iNSP151202012

8401

90119T0320

main90119-T0320

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
