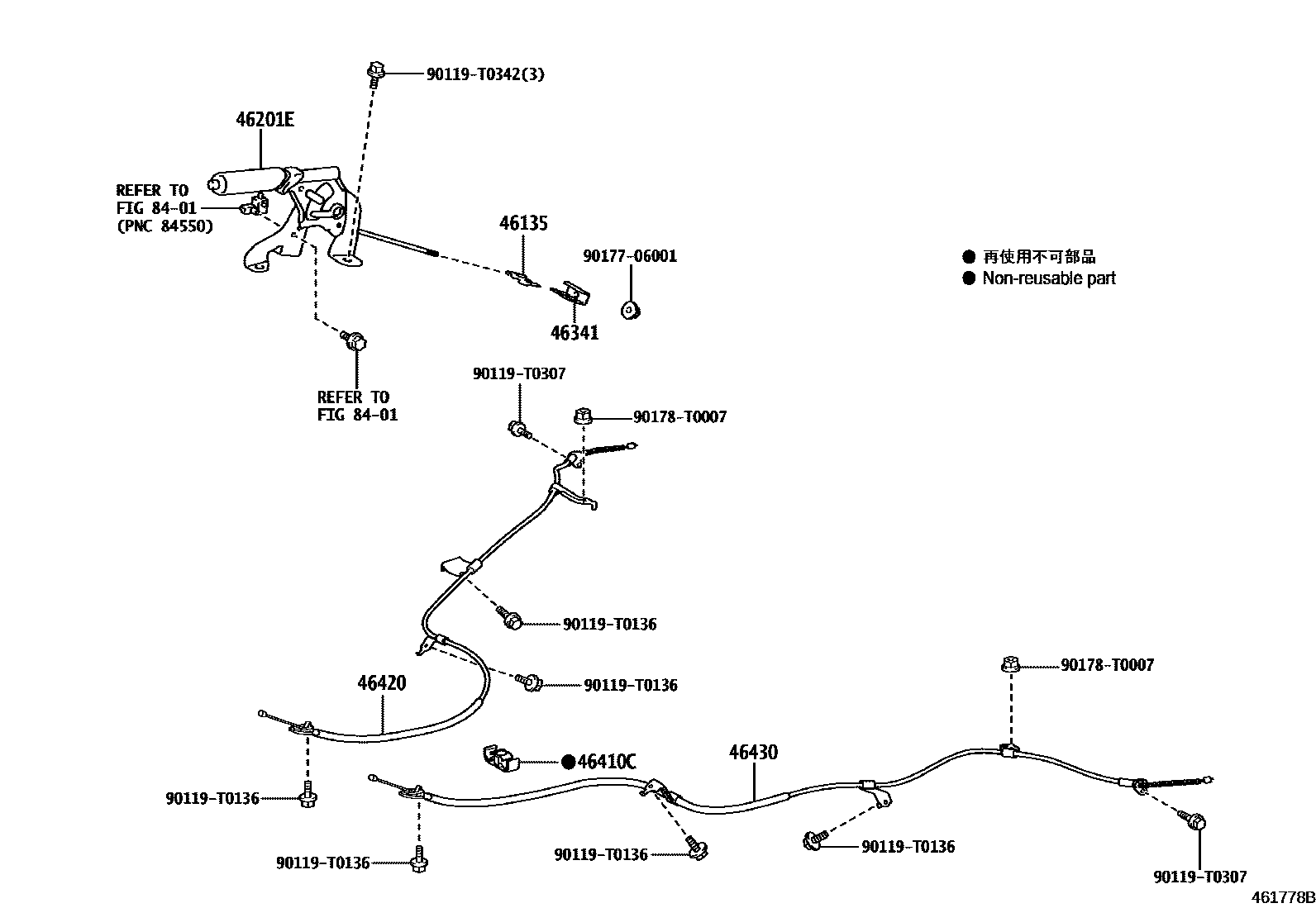

PARKING BRAKE & CABLE

0001 1REAR DRUM BRAKE 0002 1REAR DISC BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D030iNSP151202012

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D311-C0iNSP151..D,R202012

BLACK,TRIM2#

main46201-0D341-C0iNSP151..G202012

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D070iNSP151202012

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D020iNSP151202012

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D260iNSP151..D,R202012

main46420-0D280iNSP151..G202012

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D260iNSP151..D,R202012

main46430-0D280iNSP151..G202012

8401

90119T0136

main90119-T0136

90119T0307

main90119-T0307

90119T0342

main90119-T0342

9017706001

main90177-06001

90178T0007

main90178-T0007

12 parts on this diagram · 2 diagrams in section
