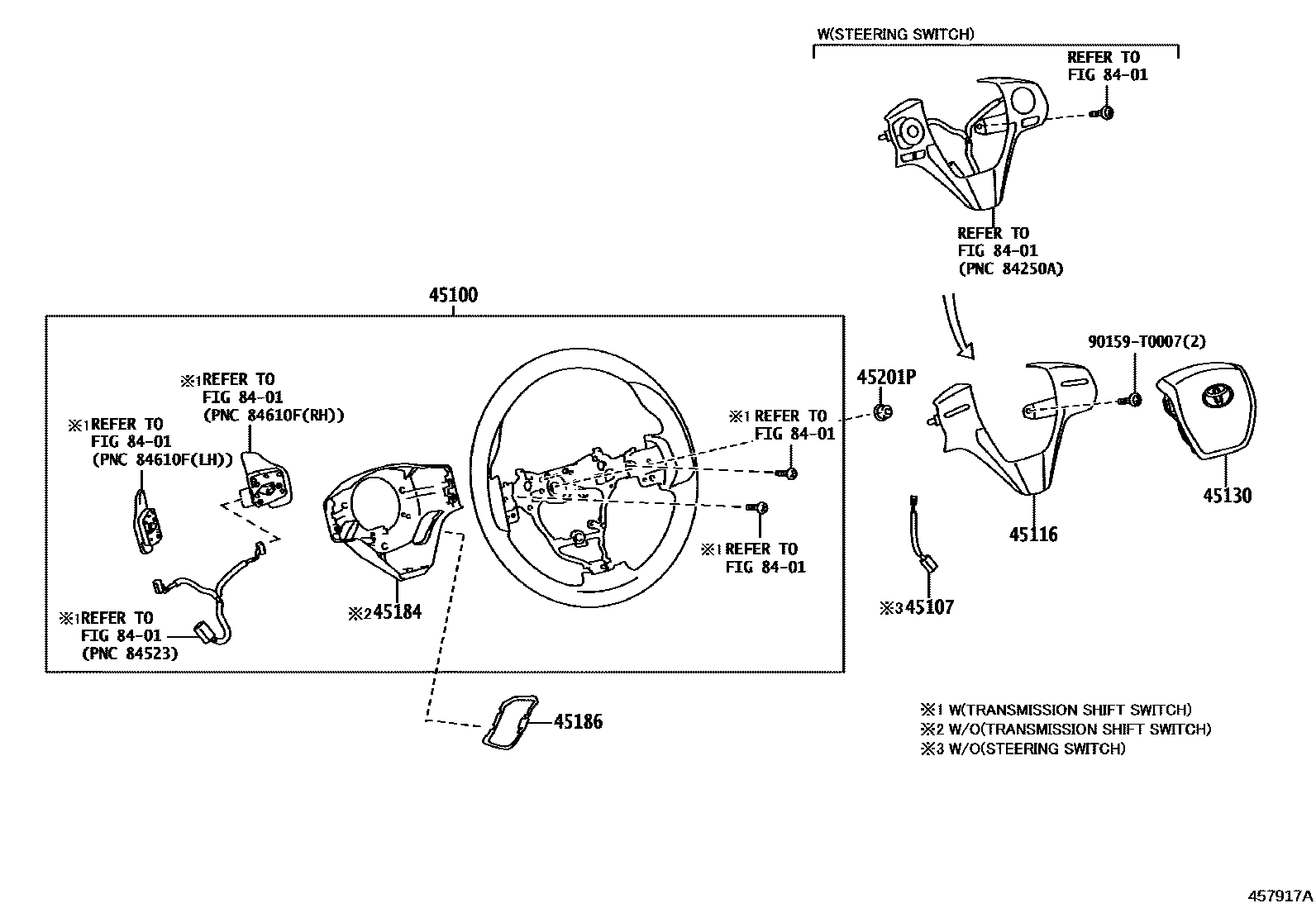

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-02W30-C0iNSP151..D,R202012

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0D730-C4iNSP151..HB..G202012-202206

3-SPOKE,LEATHER,BLACK / BLUE NO.120,TRIM2#

sub45100-0D731

main45100-0D731-C4iNSP151..HB..G202207

3-SPOKE,LEATHER,BLACK / BLUE NO.120,TRIM2#

main45100-0D840-C3iNSP151..SED..G202012-202207

3-SPOKE,LEATHER,LT.GRAY NO.094,TRIM20

sub45100-0D841

main45100-0D840-C4iNSP151..SED..G202012-202207

3-SPOKE,LEATHER,BLACK,TRIM23

sub45100-0D841

main45100-0D841-C3iNSP151..SED..G202208

3-SPOKE,LEATHER,BLACK / LT.GRAY NO.094,TRIM20

main45100-0D841-C4iNSP151..SED..G202208

3-SPOKE,LEATHER,BLACK / GR RED GOSEN Y55,TRIM23

45107WIRE SUB-ASSY, HORN BUTTON

main45107-52010iNSP151..D¥170202012

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-0D150-C0iNSP151..D202012

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-0D410-C0iNSP151202012

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02370-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02250-C0iNSP151202012

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iNSP151¥130202012

8401

90159T0007

main90159-T0007

9 parts on this diagram · 1 diagram in section
