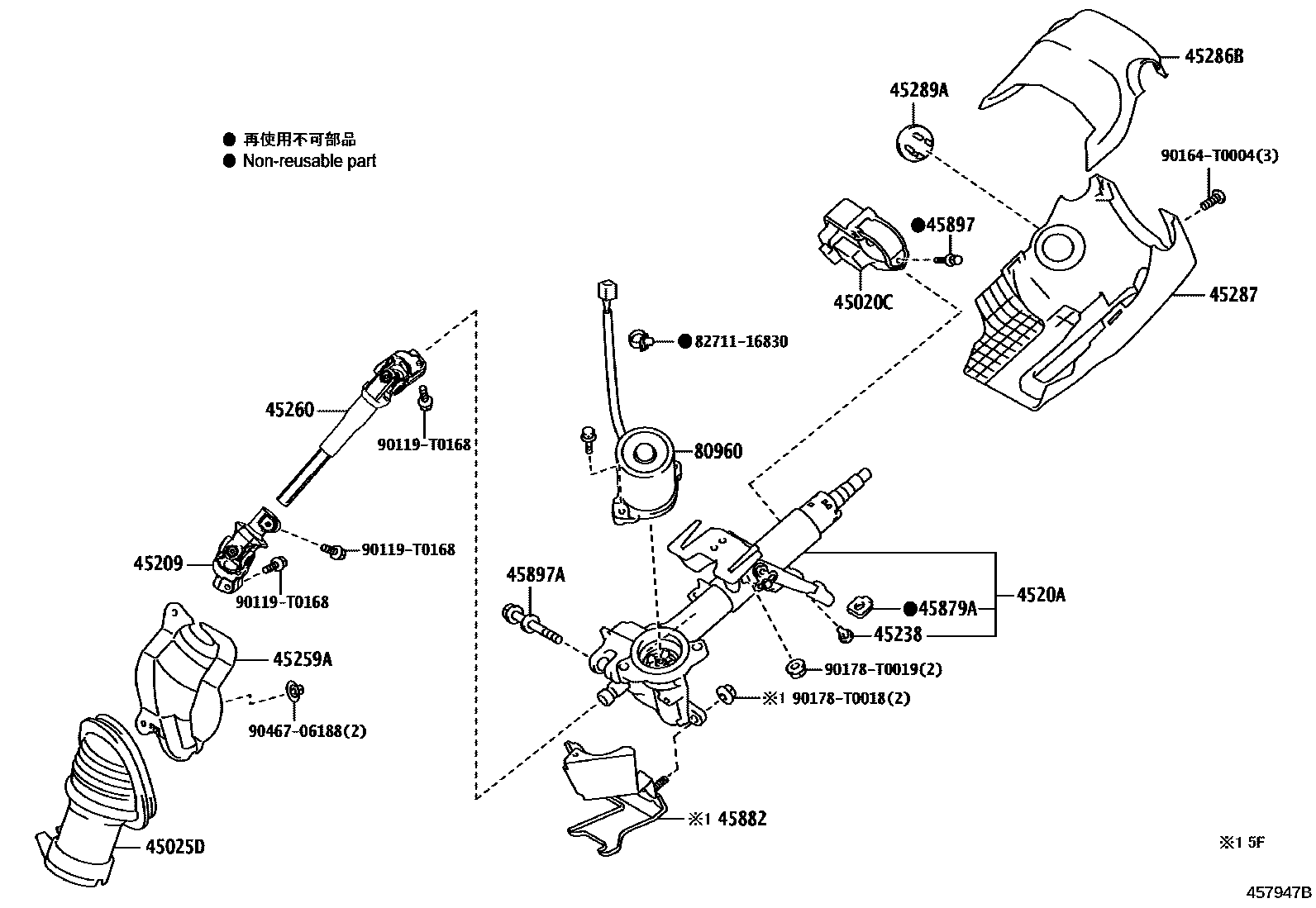

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iNSP151202012

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D241iNSP151202012

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D090iNSP151202012

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D451iNSP151202012

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP151¥70202012

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D250iNSP151202012

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D251iNSP151202012

45286BCOVER, STEERING COLUMN, UPR

main45286-0D320-C0iNSP151202012

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-0D290-C0iNSP151202012

BLACK,TRIM2#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D020-C0iNSP151202012

BLACK,TRIM2#

sub45289-0D020

45879ACAPSULE, BREAK AWAY

main45879-0D040iNSP151202012

45882BRACKET, STEERING COLUMN PROTECTOR

main45882-0D010iNSP151..5F202012

45897BOLT, STEERING LOCK SET

main45897-12020iNSP151¥210202012

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNSP151¥540202012

80960MOTOR ASSY, POWER STEERING

main80960-0D360iNSP151202012

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830¥100

90119T0168

main90119-T0168

90164T0004

main90164-T0004¥110

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9046706188

main90467-06188¥160

21 parts on this diagram · 1 diagram in section
