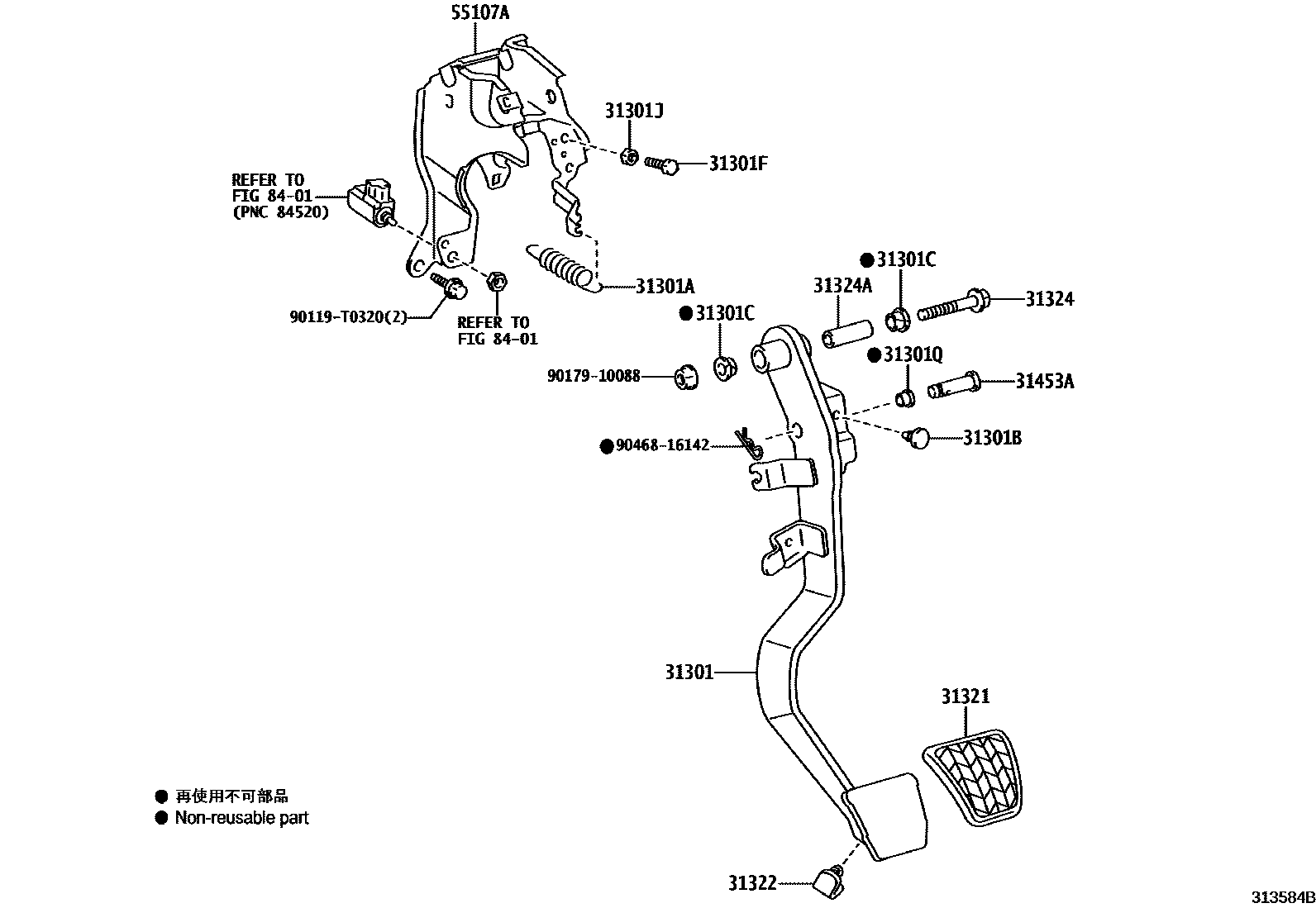

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D241iNSP151..5F202012

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14055iNSP151..5F202012

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP151..5F202012

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNSP151..5F202012

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91112-61025iNSP151..5F202012

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNSP151..5F202012

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08002iNSP151..5F202012

31321PAD, CLUTCH PEDAL

main31321-0D070iNSP151..5F202012

(L)

main31321-52010iNSP151..5F202012

(J)

31322STOPPER, CLUTCH PEDAL

main31322-52010iNSP151..5F202012

31324SHAFT, CLUTCH PEDAL

main90105-10444iNSP151..5F202012

(J)

main90105-T0089iNSP151..5F202012

(L)

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNSP151..5F202012

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP151..5F202012

L=31.5

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D290iNSP151..5F202012

8401

90119T0320

main90119-T0320

9017910088

main90179-10088

9046816142

main90468-16142

17 parts on this diagram · 2 diagrams in section
