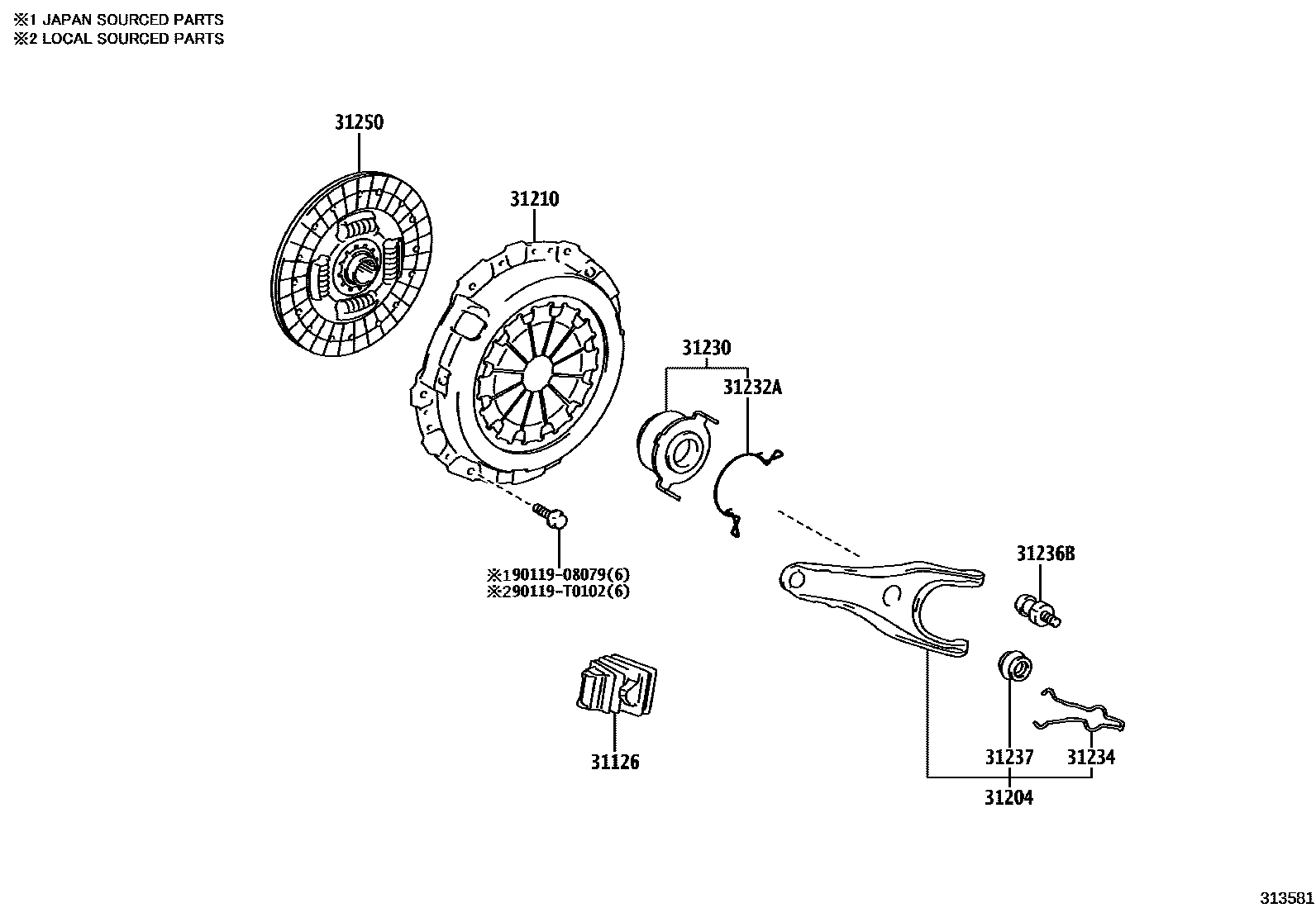

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31234SPRING, RELEASE FORK ANTI-RATTLE
31236BSUPPORT, RELEASE FORK
31237BOOT, CLUTCH RELEASE FORK SUPPORT
31250DISC ASSY, CLUTCH
9011908079
main90119-08079
90119T0102
main90119-T0102
11 parts on this diagram · 1 diagram in section
