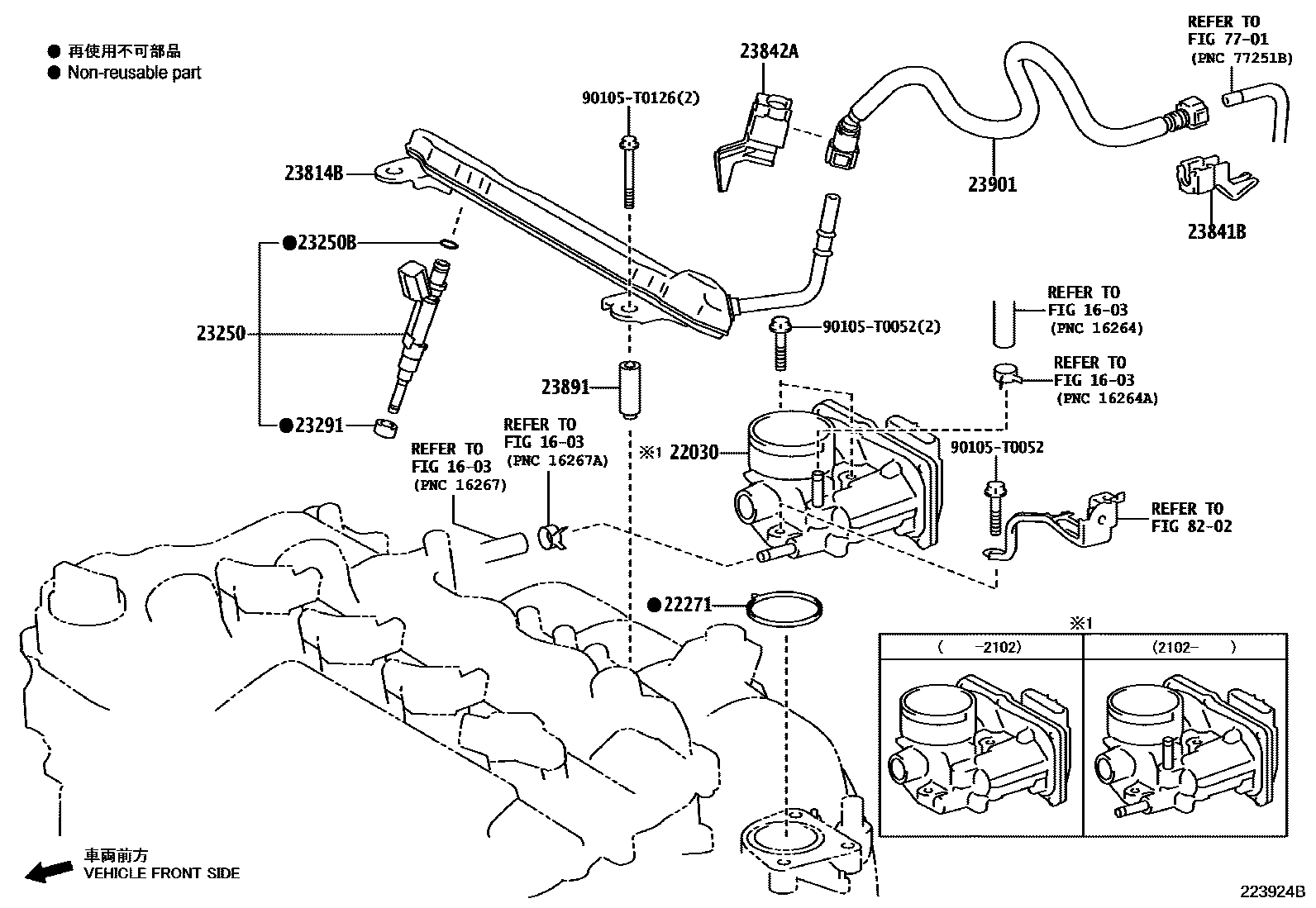

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP151..CVT202101-202104

main22030-0Y140i2NRFE..NSP151202012-202101

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP151202012

23250INJECTOR ASSY, FUEL

main23209-09340i2NRFE..NSP151202012

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i2NRFE..NSP151202012

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRFE..NSP151202012

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NRFE..NSP151202012

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y050i2NRFE..NSP151202012

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0Y040i2NRFE..NSP151202012

23891SPACER, FUEL DELIVERY

main23891-47040i2NRFE..NSP151202012

23901TUBE SUB-ASSY, FUEL

main23901-0Y150i2NRFE..NSP151202012

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

15 parts on this diagram · 1 diagram in section
