IGNITION COIL & SPARK PLUG / GLOW PLUG

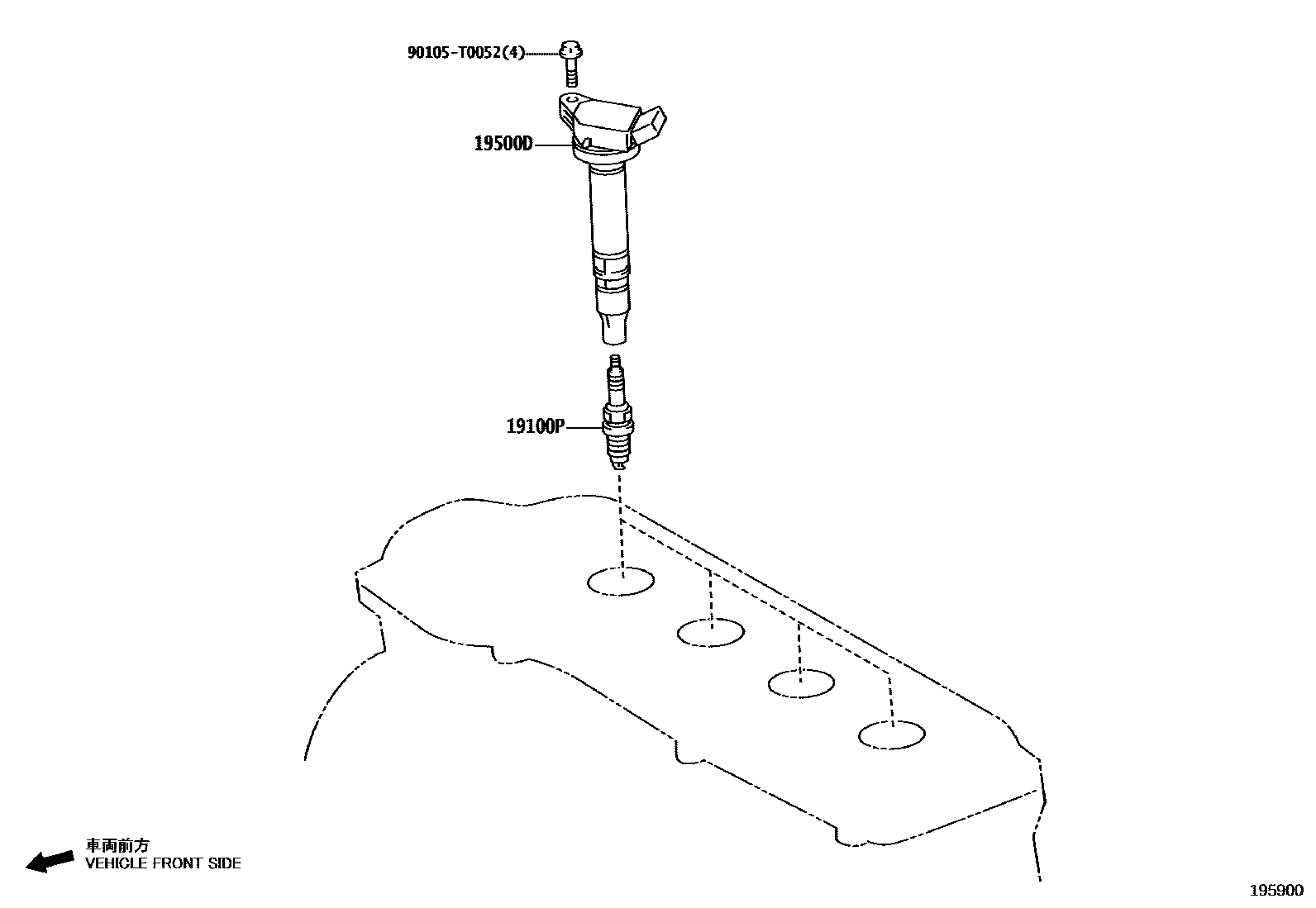

Parts diagram

19100PPLUG, SPARK

main9004A-91068×4i202012

SC16HR11

19500DCOIL, IGNITION, NO.1

main90919-T2010×4i202012

90105T0052

main90105-T0052

3 parts on this diagram · 1 diagram in section
