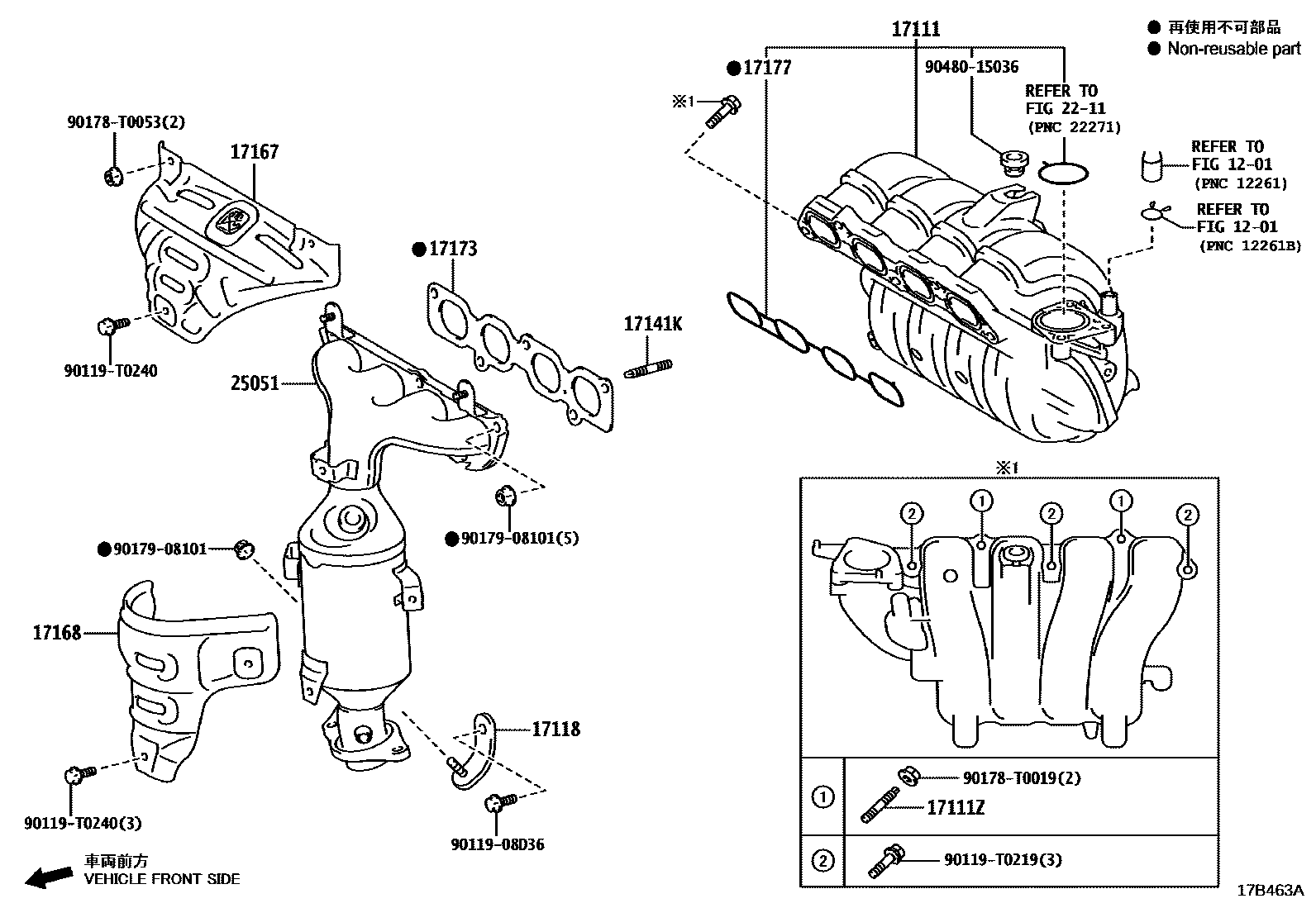

MANIFOLD

1201

17111MANIFOLD, INTAKE

main17120-0Y050i202012-202108

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17118STAY, MANIFOLD

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i¥80202012

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i¥600202012

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

9011908D36

90119T0219

90119T0240

90178T0019

90178T0053

9017908101

9048015036

18 parts on this diagram · 1 diagram in section
