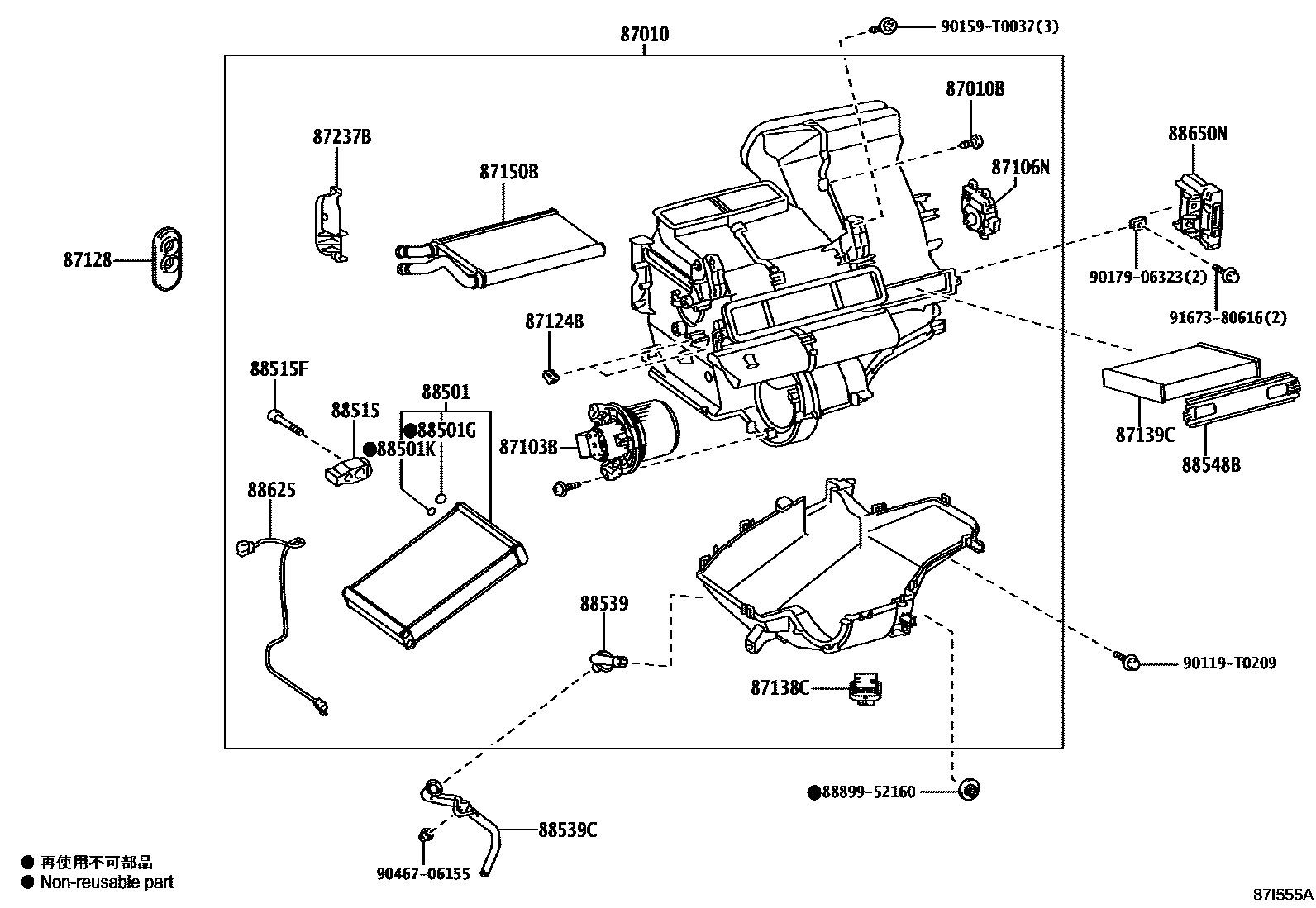

HEATING & AIR CONDITIONING - COOLER UNIT
87010BSCREW(FOR AIR CONDITIONER UNIT)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87124BCLAMP, HEATER
87128GROMMET, HEATER
87138CRESISTOR, BLOWER
sub87138-0K290
87139CFILTER, CLEAN AIR
STANDARD
POLLEN DEODORANT
87150BRADIATOR ASSY, HEATER
87237BCOVER, HEATER PIPING
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=10.2,OD=15.0
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=13.4,OD=18.2
ID=10.8,OD=15.6
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88548BCASE, AIR FILTER
88650NAMPLIFIER ASSY, AIR CONDITIONER
8889952160COVER, EVAPORATOR
main88899-52160
90119T0209
main90119-T0209
90159T0037
main90159-T0037
9017906323
main90179-06323
9046706155
main90467-06155
9167380616
main91673-80616
26 parts on this diagram · 2 diagrams in section
