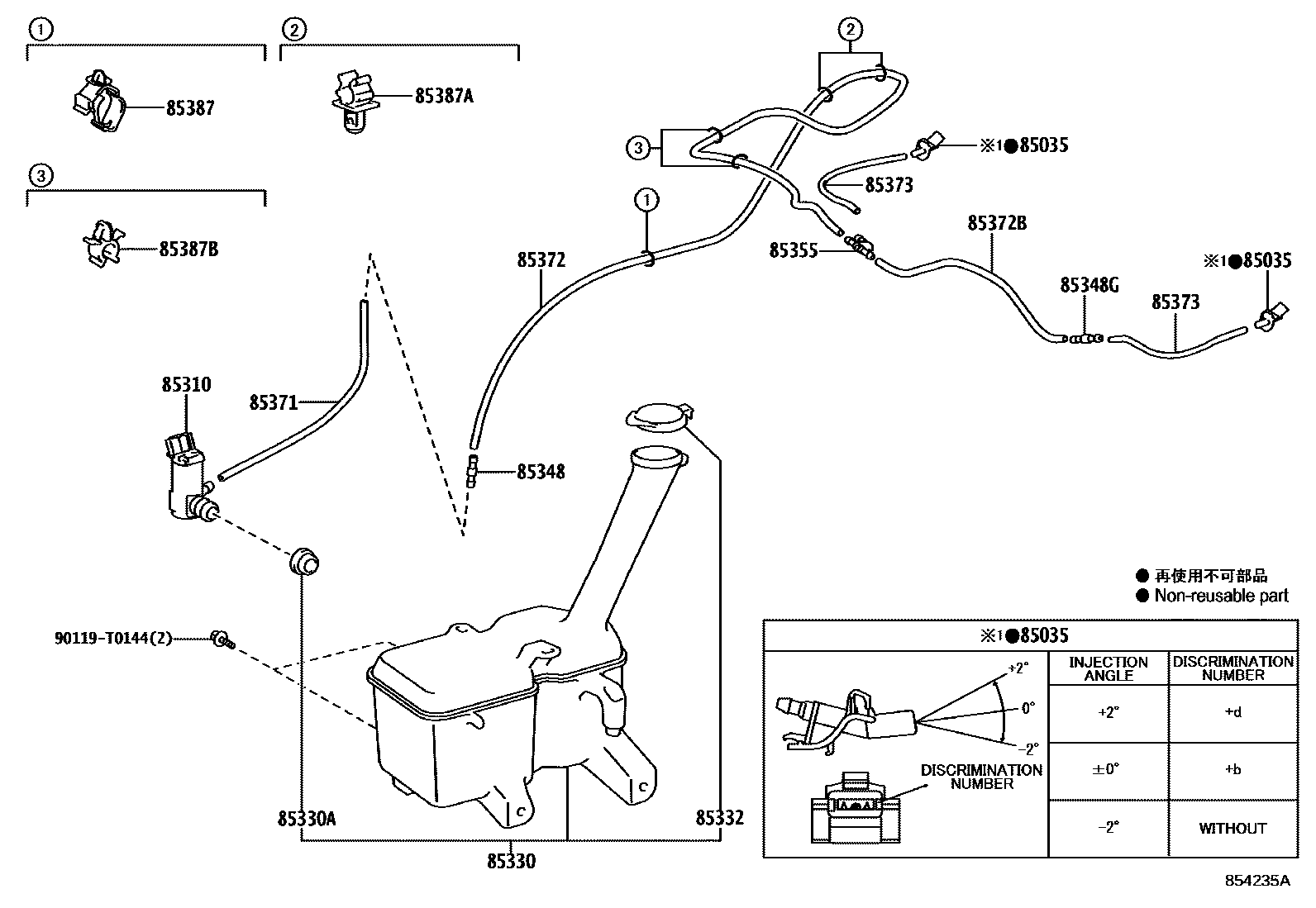

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iNSP150201912-202111

ANGLE 0

sub85381-0K070

main85381-30230iNSP151201912-202111

ANGLE -2

sub85381-0K080

main85381-30240iNSP150201912-202111

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D131iNSP15#201912

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D220iNSP15#201912-202301

sub85315-0D221

main85315-0D221iNSP151202308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNSP151201912-202301

85332CAP, WINDSHIELD WASHER JAR

main85316-02630iNSP15#201912-202301

sub85316-02631

main85316-02631iNSP151202308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02330iNSP150201912-202111

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02330iNSP150201912-202111

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010iNSP151202204

main85321-28020iNSP15#201912-202204

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33207iNSP150201912-202301

L=230

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59167iNSP150201912-202111

L=1620

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59176iNSP150201912-202111

L=300

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33153iNSP151201912-202111

L=180

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100iNSP150202008-202111

main82711-3F230iNSP15#201912-202008

85387ACLAMP, WASHER, NO.2

main85371-52110iNSP150201912-202111

85387BCLAMP, WASHER, NO.3

main90469-T0005iNSP150201912-202111

90119T0144

main90119-T0144

16 parts on this diagram · 1 diagram in section
