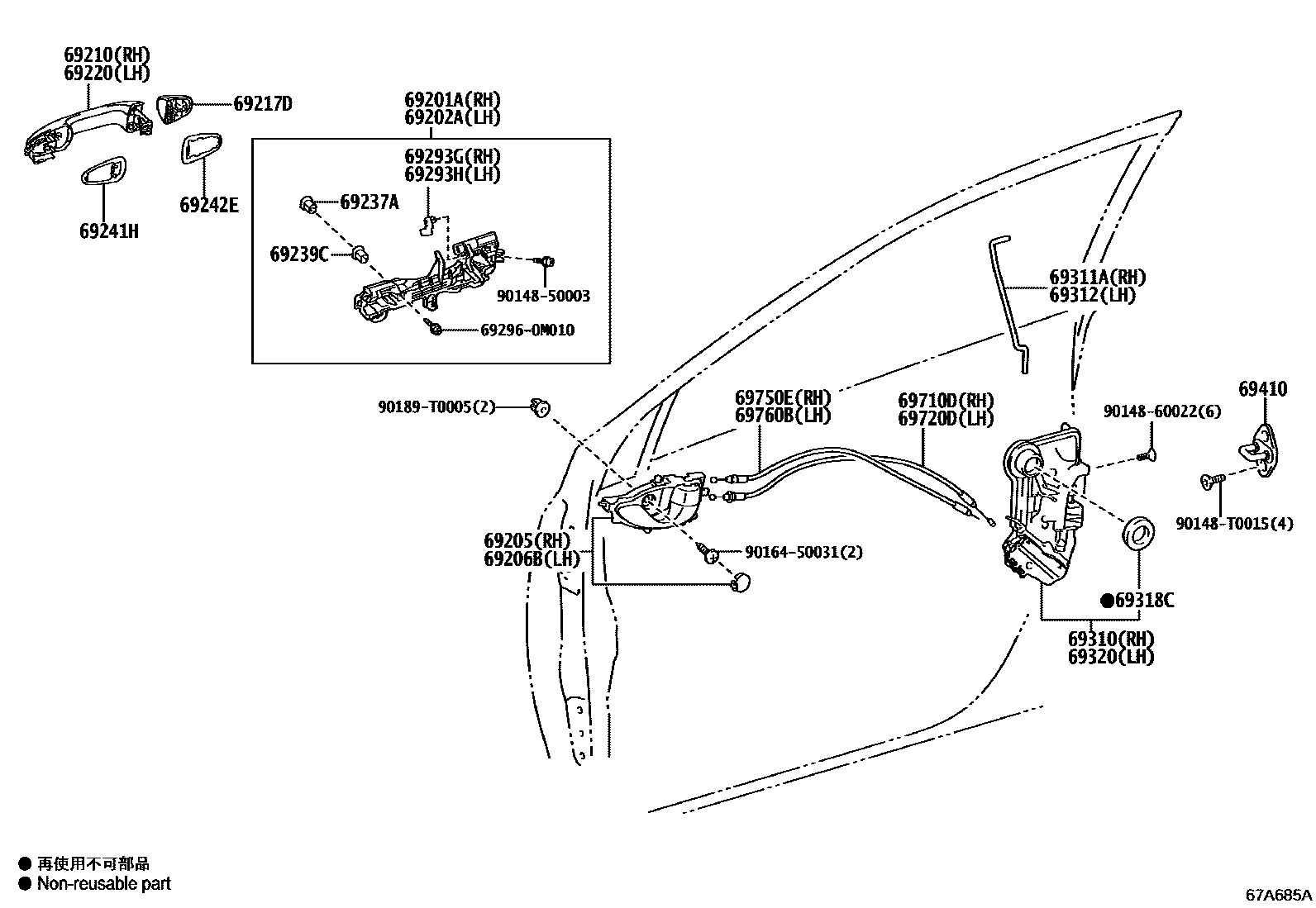

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,GR SPORT
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
LESS COLOR
LESS COLOR,GR SPORT,DRIVER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
NO PAINT REQ.
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
692960M010SCREW, DOOR INSIDE HANDLE
main69296-0M010
9014850003
main90148-50003
9014860022
main90148-60022
90148T0015
main90148-T0015
9016450031
main90164-50031
90189T0005
main90189-T0005
29 parts on this diagram · 1 diagram in section
