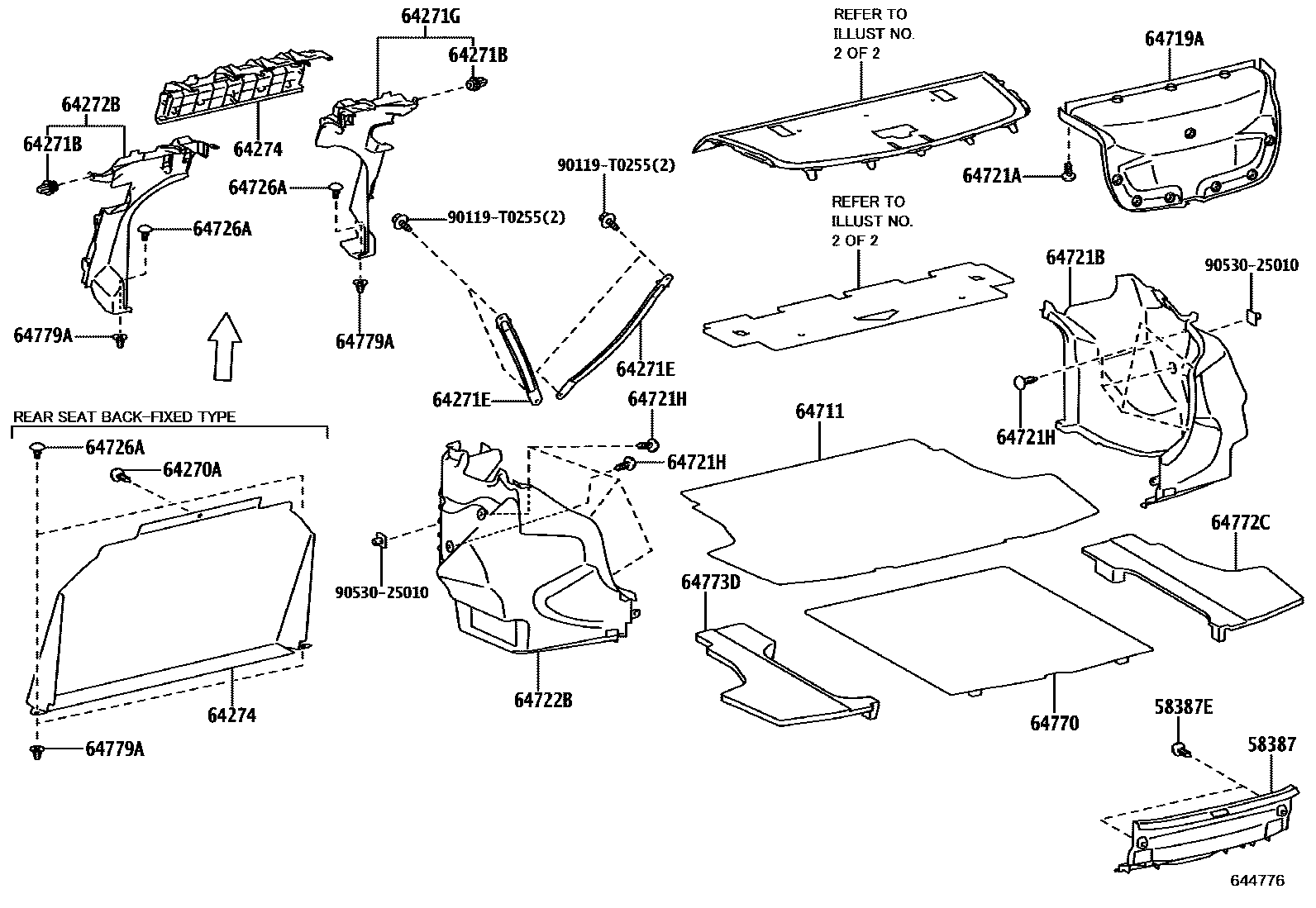

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-0D260iNSP151201912-202111

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iNSP151201912-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP151..G;NSP151..5F202104

BLACK,TRIM0#,2#

main90467-T0045-C0iNSP150202104-202111

BLACK,TRIM2#

main90467-T0045-C0iNSP151..CVT..R202104

BLACK,TRIM0#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-T0045-C0iNSP150202104-202111

BLACK,TRIM2#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-T0021iNSP151201912

64271EPANEL, ROOM PARTITION

main64241-0D130iNSP150201912-202111

64271GBOARD, ROOM PARTITION, RH

main64271-0D060iNSP151201912

64272BBOARD, ROOM PARTITION, LH

main64272-0D050iNSP151201912

64274PAD, ROOM PARTITION TRIM, NO.1

main64275-0D070iNSP151201912-202103

main64275-0D190-C1iNSP150201912-202111

BLACK,TRIM2#

main64275-0D270iNSP151202103

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D330-C1iNSP150201912-202103

BLACK,TRIM2#

main64711-0D340-C1iNSP151201912-202103

BLACK,TRIM0#,2#

main64711-0D500-C0iNSP150202103-202111

BLACK,TRIM2#

main64711-0D510-C0iNSP151202103

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D170-C1iNSP150201912-202111

BLACK,TRIM2#

main64719-0D170-C1iNSP151201912

BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-T0045-C0iNSP150202104-202111

BLACK,TRIM2#

main90467-T0045-C0iNSP151..CVT..R202104

BLACK,TRIM0#

main90467-T0045-C0iNSP151..CVT..R202104

BLACK,TRIM0#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-0D250-C1iNSP150201912-202111

BLACK,TRIM2#

main64721-0D260-C1iNSP151201912

BLACK,TRIM0#,2#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iNSP150201912-202104

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-T0045-C0iNSP150202104-202111

BLACK,TRIM2#

main90467-T0045-C0iNSP151..CVT..R202104

BLACK,TRIM0#

main90467-T0045-C0iNSP151..CVT..R202104

BLACK,TRIM0#,2#

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-0D250-C1iNSP150201912-202111

BLACK,TRIM2#

main64722-0D260-C1iNSP151201912

BLACK,TRIM0#,2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D020iNSP150¥170201912-202111

64770COVER ASSY, SPARE WHEEL

main64770-0D280iNSP15#201912-202103

main64770-0D420iNSP150202103-202111

64772CPAD, SPARE WHEEL COVER

main64772-0D120iNSP150201912-202111

64773DCOVER, SPARE WHEEL, NO.2

main64773-0D060iNSP150201912-202111

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D050iNSP150201912-202111

90119T0255

main90119-T0255

9053025010

main90530-25010¥100

21 parts on this diagram · 2 diagrams in section
