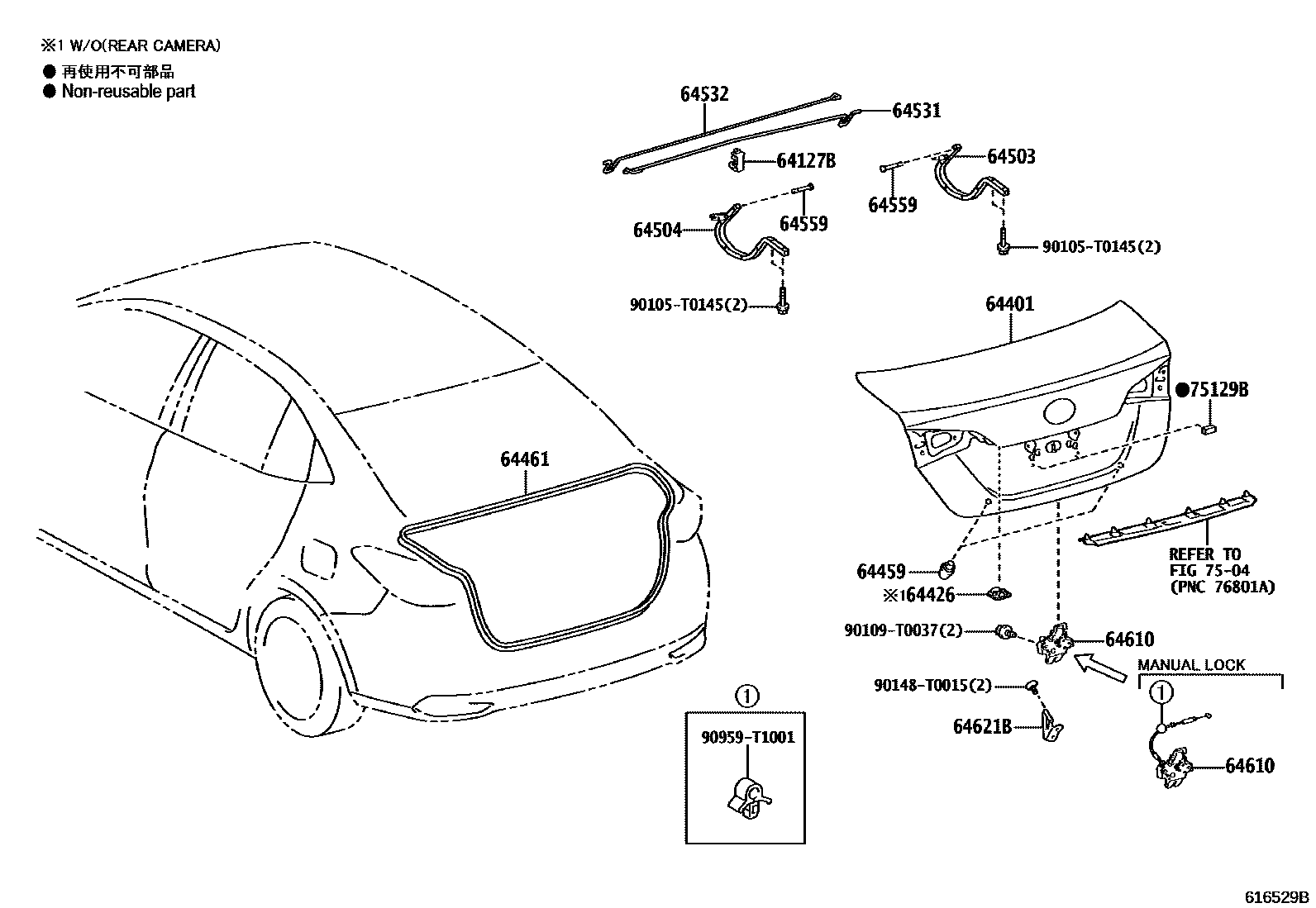

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK CONTROL CAB

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP150201912-202111

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D340iNSP150201912-202111

main64401-0D360iNSP151..G201912-202103

main64401-0D490iNSP151..G202103

main64401-0D500iNSP151..CVT..R201912-202103

main64401-0D660iNSP151..CVT..R202103

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64426-0D010iNSP151..CVT202103

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP150¥170201912-202111

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D180iNSP150201912-202111

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D090iNSP150201912-202111

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D090iNSP151201912-202111

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D300iNSP150201912-202111

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D290iNSP150201912-202111

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP150¥100201912-202111

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D040iNSP151201912

main64610-0D130iNSP150201912-202111

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151201912-202111

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP15#201912-202103

main75129-0D080iNSP150202103-202111

90105T0145

main90105-T0145

90109T0037

main90109-T0037

90148T0015

main90148-T0015

90959T1001

main90959-T1001

18 parts on this diagram · 2 diagrams in section
