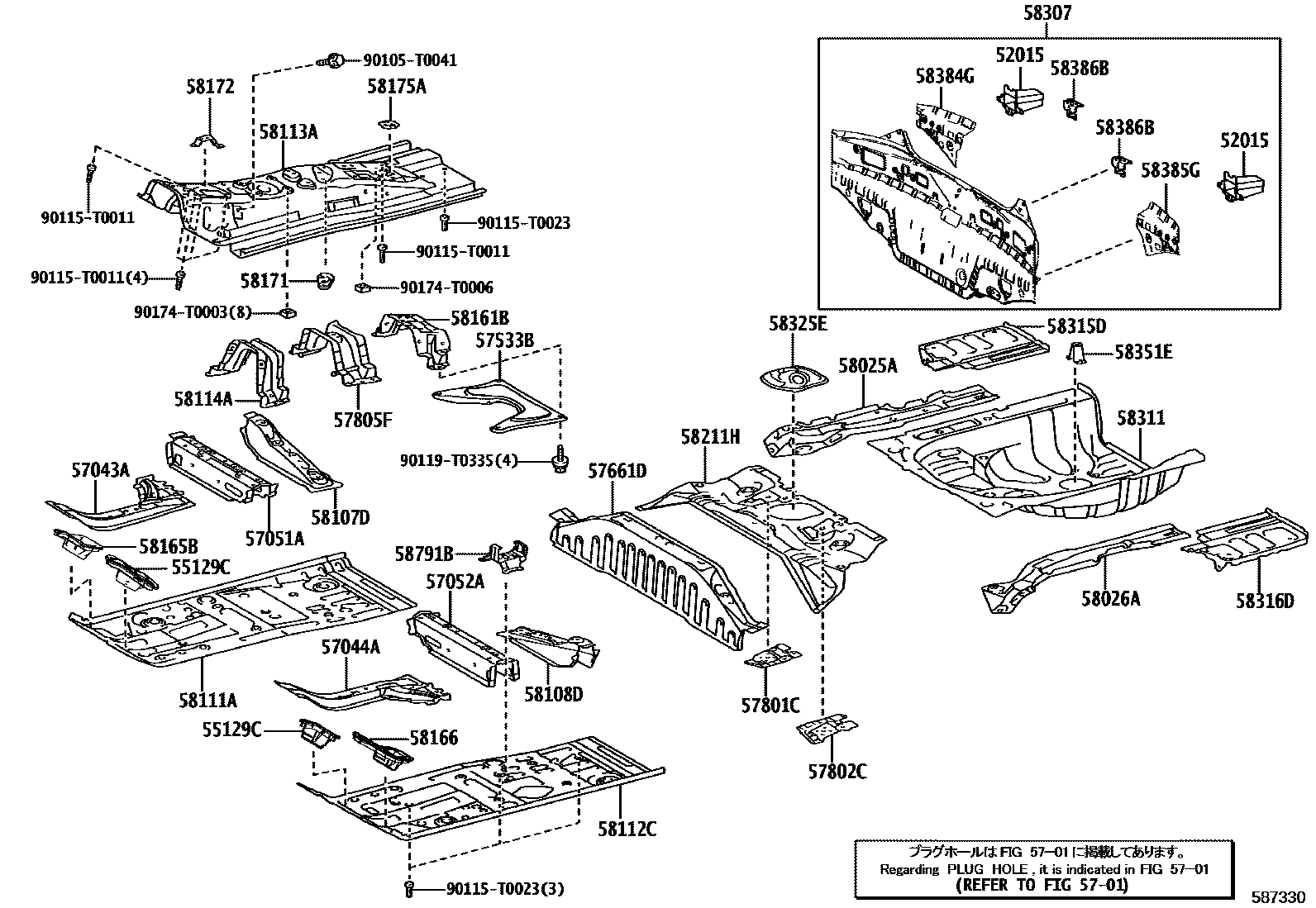

FLOOR PAN & LOWER BACK PANEL

52015ARM SUB-ASSY, REAR BUMPER

main52015-0D130iNSP151201912-202111

55129CCOVER, DASH PANEL HOLE

main55129-0D110iNSP151201912-202111

RH

main55139-0D030iNSP150201912-202111

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D020iNSP150201912-202111

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D050iNSP151201912-202111

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D130iNSP150201912-202111

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D120iNSP150201912-202111

57533BBRACE, FRONT FLOOR, CENTER

main57533-0D140iNSP150201912-202111

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-0D170iNSP150201912-202111

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D180iNSP150201912-202111

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D170iNSP150201912-202111

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0D100iNSP150201912-202111

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D090iNSP150201912-202111

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D130iNSP150201912-202111

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D160iNSP150201912-202111

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D130iNSP150201912-202111

58111APAN, FRONT FLOOR, RH

main58111-52170iNSP150¥18,400201912-202111

58112CPAN, FRONT FLOOR, LH

main58112-52904iNSP150¥12,800201912-202111

sub58112-52921¥11,400

58113APANEL, FRONT FLOOR, CENTER

main58113-52935iNSP151201912-202111

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D060iNSP15#201912-202102

main58114-0D200iNSP150202103-202111

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D100iNSP150201912-202111

58165BCOVER, FRONT FLOOR, RH

main58165-0D010iNSP150201912-202111

58166COVER, FRONT FLOOR, LH

main58166-0D010iNSP150201912-202111

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D120iNSP150201912-202111

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D060iNSP150201912-202111

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNSP150201912-202111

58211HPAN, CENTER FLOOR

main58211-0D160iNSP150201912-202111

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D480iNSP150201912-202111

58311PAN, REAR FLOOR

main58311-0D131iNSP150201912-202111

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D200iNSP150201912-202111

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D230iNSP150201912-202111

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D090iNSP150201912-202111

58351EBRACKET, SPARE WHEEL CLAMP

main58351-0D080iNSP150201912-202111

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D300iNSP150201912-202111

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D230iNSP150201912-202111

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D170iNSP150201912-202111

58791BCARRIER, JACK

main58791-0D070iNSP15#201912-202210

main58791-0D190iNSP151202210

90105T0041

main90105-T0041

90115T0011

main90115-T0011

90115T0023

main90115-T0023

90119T0335

main90119-T0335

90174T0003

main90174-T0003

90174T0006

main90174-T0006

43 parts on this diagram · 1 diagram in section
