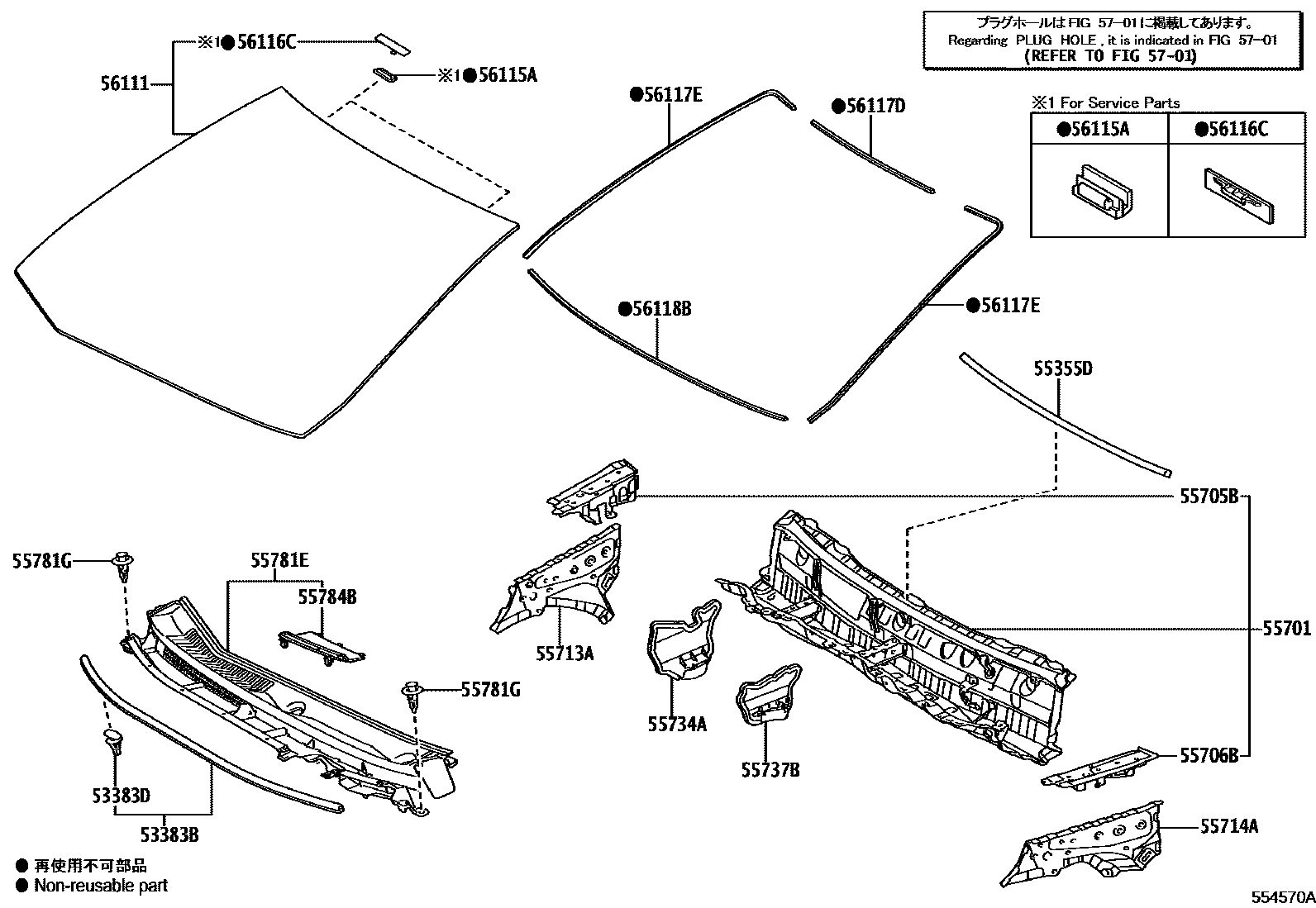

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D150iNSP150201912-202111

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070iNSP150201912-202111

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D480iNSP150201912-202111

55701PANEL SUB-ASSY, COWL

main55700-0D311iNSP150201912-202111

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D120iNSP150201912-202111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D120iNSP150201912-202111

55713APANEL, COWL TOP SIDE, RH

main55713-0D220iNSP150201912-202111

55714APANEL, COWL TOP SIDE, LH

main55714-0D220iNSP150201912-202111

55734APLATE, WATER GUARD, RH

main55734-0D070iNSP150201912-202111

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D180iNSP150201912-202111

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D282iNSP150201912-202111

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNSP150¥120201912-202111

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D080iNSP150201912-202111

56111GLASS, WINDSHIELD

main56101-0D380iNSP150201912-202111

main56101-0D390iNSP151201912-202307

main56101-0DJ10iNSP151202307

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP150¥130201912-202111

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP150¥120201912-202111

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D250iNSP150201912-202111

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D260iNSP150201912-202111

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D270iNSP150201912-202111

L=1182

5701

20 parts on this diagram · 1 diagram in section
