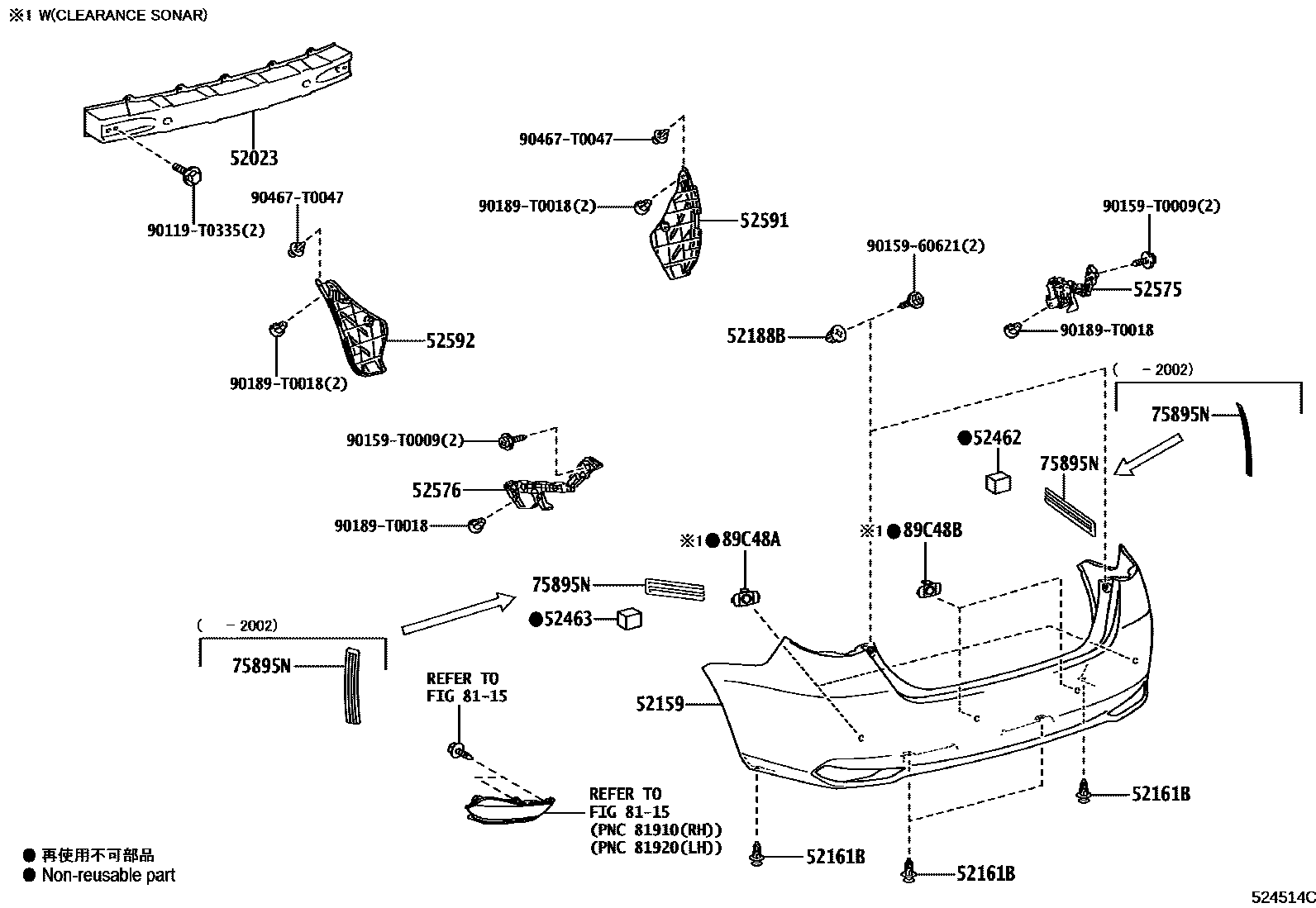

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D140iNSP150201912-202111

52159COVER, REAR BUMPER

main52159-0U930iNSP151..5F;NSP15#..D,G201912-202003

PAINT REQ.

sub52159-0U963

sub75895-0D310

main52159-0U941iNSP151..CVT..R201912-202003

PAINT REQ.

sub52159-0U967

sub75895-0D310

main52159-0U963iNSP151..5F202003-202111

PAINT REQ.

main52159-0U967iNSP151..CVT..R202003

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNSP150¥120201912-202111

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP150¥80201912-202111

52462PAD, REAR BUMPER, RH

main52462-0D020iNSP15#201912-202103

main52462-0D120iNSP150202103-202111

52463PAD, REAR BUMPER, LH

main52462-0D020iNSP15#201912-202103

main52462-0D120iNSP150202103-202111

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D340iNSP151201912-202111

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D330iNSP150201912-202111

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D520iNSP150201912-202111

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D520iNSP151201912-202111

75895NTAPE, MOULDING, NO.1

main75895-28010iNSP15#¥1,260202002-202003

main75895-53010iNSP150¥790201912-202111

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0D030iNSP151..G201912

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0D030iNSP151..CVT201912

90119T0335

main90119-T0335

9015960621

main90159-60621¥60

90159T0009

main90159-T0009

90189T0018

main90189-T0018

90467T0047

main90467-T0047

19 parts on this diagram · 1 diagram in section
