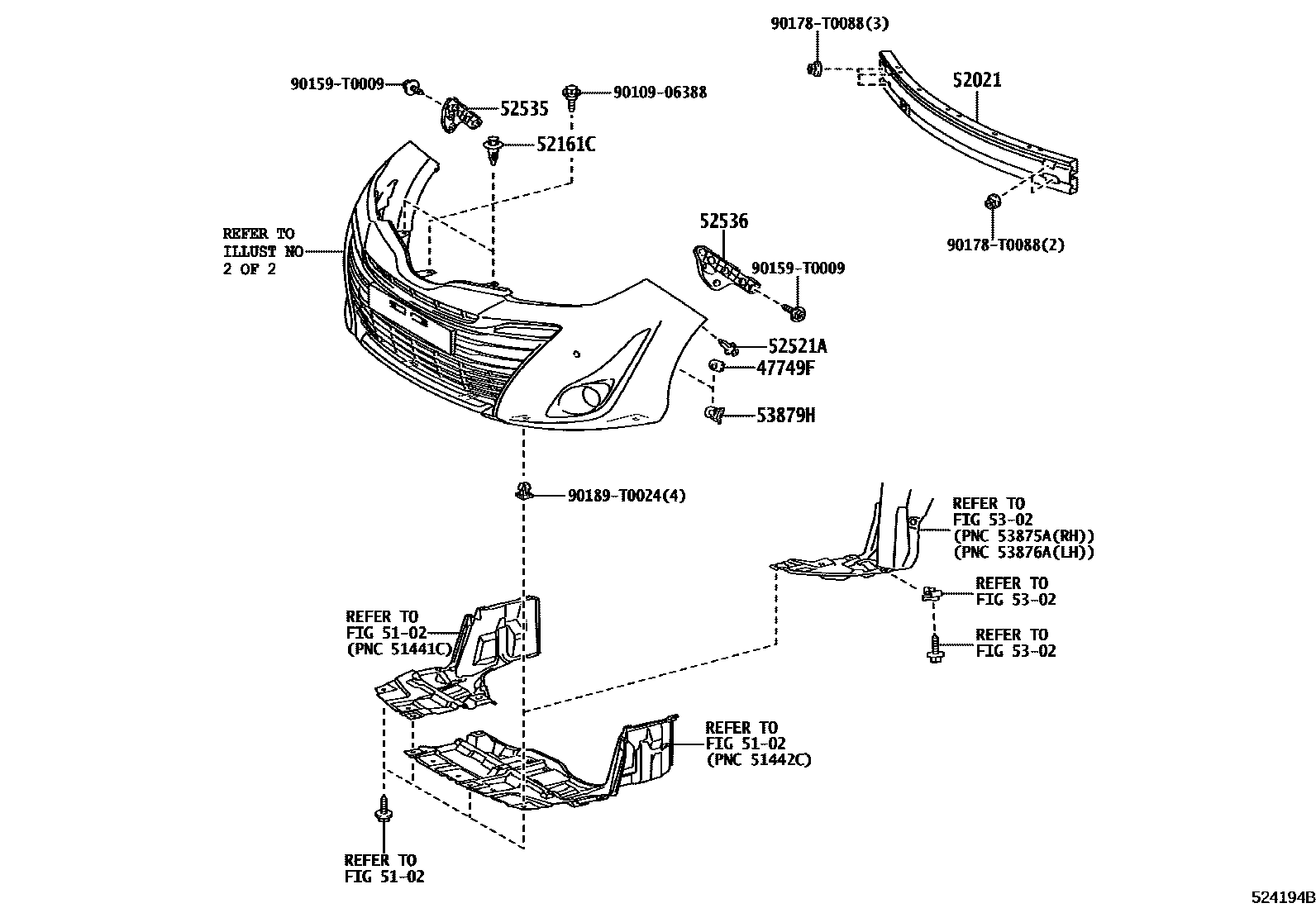

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1MLM PACKAGE

47749FCLIP, PIN HOLD

main47749-33030iNSP15#201912

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D140iNSP15#201912

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP15#201912

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP151201912-202111

main90467-T0047iNSP151202104

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D230iNSP15#201912-202103

MLM PACKAGE

main52535-0D330iNSP15#202103

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D230iNSP15#201912-202103

MLM PACKAGE

main52536-0D330iNSP15#202103

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iNSP15#201912

9010906388

main90109-06388

90159T0009

main90159-T0009

90178T0088

main90178-T0088

90189T0024

main90189-T0024

13 parts on this diagram · 3 diagrams in section
