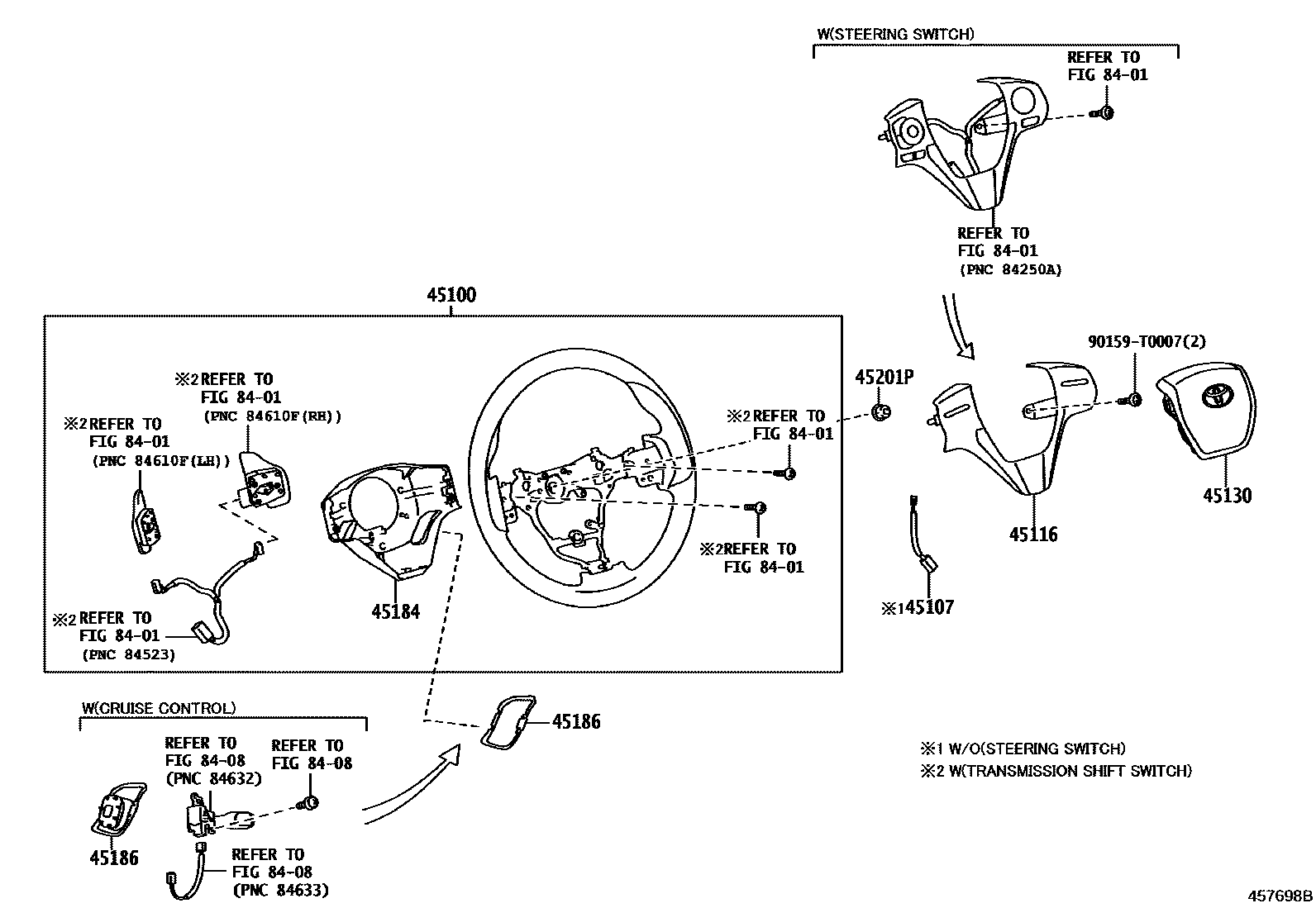

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM0#
3-SPOKE,URETHANE,BLACK,TRIM0#,2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#
sub45100-0D731
3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#
3-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK & BLACK,TRIM0#
45107WIRE SUB-ASSY, HORN BUTTON
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM0#,2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
45201PNUT, STEERING WHEEL SET
8401
8408
90159T0007
main90159-T0007
10 parts on this diagram · 1 diagram in section
