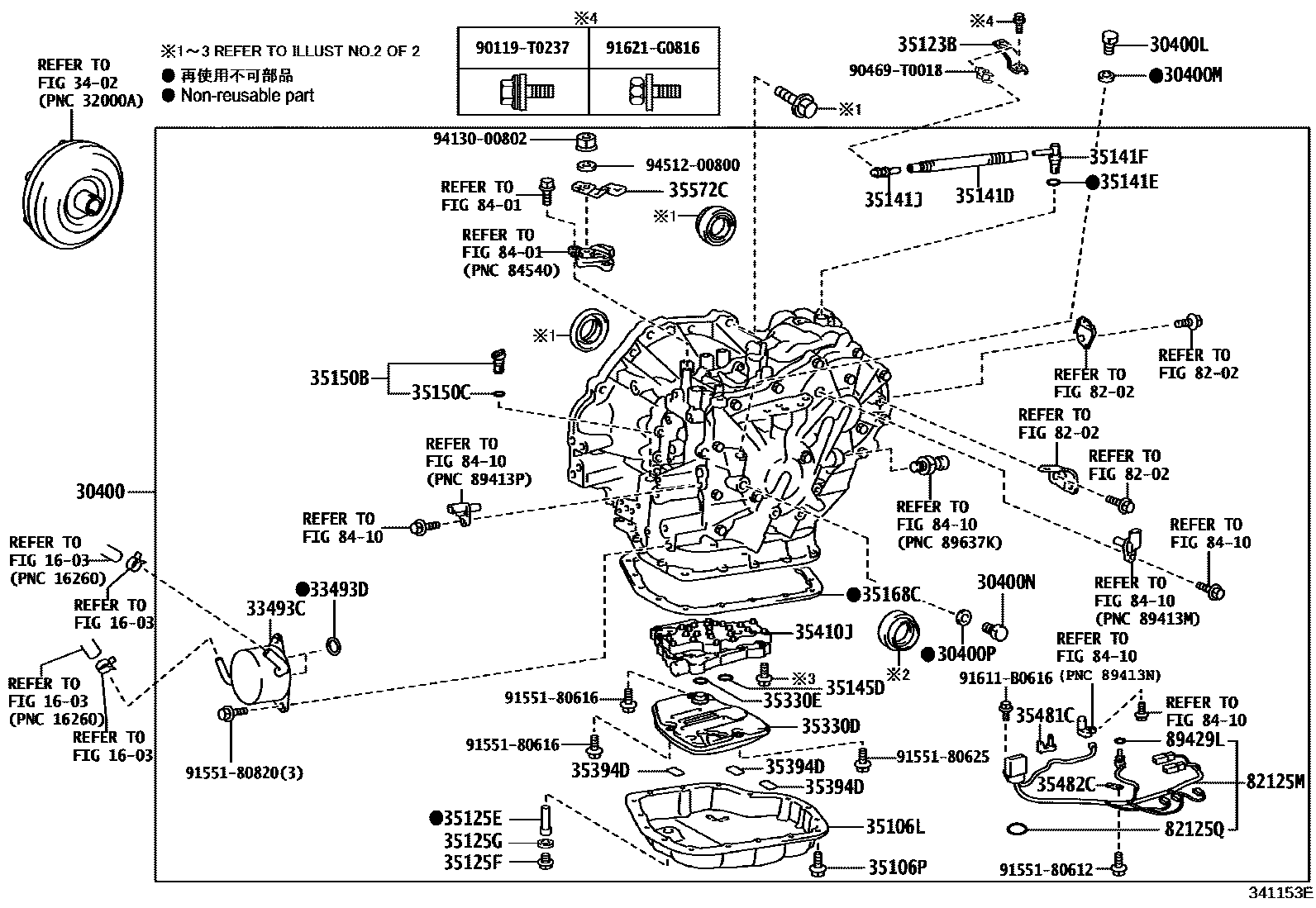

TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K312
30400LPLUG , FILLER(CVT)
30400MGASKET, FILLER PLUG(CVT)
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35123BSKIRT,TRANSMISSION BREATHER
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35145DGASKET, TRANSAXLE CASE
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35410JBODY ASSY, TRANSMISSION VALVE
35481CCLAMP, VALVE BODY WIRE HARNESS
35482CCLAMP, TEMPERATURE SENSOR
35572CLEVER, TRANSMISSION CONTROL SHAFT
8202
82125MWIRE, TRANSMISSION
82125QRING, O(FOR TRANSMISSION WIRE)
8401
8410
89429LRING, O(FOR OIL TEMPERATURE SENSOR)
90119T0237
main90119-T0237
90469T0018
main90469-T0018
9155180612
9155180616
9155180625
9155180820
91611B0616
91621G0816
9413000802
9451200800
46 parts on this diagram · 2 diagrams in section
