SHIFT LEVER & RETAINER
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#
BLACK,TRIM0#,2#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33820BCABLE ASSY, TRANSMISSION CONTROL
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=28
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119T0054
90119T0333
main90119-T0333
9017906178
90182T0026
9046814016
9046814029
9046814039
9413060800
9453100800

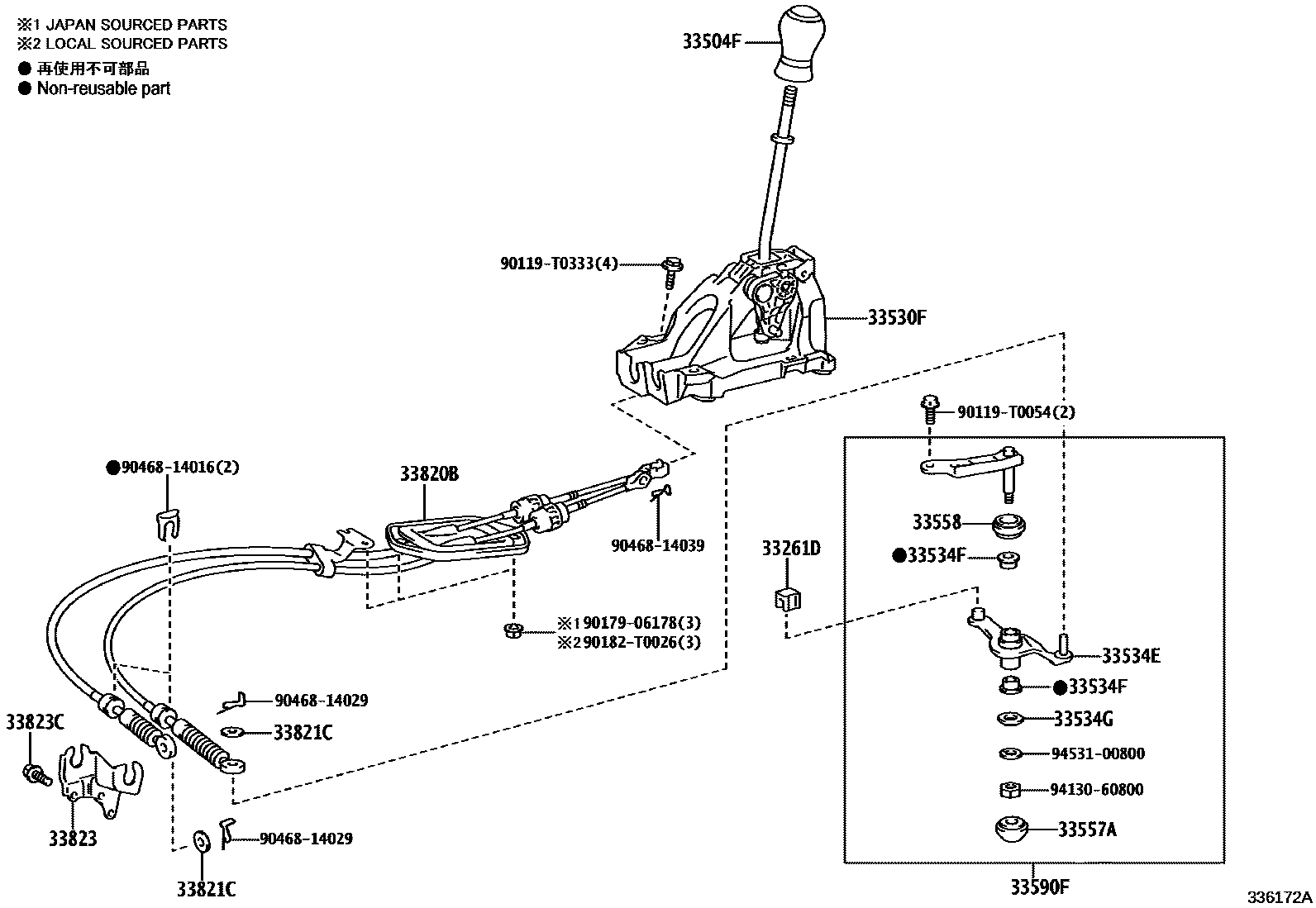

22 parts on this diagram · 2 diagrams in section
