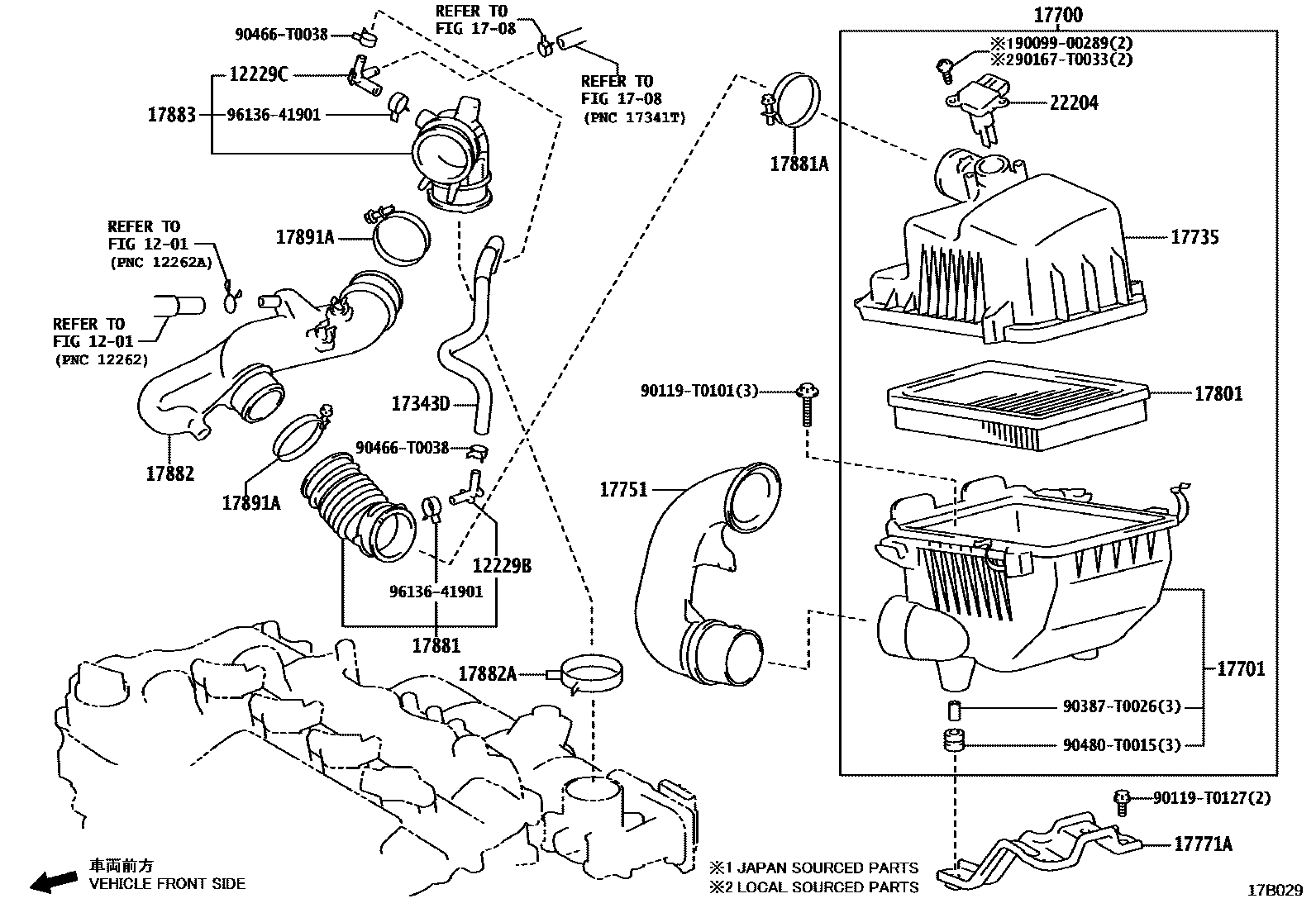

AIR CLEANER

0001 1 0002 1

1201

12229BPIPE, VENTILATION, NO.1

main12229-0Y100i2NRFE..NSP151..CVT201912

12229CPIPE, VENTILATION, NO.2

main12229-0Y150i2NRFE..NSP151..CVT201912

1708

17343DHOSE, AIR, NO.3

main17343-0Y011i2NRFE..NSP151..CVT201912

17700CLEANER ASSY, AIR

main17700-0Y190i1NRFE..NSP150201912-202111

17701CASE SUB-ASSY, AIR CLEANER

main17701-0M070i1NRFE..NSP150201912-202111

17735CAP, AIR CLEANER

main17735-0Y140i1NRFE..NSP150201912-202111

17751INLET, AIR CLEANER, NO.1

main17751-0Y261i1NRFE..NSP150201912-202111

17771ABRACKET, AIR CLEANER

main17771-0Y080i1NRFE..NSP150201912-202111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0Y040i1NRFE..NSP150201912-202111

17881HOSE, AIR CLEANER, NO.1

main17881-0Y160i1NRFE..NSP150201912-202111

main17881-0Y240i2NRFE..NSP151..CVT201912

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NRFE..NSP150201912-202111

17882HOSE, AIR CLEANER, NO.2

main17882-0Y130i1NRFE..NSP150201912-202111

main17882-0Y140i2NRFE..NSP151..CVT201912

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1NRFE..NSP150201912-202111

17883HOSE, AIR CLEANER, NO.3

main17883-0Y031i1NRFE..NSP150201912-202111

main17883-0Y041i2NRFE..NSP151..CVT201912

17891ACLAMP, AIR CLEANER HOSE

main96111-10730i1NRFE..NSP150201912-202111

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V020i1NRFE..NSP150201912-202111

9009900289

main90099-00289

90119T0101

main90119-T0101

90119T0127

main90119-T0127

90167T0033

main90167-T0033

90387T0026

main90387-T0026

90466T0038

main90466-T0038

90480T0015

main90480-T0015

9613641901

main96136-41901

26 parts on this diagram · 2 diagrams in section
