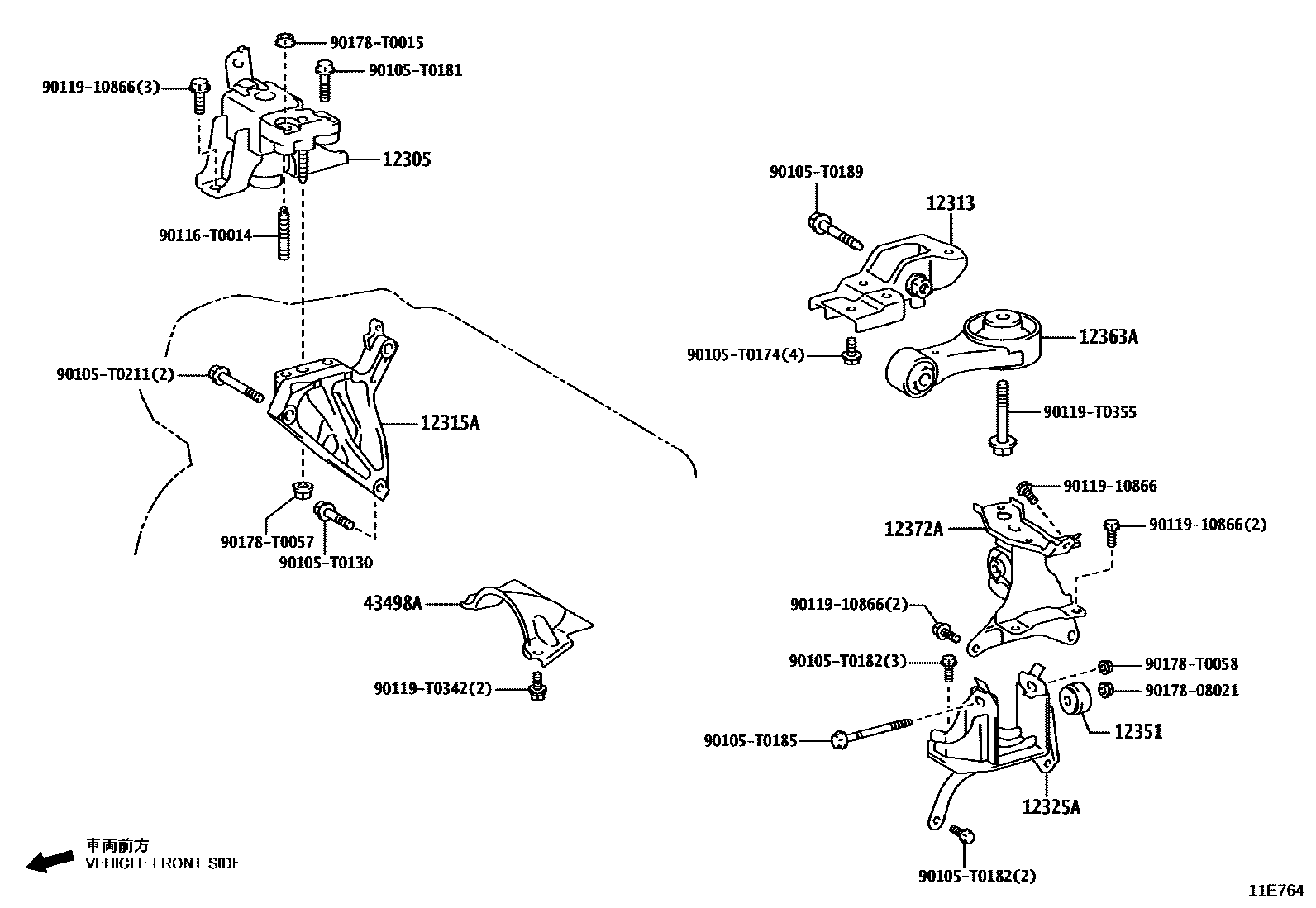

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y110i1NRFE..NSP150201912-202111

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0M010i1NRFE..NSP150201912-202111

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0Y010i1NRFE..NSP150201912-202111

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0Y311i1NRFE..NSP150201912-202111

main12325-0Y410i2NRFE..NSP151..CVT201912

12351DAMPER, ENGINE MOUNTING

main12351-0Y120i1NRFE..NSP150201912-202111

12363AROD, ENGINE MOVING CONTROL

main12363-0M080i1NRFE..NSP150201912-202111

main12363-0Y200i2NRFE..NSP151..CVT201912

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Y251i1NRFE..NSP150201912-202111

main12372-0Y350i2NRFE..NSP151..CVT201912

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-52130iNSP150201912-202111

90105T0130

main90105-T0130

90105T0174

main90105-T0174

90105T0181

main90105-T0181

90105T0182

main90105-T0182

90105T0185

main90105-T0185

90105T0189

main90105-T0189

90105T0211

main90105-T0211

90116T0014

main90116-T0014

9011910866

main90119-10866

90119T0342

main90119-T0342

90119T0355

main90119-T0355

9017808021

main90178-08021

90178T0015

main90178-T0015

90178T0057

main90178-T0057

90178T0058

main90178-T0058

23 parts on this diagram · 2 diagrams in section
